Manufacturers gigabit 10 port switch 10/100/1000Mbps waterproof outdoor network ethernet switches with PoE

Click here to contact

Product details

MAC address:	2K;	Packaging Detail:	packing: neutral carton box Package Size: 50cm x 30cm x 5cm (19.69in x 11.81in x 1.97in);
Payment Terms:	L/C,T/T,Western Union,Paypal;	Place of Origin:	Guangdong China;
Switch Capacity:	9.2Gbps;	Function:	POE,VLAN Support;
Item Type:	8 port poe switch;	PoE Ports:	1-8Port Support PoE;
Product Name:	waterproof ethernet switch;	Communication Mode:	Full-Duplex & Half-Duplex;
Products Status:	Stock;	Supply Ability:	50000 Piece/Pieces per Month;
Transmission Rate:	10/100/1000Mbps;	Certification:	CE ROHS;
Port:	shenzhen port;	Power:	130W;
Dimensions (W x D x H):	306263104mm;	Keywords:	fiber switch;
Connector Type:	2x10/100/1000Mbps RJ45 Ports;	Fixed Port:	2*Gigabit uplink Ports;
Model Number:	GNT-P4804F3-1;	Ports:	10;
Brand Name:	Genata;	Warranty:	12 Months;

Product Description

specifications:

1.Using CAT.5 network patch cords support power for the wireless AP and IP camera

2.Networking standard: IEEE802.3af/t

3.Long distance transmission and power supply, maximum transmission distance is130m

4.Upload port automatic flip (Auto MDI / MDIX)

5.Network performance: Store-and-forward

6.Intelligent power distribution and secure power supply system

7.Power circuit protection function can protect environment

8.Professional thunder design, Overtemperature protection , short circuit protection ,high reliability, high stability.

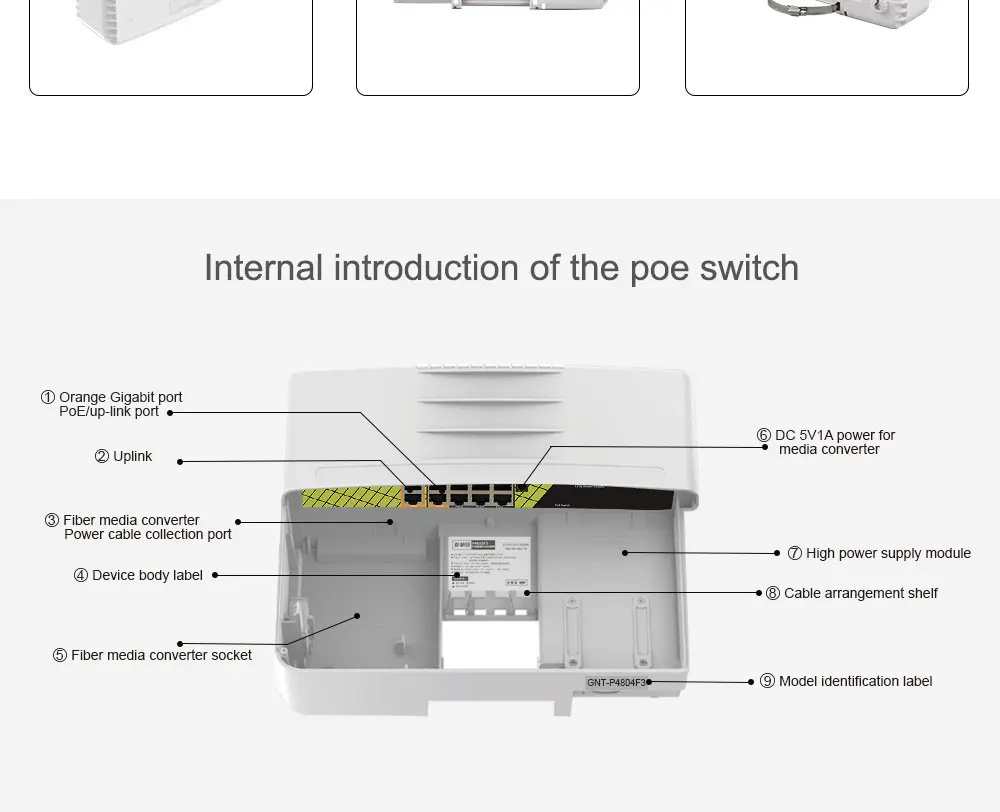

Network port	POE(1-8)/UP-LINK(9-10) and LAN port, Orange port is Gigabit port
Transmission Rate	1000Mbps Full Duplex; 10 or 1000Mbps Half Duplex
Transmission Rate	Network Interface: 10BASE-T or 1000BASE-TX RJ45 port of Ethernet
Performance & Specification	Bandwidth: 9.2 Gbps
	Network Latency(10 to 1000Mbps): 20μs (use the 64 byte packge size)
	MAC address table: 2K
	The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 1488000pps the most for 1000M port
Networking Standard	IEEE 802.3i 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3xFlowControl
	IEEE 802.3af/at Powerover Ethernet
PoE Core Of Power Cable	Default: 1/2(+), 3/6(-); (Can Be Selected 4/5(+), 7/8(-)) ;
PWR Light	PWR Light no extinguish
Power Support	Power input: AC 110~240V 120W output:PoE1~8Port1/2(+52V),3/6(GND) Power output: DC 5525 5V1A
Physical Specifications	Size(LWH) 430mm180mm45mm
Working Environment	Operating Temperature: -10℃ ~40℃ ( -14°~104℉)
	Storage Temperature: -40℃ ~70℃ ( -104°~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
Electromagnetic Compatibility	CE mark
	FCCPart15,Class B
	VCCI ClassBEN55022 (CISPR 22)
	C-Tick
Warranthy	Whole machine: 2 year
Package Content	AC Power Cable,Installation Manual Warranthy Card
