CREE CXB3590, 3500K DB 36V 80CRI, CXB3590-0000-000N0HDB35G

Product details
Package Type:Surface Mount;Model Number:XLamp CXB3590;
Package Type:Cree Original Packing;Color:3500K;
Gross weight per batch:0.5 KG;Brand Name:Cree;
Type:LED;Bin:CD, DB;
Selling Units:Multiple of 10;Place of Origin:Guangdong China;
Voltage:36V;Package size per batch:20X20X20 cm;

CREE CXB3590, 3500K DB 36V 80CRI, CXB3590-0000-000N0HDB35G









Second Generation of CXA LED Arrays



The XLamp CXB3590 LED Array is the brightest member of the second generation of the CXA family that delivers up to 33% higher efficacy than the first generation in the same LES. The higher performance CXA2 LED Arrays allow lighting manufacturers to achieve the same or better performance with a smaller LES, enabling a radical reduction in system size and cost. CXA2 LED Arrays share the same physical design as the previous generation, allowing lighting manufacturers to leverage the existing optical, mechanical and electrical design elements to accelerate time to market without additional cost.



Size34.85 x 34.85 mm
Product Options36-V
72-V
High-CRI
Maximum Drive Current3.6A (36V)
1.8A (72V)
Maximum Power137 W
Light Output Range6550 - 18000 lm
Light Emitting Surface (LES)30 mm
Typical Forward Voltage36 V @ 2400 mA (36V) (85°C)
72 V @ 1200 mA (72V) (85°C)
Viewing Angle115 °
Binning85°C
2- 3- and 5-Step Easy White®
RoHS CompliantYes
REACH compliantYes
UL recognizedYes - Level 4 Enclosure Consideration



Flux Characteristics, EasyWhite® Order Codes and Bins - 36V (If = 2400 mA, TJ = 85 °C):

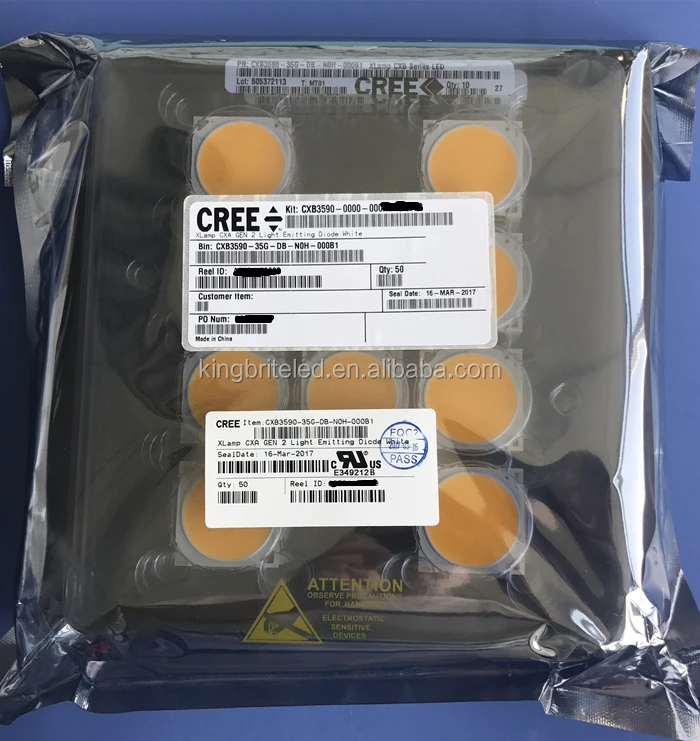

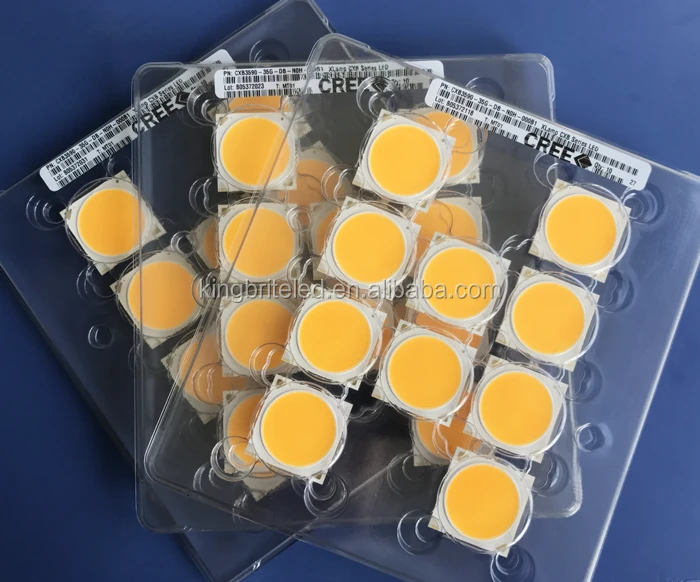

Original packing:
