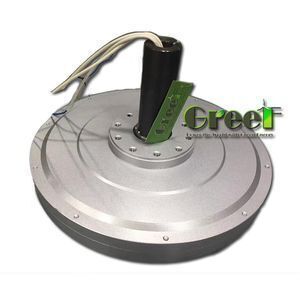

10KW 100RPM Low RPM Low Torque Low Weight Coreless Permanent Magnet Wind Generator, axial flux coreless generator

Supplier: Qingdao Greef New Energy Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Christina Lei
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Generator Material:	Aluminum alloy;	Warranty:	3 Years;
Packaging Detail:	Plywooden Case;	Rated speed:	100rpm;
Model Number:	GDG Series;	Rated power:	10kW;
Place of Origin:	China;	Start torque:	<0.1 N/M;
Brand Name:	GreeF;	Magnet Type:	NdFeB;
Bearing brand:	NSK;	Payment Terms:	T/T,Western Union,MoneyGram,Alibaba Trade Assurance;
Structure:	Outer Rotor;	Port:	Qingdao port;
Phase type:	3 Phase AC Permanent-magnet;	Supply Ability:	200 Set/Sets per Month;

10KW 100rpm Disc Coreless Permanent Magnet Generator

The magnetic generators are always being used in vertical axis wind turbine generator, diesel gasoline generator, hydroelectric generator (water-power generator) and other generator system which requests very low start torque and low RPM.

Product Description

GDG-10KW-100RPM PMG Parameters:

Model	GDG-770
Rated Power	10KW
Rated Rotate Speed	100RPM
Option Rated Voltage	220-400Vac
Efficiency	>85%
Wending Method	Y
Leakage Level	<5 ma
Start Torque	<0.1 N/M
Phase Type	3 Phase
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator shell material	Aluminum alloy
Shaft material	Carbon steel
Bearing	NSK Deep groove ball bearing

Product Advantages

1	Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M
2	Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3	Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4	Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5	Gearless, direct drive, low RPM generator.
6	High standard, quality components for use in harsh and extreme environments for wind turbines
7	High efficiency and Low mechanical resistance energy loss
8	Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.

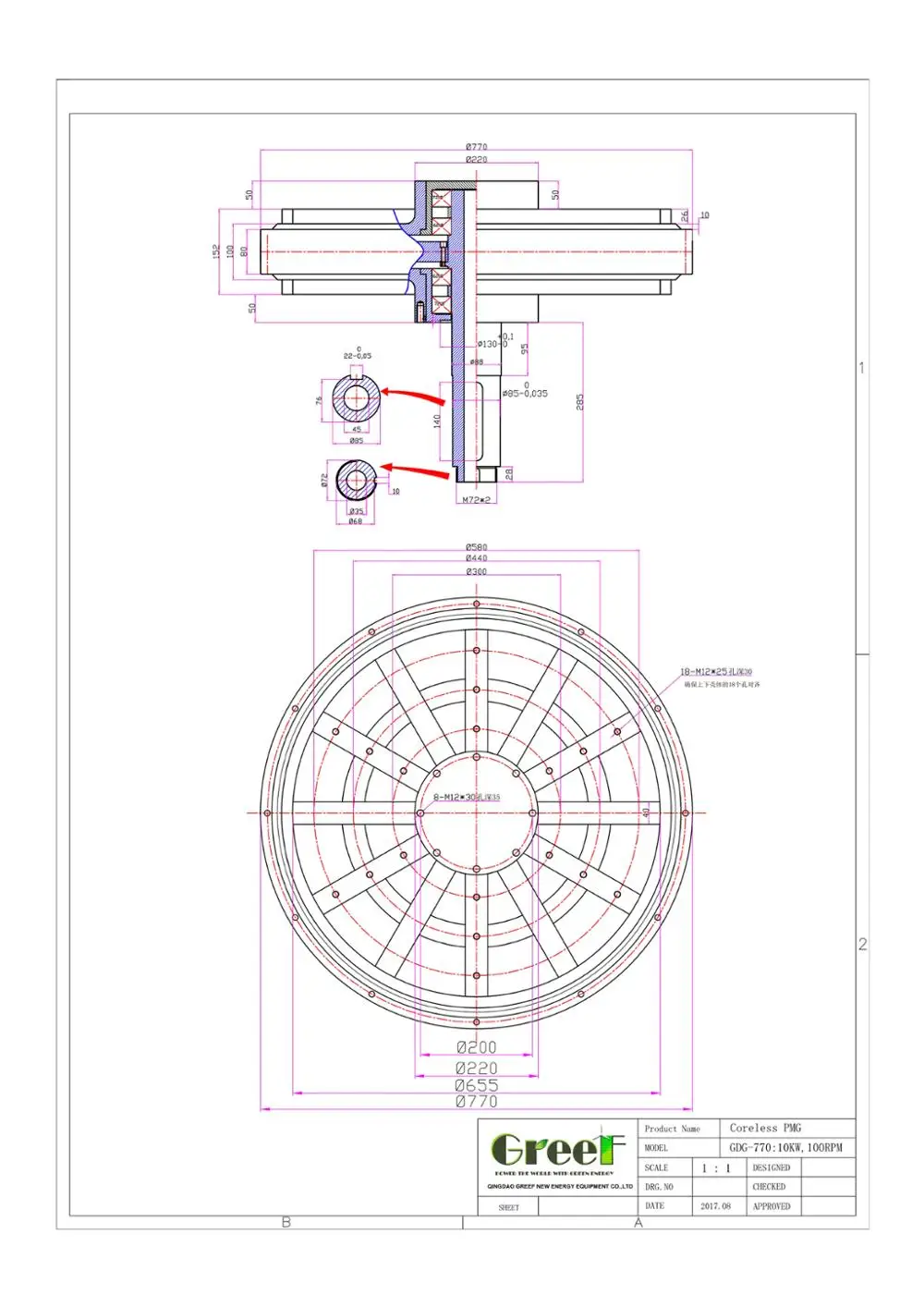

Detailed Images

Packaging & Shipping

1. Generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales,

we will do according to your request.

Our Services

Generators are free 3 years warranty, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
