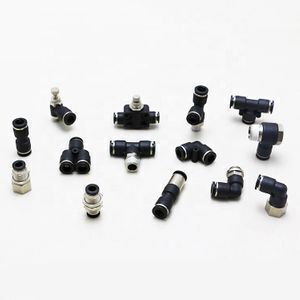

BSP Thread Black Push-in Fittings Pneumatic Machine Products Plastic Pneumatic Tube Fittings

Supplier: Yueqing Right Pneumatic Co., Ltd.
Region: Zhejiang, China
Contact: Mr ICE Bao
Price: $0.10 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Local Service Location:	None;	Port:	Shanghai or Ningbo;
Place of Origin:	China;	Thread:	BSPP BSPT;
Condition:	New;	Application:	Connect Pipes;
Temperature:	0 to 60°C;	Color:	Black;
After Warranty Service:	Video technical support,Online support;	Medium:	Air - Water - Vacuum;
Material:	Plastic + Brass Nickel Plating;	Tube Size:	4/6/8/10/12mm;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Advertising Company;	Working Pressure:	0.1~1Mpa;
Packaging Detail:	Pneumatic Connector Quick Fittings, Air Hose Connectors, Pneumatic Tube Fittings; Poly bag+strong bag,or depends on your demand.;	Supply Ability:	100000 Piece/Pieces per Week Pneumatic connector quick fittings;
Material:	Strong Bag;	Brand Name:	RIH;
Product name:	Pneumatic tube fittings;	Thread Size:	1/8'', 1/4'', 3/8'', 1/2'';
Showroom Location:	None;	Type:	Fittings;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;

BSP Thread Black Push-in Fittings Pneumatic Machine Products Plastic Pneumatic Tube Fittings

Product Description

Model:

Thread Fittings	Tube Fittings	For example:PC 8-- 01 (G) (1) (2) (3) (4)
PC	PU	(1)Model: PC
PCF	PV	(2) Tube OD
PL	PE	Metric: 4/6/8/10/12/14/16mm
PLF	PY	(3)Thread Size
PB	PM	English: 01:1/8'' 02:1/4'' 03:3/8'' 04:1/2''
PD	PZA	(4)Inch thread form:
PX	PK	Default: G (PF,BSPP)
SL	LS
PH	HVFF	For example:PU -- 6 (1) (2)
		(1)Model: PU
		(2) Tube OD
		Metric: 4/6/8/10/12/14/16mm

Specifications:

Type	Pneumatic air hose fittings/ One touch hose connector/ Pneumatic fittings
Operating Pressure	0-1.0MPa \| 0-150psi
Operating Temperature	0 - 60 °C
Male Thread Size	1/8" BSP thread---------Thread Outside Diameter: 9.728mm 1/4" BSP thread---------Thread Outside Diameter: 13.157mm 3/8" BSP thread---------Thread Outside Diameter: 16.662mm 1/2" BSP thread---------Thread Outside Diameter: 20.955mm 3/4" BSP thread---------Thread Outside Diameter: 26.441mm 1" BSP thread-----------Thread Outside Diameter: 33.249mm
Apply For	4/6/8/10/12/14/16mm tube/hose
Applicable Tube	PU / PA / PE / PVC
Features	1. Designed for Polyurethane or Nylon tubing. 2. Simple installation pneumatic push in connector. 3. After installation, the direction of the tube can be changed freely. 4. Elliptical release ring help to connect tube easily by manual, no special tools required. 5. Outside (and Inside where applicable) hexagonal wrench tightening. 6. This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.
Note	1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. 2.Pay attention to the column of size and color, you could find a variety of product types and quantities for your choice,the more your purchase the best price you get. Thank you!

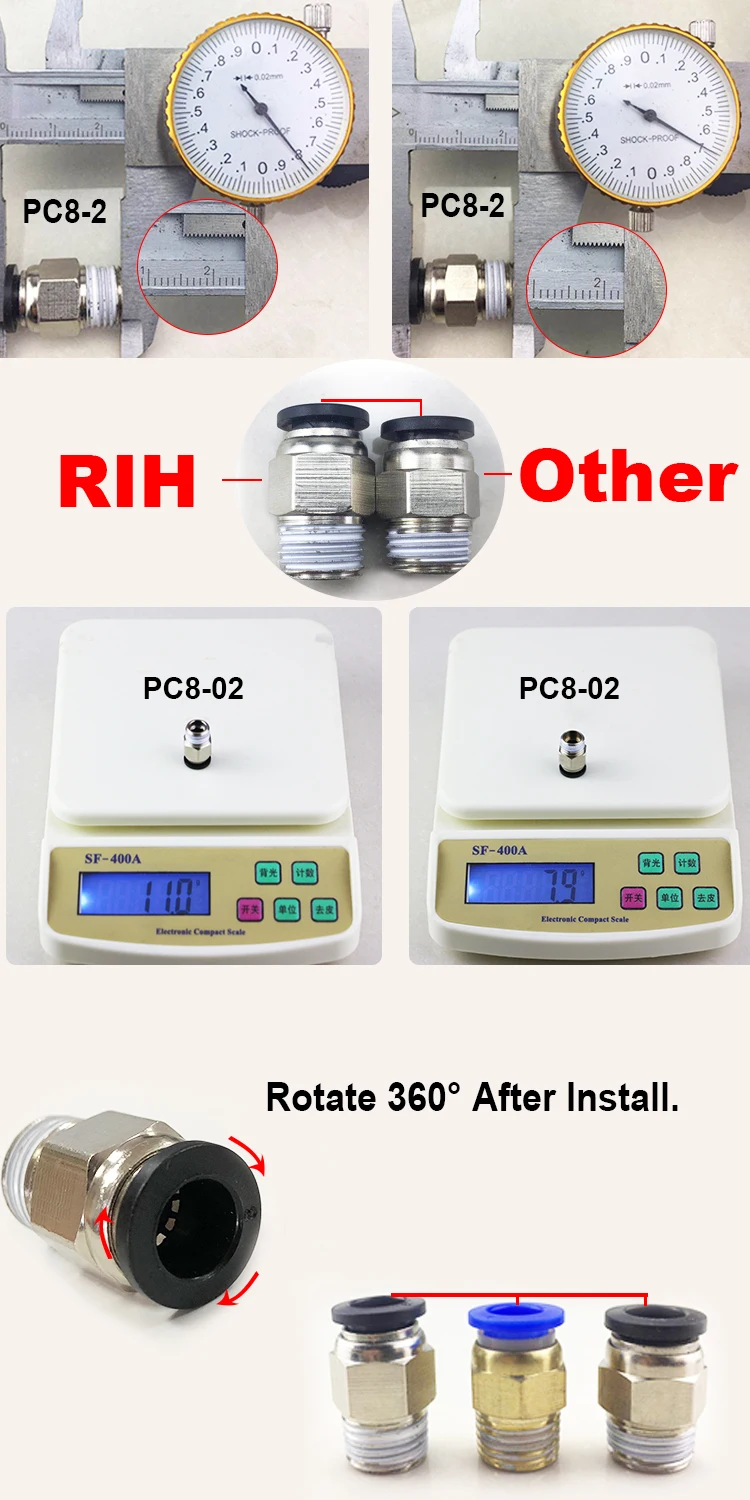

Compare & Advantage

PRODUCT
CATEGORIES

Pneumatic Cylinders

Standard Cylinder

Mini Cylinder

Finger Cylinder

Pneumatic Actuator

Pressure Switch

Pneumatic Hose

Pressure gauge

→ VIEW ALL

Solenoid Valve

2/2 Way Brass Solenoid Valve

Pneumatic Fitti

FAQ

Q1: Are factory or trading company?

A1:We are the leading manufacturer of pneumatic products who have 13 years experience. Welcome to visit our factory

at any time.

Q2:Can I get sample?

A2:Yes,We can offer free sample but express charge by your side. In a word, each of your needs are of most valuable

matter for us.

Q3:Do you accept OEM business?

A3:Yes.We do.

Q4:What’s the payment term?

A4: T/T,Western Union,Paypal are applicable for us.

Q5: How about the warranty?

A5: 12 months under normally used.

Q6. What’s the delivery time ?

A6.. Normal model 2-5days,because we have ability to do the stock.For big order,it takes about 10-15days.

Q7: How does your factory dothe quality control?
A7: Quality is important,we always attach importance to quality control from the beginning to the end of the prodution.

Each product will be fully assembled and carefully tested before packing and shipping.
