Thread Rolling Rod Threaded Roller Bar Parallel Rebar Threading Machine

Supplier: Hengshui Anda Machinery And Equipment Co., Ltd.
Region: Hebei, China
Contact: Mr Cui Jerry
Price: $1100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Type:	Packing in special wooden cases for export;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
Max Thread Length:	90mm;	Power(W):	5.5Kv;
Certification:	Ce;	Package Preview:	https://sc01.alicdn.com/kf/H2e275e499d65419b9fde27bab05b3f32c.jpg_640x640.jpg;
Product name:	Thread Rolling Machine;	Model:	D40mm Rebar;
Application:	Construction works;	Type:	Semi-automatic;
Selling Units:	Single item;	After-sales Service Provided:	Free spare parts,Video technical support,Online support;
Package:	Wooden Case;	Weight:	450Kg;
Brand Name:	Anda;	Place of Origin:	China;
Single package size:	150X1140X70 cm;	Production Capacity:	100%;
Spindle speed:	1:19;	Dimension(LWH):	15001140700mm;
Warranty:	1 YEAR;	Voltage:	380/220;
Condition:	New;	Color:	Yellow;
Key word:	Rebar Roller Threading Machine;	Thread Pitch:	3.5mm;
Rebar Diameter:	D16mm-D40mm;	Single gross weight:	450 KG;

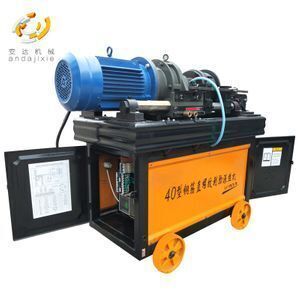

HGS-40 semi-automatic Rebar thread rolling machine, was developed in 2018. Last year it was in the testing practice stage. After a period of market testing, we have improved a lot on the previous basis. At present, HGS-40 has been mass-produced.

1. After modification, the screw angle is increased, so manual wire feeding is very labor-saving.

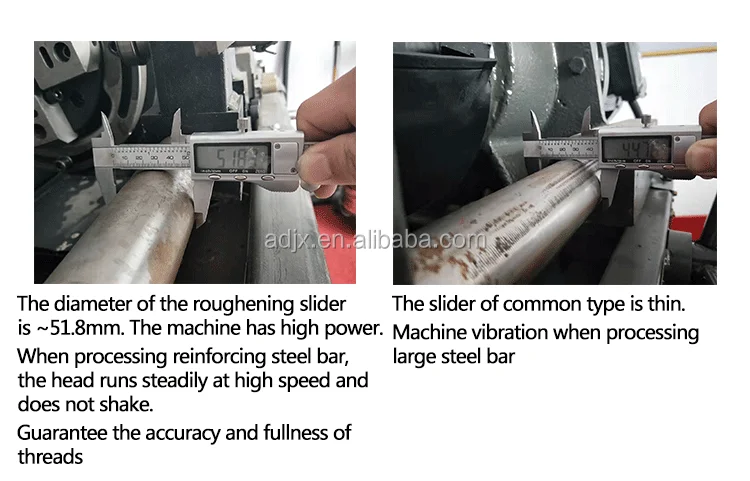

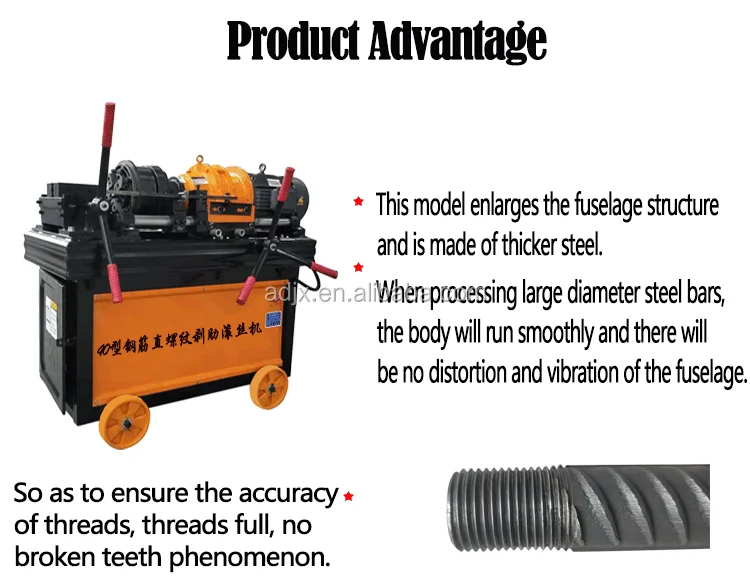

2.The fuselage is enlarged, the fuselage structure is strong, and the fuselage will not twist and shake when processing large diameter reinforcing bars, thus ensuring the accuracy of the threads, the processed threads are full, and the phenomenon of broken teeth will not occur.

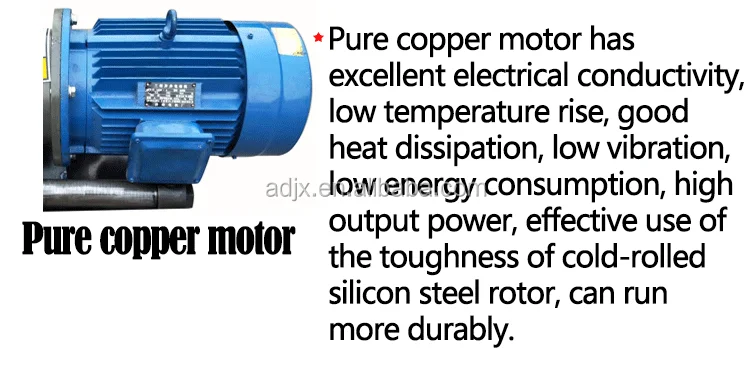

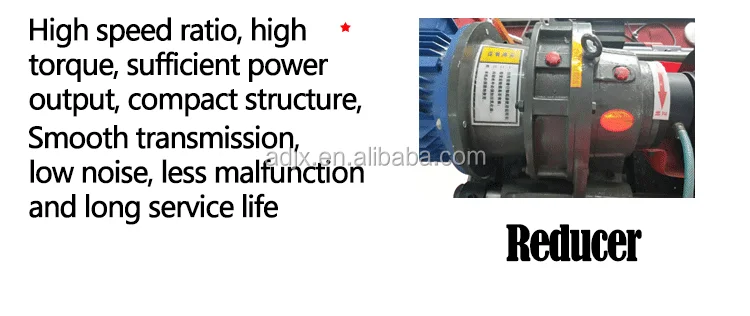

Motor power and reducer quality are different. HGS-40 is suitable for pure copper motor and national standard reducer.

3.Assemblable parameters: 4.5KV motor, 5.5KV motor, 7.5KV motor, reducer can be assembled: 1:17 reducer, 1:19 reducer, these parameters need to be assembled according to the processing diameter range.

4. HGS-40 fuselage screw anti-seismic 10.8, the key parts of the screw anti-seismic 12.8, part of the use of screw anti-seismic 8.8.

Type	HGS-40
Thread roller diameter	78.3	70	60
Thread Pitch	2.5mm	3.0mm	3.0mm
Rebar Diameter	Φ16-22	Φ25-32	Φ36-40
Thread Angle	60° / 75°
Main Motor power	5.5KW/ 100% pure copper motor
Working Voltage	380V / 50HZ
Processing rebar length	120 mm
Rotate Speed	96 r /min
Processing steel bar range	16mm - 40mm
package Wooden box size	11575141cm
Weight	450 kg
delivery time	3-7days

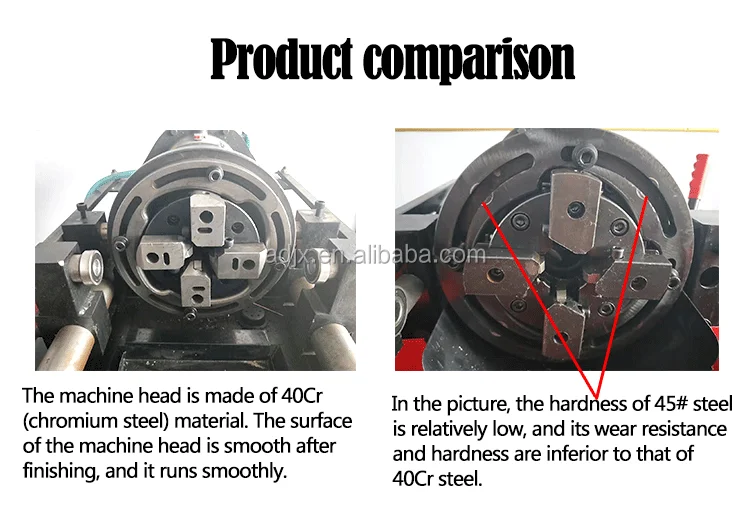

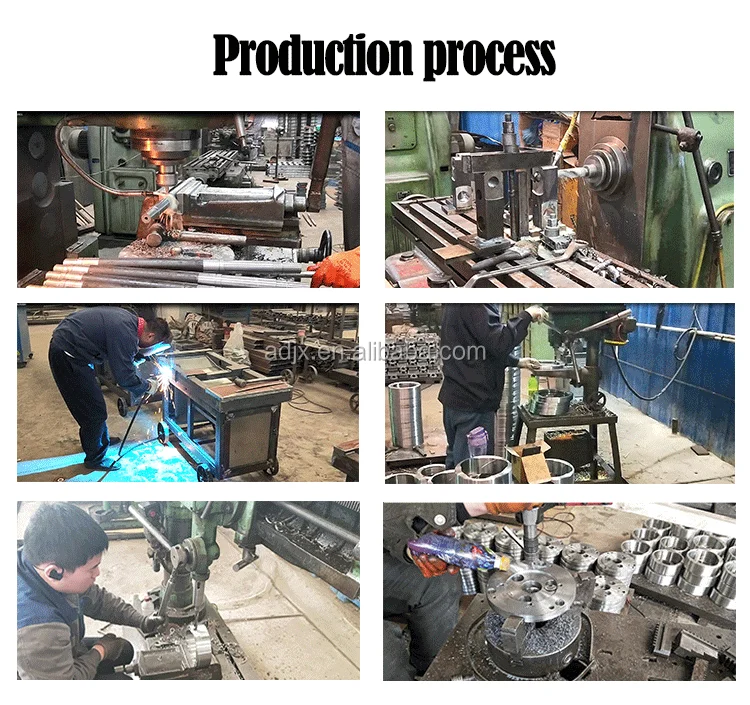

5. Some parts have different quality processing technology. HGS-40 is quenched with 40Cr chromium steel. The material is hard and the processing procedure is complex.

1.Q: Are you a factory or trading company?

A: We are trading company & manufacturer.specialized in Rebar Coupler & Rebar Threading Machine & Bending Machine & Rebar Upsetting Machine with 10 years rich experiences in Machinery And Equipment

2.Q: Where is your company located? How can I visit there?

   A: Our company is located in Hengshui city, hebei province , while our factory North industrial park, taocheng district, hengshui city

You can fly to Shijiazhuang airport directly, and we will pick you up. Welcome to visit our company or factory.

3.Q: How does your factory do regarding quality control?

   A: Quality is the priority. We always attach great importance to quality controlling from beginning to the end. Our factory has gained CE, ISA,CQC certificate.

4.Q:Besides machines,can you provide tools of machines?

A:Yes.Both machines and tools can be provided in our factory.Our company has an independent spare-part departments.If you just only need tools of your machines,we can also provide you even if your machine is originally not from our factory.
Just tell us your needs and we can make a free design for you.

5.Q: what's your delivery time ?

   A:It depends.If your ordering is standard and in stock,we can deliver immediately. If not,about 7-10 working days for machines and about 3-4 days for tools.

6.Q:What are the payment terms you accept?

   A: We accept T/T, LC etc.
