Type: | NO; | Material: | Stainless Steel; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Application: | Level Sensor; |
Packaging Detail: | PAPER BOX; | Brand Name: | taxnele; |
Temperature Rating: | -30~+125℃; | Place of Origin: | Zhejiang China; |
Product name: | Water Tank Level Switch; | Max.Contact Rating: | 10w; |
Max.Carry Current: | 1.0A; | Supply Ability: | 10000 Piece/Pieces per Month; |
Certificate: | CE; | Model Number: | Water Tank Level Switch; |
COLOR: | as pic; | Port: | NINGBO; |
Accuracy: | 0.1; |
1.Product attributes
NAME | Side Mounted Float Level Switch |
Name: Double Float Switch
Point capacity: 50W
Resistive load: 107 times
Switching voltage: 220VAC/200DC
Working temperature: -10~120°C
Switching current: 0.5A
Insulation resistance: >10Ω
Contact impedance: <100m
Switch material: SUS304
Working pressure: <1.0MPA
Installation method: horizontal type
450mm L1=50mm L2=410mm L3=450mm Control Range 370mm
500mm L1=50mm L2=450mm L3=500mm Control Range 405mm
550mm L1=50mm L2=510mm L3=550mm Control Range 470mm
600mm L1=50mm L2=550mm L3=600mm Control Range 510mm

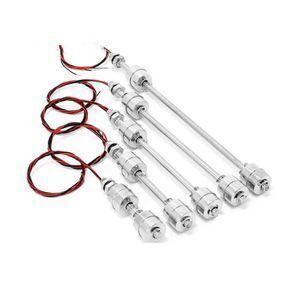

2.Product display
