63A 230V Din rail adjustable over under voltage protective protector relay protection, digital electric voltage protector

Supplier: Yueqing Taixin Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ahmed Gao
Price: $6.40 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	taxnele;	Warranty:	18 months;
Phase:	Single Phase;	Selling Units:	Single item;
Display:	DIGITAL;	Application:	General-purpose;
Single gross weight:	0.19 KG;	Efficiency:	high efficiency;
Frequency:	50Hz/60Hz;	Current Type:	AC;
Protection:	Under And Over Voltage Protection;	Place of Origin:	Zhejiang China;
Input voltage:	220V;	Packaging Detail:	PAPER BOX;
Color:	AS PIC;	Output voltage:	220V;
Main Products:	Under And Over Voltage Protection;	Usage:	JIW;
Model Number:	Voltage Protection;	Single package size:	5X5X5 cm;

parameters

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

6.Current display (current measurement)

Product Parameters:

1.Model number:TVPS1-63B

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A Adjustable(default:40A)

1~63A Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V)

Over-voltage recovery voltage range:225V--295V(default:250V)

Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage r ecovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V)

Under-voltage recovery voltage range:145V--215V (default:190V)

Under-voltage protection action time:0.1s~30s(default:0.5s)

Under-voltage r ecovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A)

Over-current action range:0.1~30 second (default:0.5s)

Over-current r ecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

11.Installation:35mm DIN rail

Noted: When you first connect the product, you have to wait about 10 second( Power-on delay time:1 s~50 0s(default:10 s)), after the red light turn off, then the product will work.

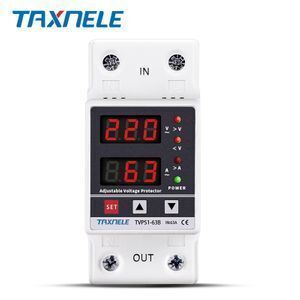

Product display
