JQX-62F-2Z 80A 100A 120A Coil High Power Relay 12V 24V 220V AC
-
Supplier: Yueqing Taixin Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Ahmed Gao -
Price: $3.38 / >=2 pieces -
Min. Order: 2 pieces
| Max. operating voltage: | 250VAC/30VDC; | Model Number: | 62F; |
| Current: | 80A,100A,120A; | Place of Origin: | Zhejiang China; |
| Brand Name: | TAXNELE; | Selling Units: | Single item; |
| Max. operating power: | 20,000VA/2,000W; | Single gross weight: | 0.5 KG; |
| Theory: | Electromagnetic Relay; | Contact Load: | High Power; |
| Material: | Silver,Copper; | Protect Feature: | Sealed; |
| Size: | 84*68.2*65.5mm; | Voltage: | 12v,24v,220v; |
| Package Type: | Standard Export Packing; | Size: | Miniature; |
| Single package size: | 10X10X10 cm; | Usage: | General Purpose; |
1.Product attributes
Model | 62F/2Z |
Size: L*W*H (mm) | 84*68.2*65.5 |
Contact form | 2H,2D,2Z,(2A,2B,2C) |
Material | Silver Alloy,Copper |
Max. operating current | 2Z(2C):80A,100A,120A |
Max. operating voltage | 250VAC/30VDC |
Max. operating power | 20,000VA/2,000W |
Rated load(resistive load) | 80A 250VAC/30VDC |
Rated voltage | 6~240VAC/5~110VDC |
Normal operating power | 10VA/2.0W |
Insulation resistance (MΩ) | 1,000 |
Dielectric strength(between coil and contact) | 2,500VAC |
Ambient temperature | -40°C TO +70°C |
Operate time/release time | 25ms/25ms |
Mechanical life (Min.) | 1*106 |
Electric life (Min.) | 1*105 |
Security Certificates | CE |
Terminal type | Screw line terminal type |

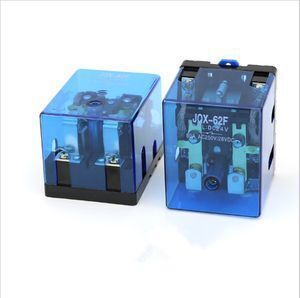

2.Product display
-
