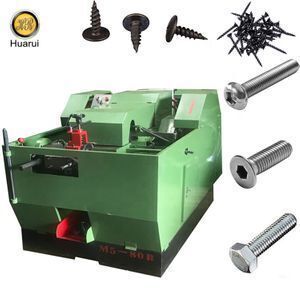

High quality cold headingmachine/automatic screw making machine

Supplier: Xuchang Huarui Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Tina Xi
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Nail length:	2-150mm;	After-sales Service Provided:	Online support, Video technical support;
Nail diameter:	2-30mm;	Place of Origin:	Henan China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	2 years;
Supply Ability:	100 Set/Sets per Month Cold Heading Screw Making Machine;	Brand Name:	Huarui;
Port:	Qingdao;	Color:	green(or customized);
Packaging Detail:	Cold Heading Machine: Wooden case or as request.;	Weight:	1800-56000kg;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;

1-Die 2-Blow Automatic Cold Heading Screw Making Machine

1. 1-Die 2-Blow Automatic Cold Heading Machine

This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.

Application of equipment:

It is used for chipboard screws, drywall screws, self drilling screws, self tapping screws, wood screws, machine screws, furniture screws, electronic screws, precision screws, fasten piece used for car and motor car, nuts, spring washer, rivets, pin bolt and split pin, steel structure used rivets and fasten pieces, kinds of metal special-shaped pieces etc products’ upsetting and forming.

Main technical parameters:

Model	Dia. range (mm)	Max length (mm)	Min length (mm)	Max pressure(t)	Capacity (pcs/min)	Motor (kw)	Weight (kg)	Overall size (mm)
Z12-4	3-4	40	6	10	120	3	1800	1900×980×1220
Z12-5	4-5	60	6	18	120	3	2200	2100×1000×1300
Z12-6 (130mm)	4-6	100	10	25	60	5.5	4000	2700×1400×1350
Z12-8 (130mm)	6-8	100	10	33	65	7.5	5000	3200×1450×1450
Z12-10 (160mm)	8-10	130	10	40	65	11	6500	3600×1700×1800
Z12-12 (160mm)	10-12	130	20	70	55	18.5	12000	5500×2200×1700
Z12-16 (200mm)	12-16	170	40	150	45	30	16000	6000×2350×2000
Z12-20 (200mm)	16-20	170	40	200	45	37	23000	7000×2450×2300
Z12-24 (200mm)	20-24	170	50	250	35	45	35000	7500×3000×2300

2. Automatic Screw Making Machine

This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.

Model	Diameter(mm)	Capacity (pcs/min)	Motor(kw)	Weight (kg)	Overall size(mm)
Z25-5 (60mm)	≤5mm	130	3kw	1t	200010001200
Z25-6	M4-M6	70	1.5kw	600	1400×1050×1350
Z25-8	M6-M8	60	3kw	800	1500×1100×1400
Z25-10	M6-M10	55	4kw	1000	1600×1100×1450
Z25-12	M6-M12	50	5.5kw	1500	2000×1200×1500
Z25-16	M8-M16	45	7.5kw	3000	2500×1000×1500
Z25-20	M14-M20	35	11kw	4500	3000×1300×1800
Z25-24	M14-M27	35	15kw	6500	3500×1400×1800
Z25-30	M14-M30	45	30kw	8000	656029002500
