Hot sale!!! Tire shredding machine with best price tire shredder machine for making rubber powder

Supplier: Xuchang Huarui Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Tina Xi
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao;	Model Number:	XKP350/400/450/560;
Packaging Detail:	Tire shredding machine by sea worthy or as required;	Place of Origin:	Henan China (Mainland);
Brand Name:	Huarui;	Dimension(LWH):	according to the model of the machine;
Applicable Industries:	Manufacturing Plant;	Supply Ability:	300 Set/Sets per Month;
raw material:	waste tires;	Diameter of roll:	400-560mm;
Voltage:	380V/50HZ;	Condition:	New;
Max roller spacing:	10 mm;	Warranty:	2 Years;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Online support;	Certification:	CE;
Power(W):	55KW;	Roll ratio:	1:2.5;
After-sales Service Provided:	Engineers available to service machinery overseas;	Key Selling Points:	Energy Saving;
Motor revolution speed:	760-980 r/min;	function:	make waste tires or rubber into rubber powder;
Front roll liner speed:	34.5-44 m/min;	Tire Machine Type:	Tire Recycling Machine;
Weight:	11-25ton;	workers needed:	2-3 workers;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;

Hot sale!!! Tire shredding machine with best price tire shredder machine for making rubber powder

Product Description

Tire shredding machine, it has following outstanding advantages:

No pollution: Separate the fiber, wire and rubber completely under normal temperature by physical methods, zero-emission of waste gas, water and feigh.

Low consumption: Lowest energy consumption and labor cost. Used Tyre Recycling Plant

High capability: Capable of disposing the waste tires which the diameter is less than 1250 mm into 5-40 mesh crumb rubber.

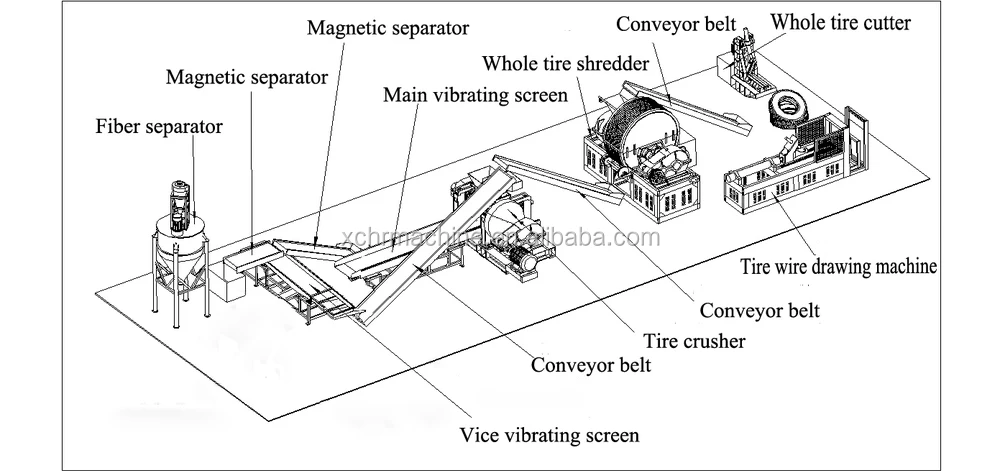

Working Process: Tire wire drawing machine-- tire cutting machine-- tire shredder-- tire crusher-- finished rubber powder.

Product Overviews

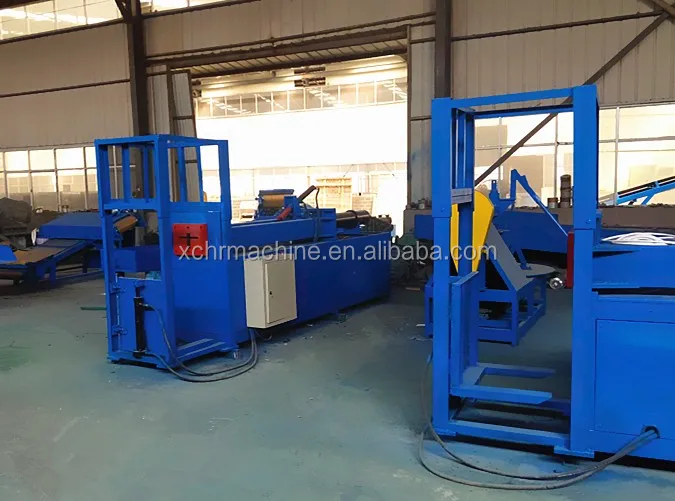

Step one: Tire wire drawing machine

Application: this machine is used to draw out the steel loops from the tire bead.

Model NO.	Feed size of tire	Capacity	Power	LWH	weight
TD-1200	≤φ1300mm	30-40tires/h	11 KW	4.70.91.7M	1.8T

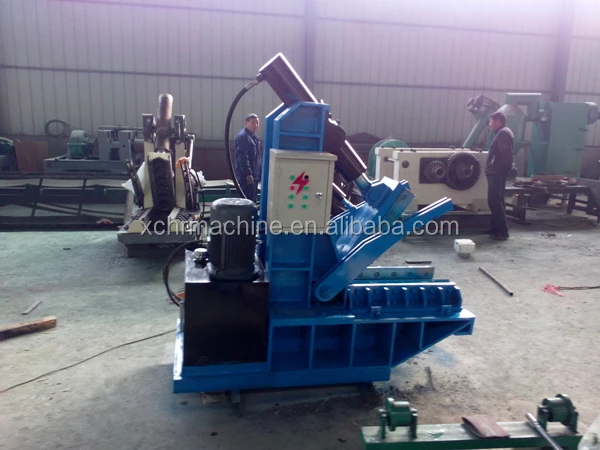

Step two: Tire cutting machine

Application: this machine is used to cut big tires to tree pieces or smaller pieces, if the tire diameter is bigger than 825mm.

Model NO.	Feed size of tire	Capacity	Power	LWH	weight
TC-1200	≤φ1300mm	30-40tires/h	11 KW	2.20.81.5M	1.5T

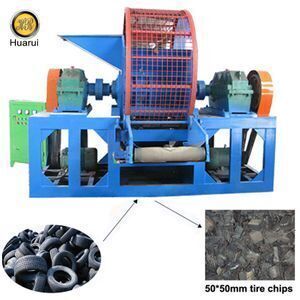

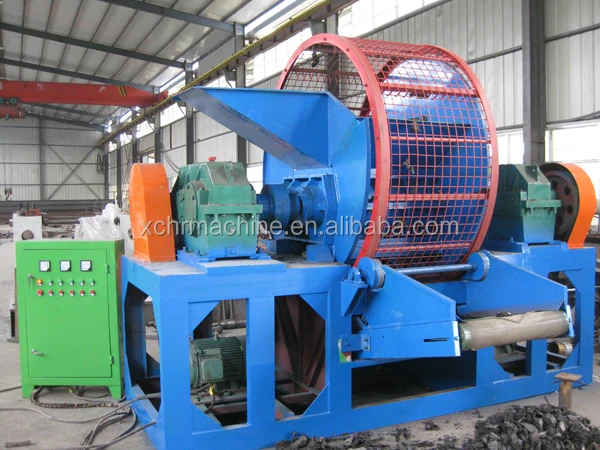

Step three: tire shredder

Application: is used for cutting whole tire to 50*50mm rubber block. (Including 2 conveyor belts)

Model No.	TS-800	TS-1200
Output(T/h)	1-2ton	4-6ton
Feed size of tire(mm)	≤φ825	≤φ1250
Output size(mm)	≤50*50	≤50*50
Power(KW)	22*2+4	55*2+5.5
Speed(r/min)	15	14
Equipment weight	9T	15T

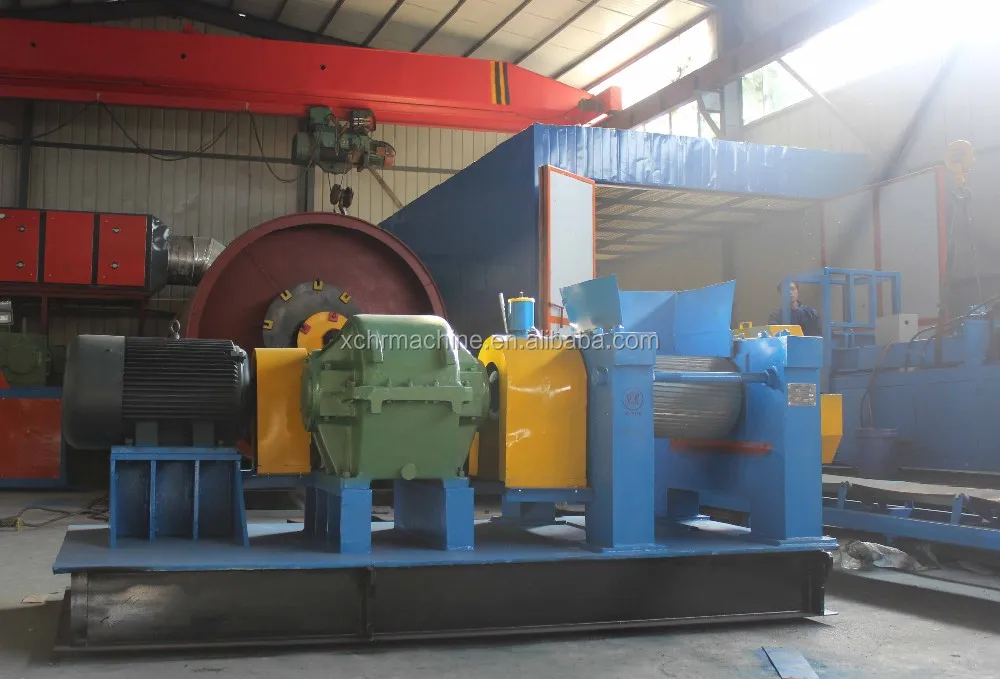

Step four: tire crusher

Application: It is used to grind the rubber blocks into smaller mesh powder through the vibrating screen as you need.

Model No.	XKP-350	XKP-400	XKP-450	XKP-560	XKP-560L
Diameter of front roll	300mm (groove)	400 mm (groove)	450 mm (groove)	560 mm (groove)	560 mm (groove)
Diameter of back roll	300mm (groove)	400 mm (groove)	450 mm (groove)	510 mm (groove)	560 mm (groove)
Drum working length	500mm	600mm	760mm	800mm	1000mm
Front roll liner speed	26.2 m/min	34.5 m/min	38.0 m/min	40.6m/min	44m/min
Roll ratio	1:2.5	1:2.5	1:2.5	1:2.5	1:2.5
Max roller spacing	10mm	10 mm	10 mm	10 mm	10mm
Motor power	30/37KW	45KW/55KW	75KW/90KW	90KW/110KW	132KW/160KW
Weight	6T	8.5 T	11T	17.5T	23T
LWH	3.51.61.5m	4.31.81.6m	4.62.01.65m	5.32.01.7m	5.62.01.7m

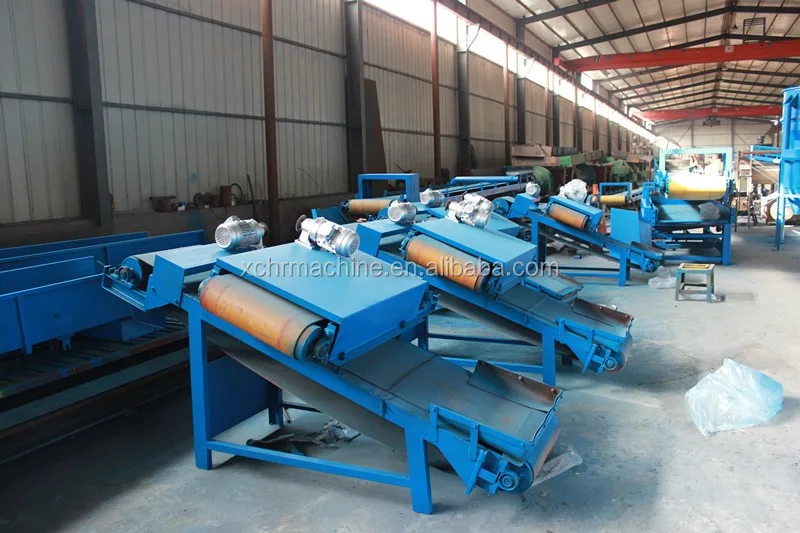

Step five: Magnetic separator (2 sets: the first magnetic separator is roughing separator and the second one is fine separator)

Application: It’s used for separating the steel wire from the rubber powder.

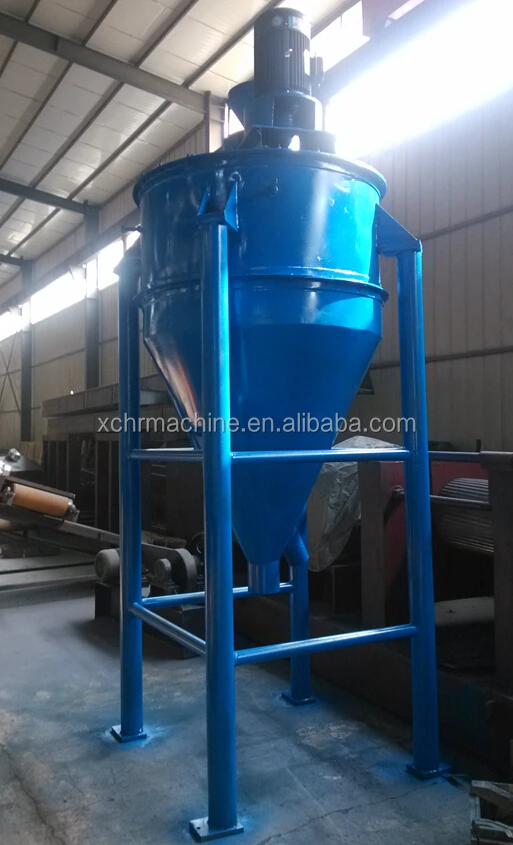

Sept six: TFS1000 Fiber separator

Application: it’s used to separate the fiber, nylon and small wire from both nylon waste tire and steel tires.

Model NO.	Motor power	Capacity	LWH	Weight
TFS1000	5.5 KW	800-1000kg/h	0.51.53.4m	1600 kg

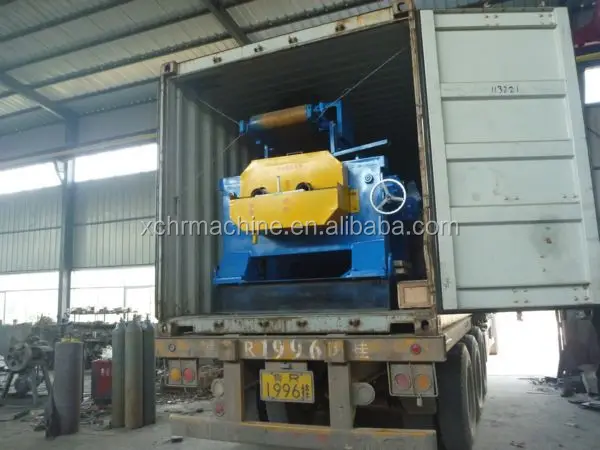

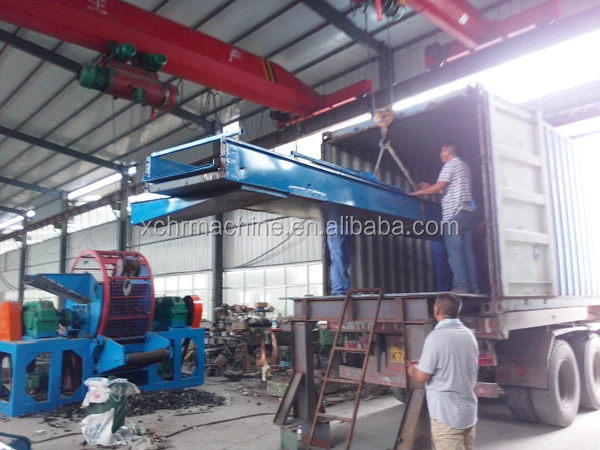

Packaging & Shipping

Company Information

Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in the R&D and manufactures waste tire recycling machine, nail making machine and auxiliary equipment.

After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.

Our main products are waste tire recycling machine, full automatic nail making machine, iron wire drawing machine, rebar straightening and cutting machine and auxiliary equipment. Our scale of production is among the best in the profession, sales network are spread out into North America, South America, Asia, Africa and Middle East, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.

Our Services

Why choose us?

1. Guarantee: 2 years after commissioning.

2. Installation: Engineers available to service machinery overseas.

3.Wherever you are, we have experience, knowledge, and skills to meet your needs and satisfy your requirements

4. More than 20 years of experience.

5. They are our patented products and they are 1/3 energy saving!

Our customers
