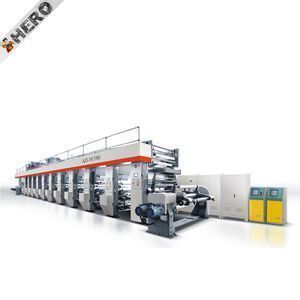

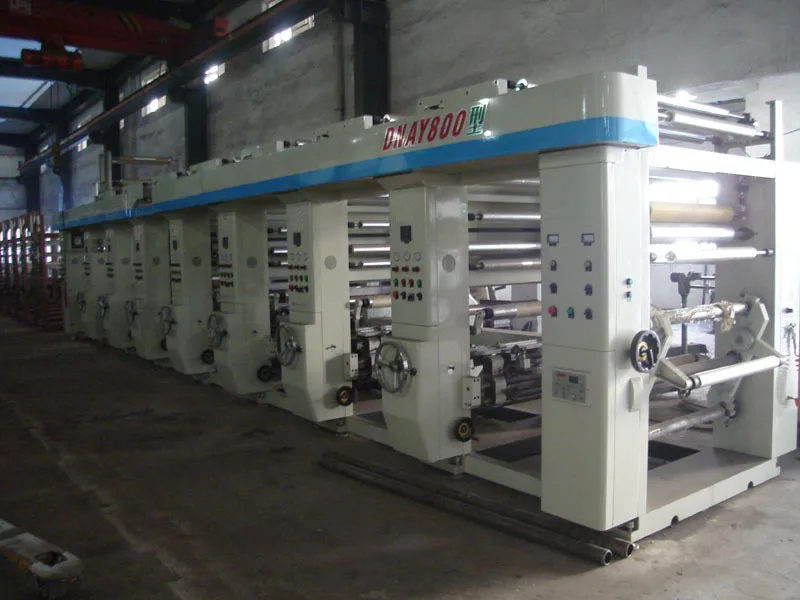

HERO BRAND High Speed 1-8 color Rotogravure Printing Machine

Supplier: Wenzhou Hero International Trade Co., Ltd.
Region: Zhejiang, China
Contact: Mr DEAN YE
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden cases HERO BRAND High Speed rotogravure printing machine,rotogravure printing machine,gravure printing machine,gravure printing machine price;	Supply Ability:	20 Set/Sets per Month;
Type:	Rotogravure Printing Machine;	Payment Terms:	L/C,D/A,T/T,Western Union;
Weight:	4000KGS;	Automatic Grade:	Automatic;
Brand Name:	HERO BRAND;	Place of Origin:	Zhejiang China (Mainland);
Usage:	Paper Printer;	Color & Page:	Multicolor;
Warranty:	More than 5 Years;	Certification:	CE;
Voltage:	380V;	Port:	NINGBO;
After-sales Service Provided:	Field installation, commissioning and training;	Dimensions(LWH):	101.82.3M;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;

HERO BRAND High Speed rotogravure printing machine,rotogravure printing machine,gravure printing machine,gravure printing machine price

Company Information

Packaging & Shipping

Product Description

1). Description:

This machine is suitable for printing various plastic film (BOPP, PET, CPP, PE NYLON, PVC), thin paper, foil, and other reel type material. The printing speed is 100m/min, mechanical speed 120m/min.

1. Main driving structure: Controlled by INOVANCE frequency controlled motor, axle coupling driving.

Feature: Stable running.

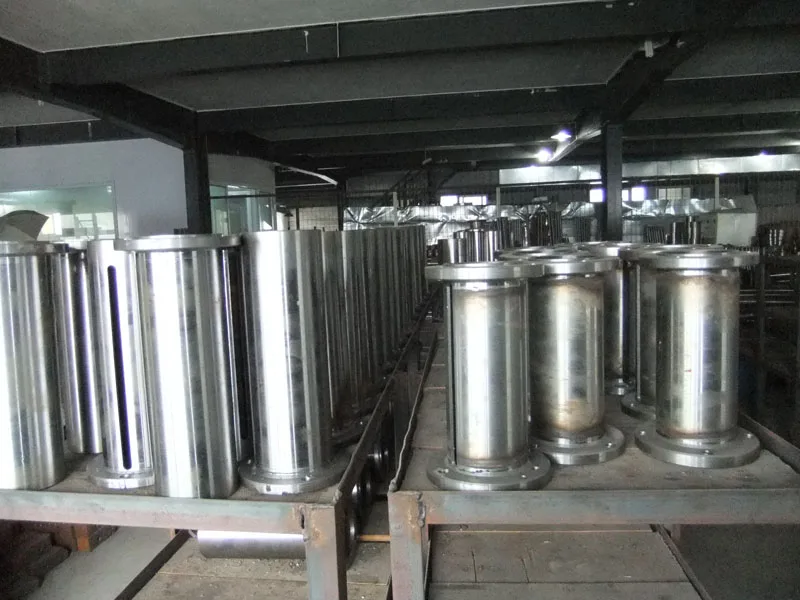

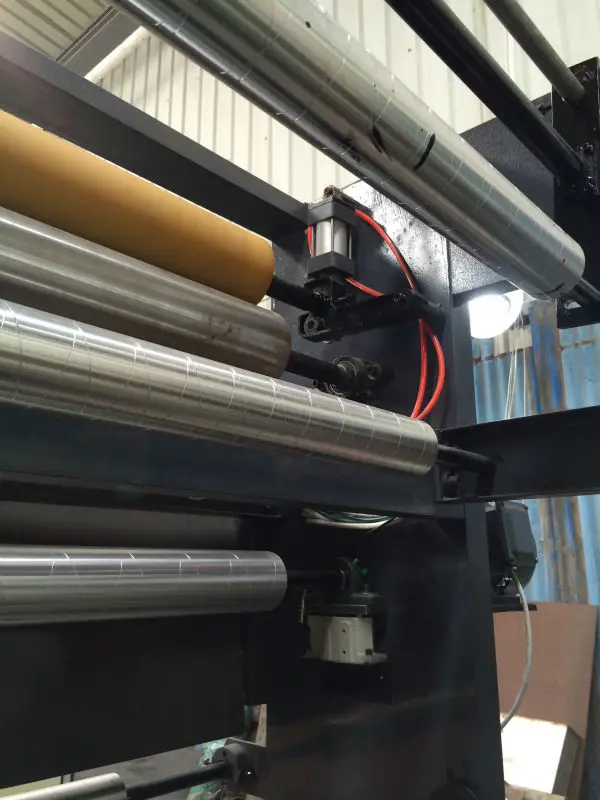

2. Shaftless printing roller fixing System: adopt pneumatic cylinder fixing style to drive the printing roller core, and transverse adjustment through screw.

Feature: Swift printing roller replacement, so as to insure the concentric of printing rollers to improve printing precision.

3. Ink scraper structure: use air diaphragm pump to cycling and feeding ink; doctor blade slowing drive by low speed synchro-motor which can be up & down and angle adjusted; the pressure controlled by double pneumatic cylinder.

Feature: increase service life of printing roller and easy use.

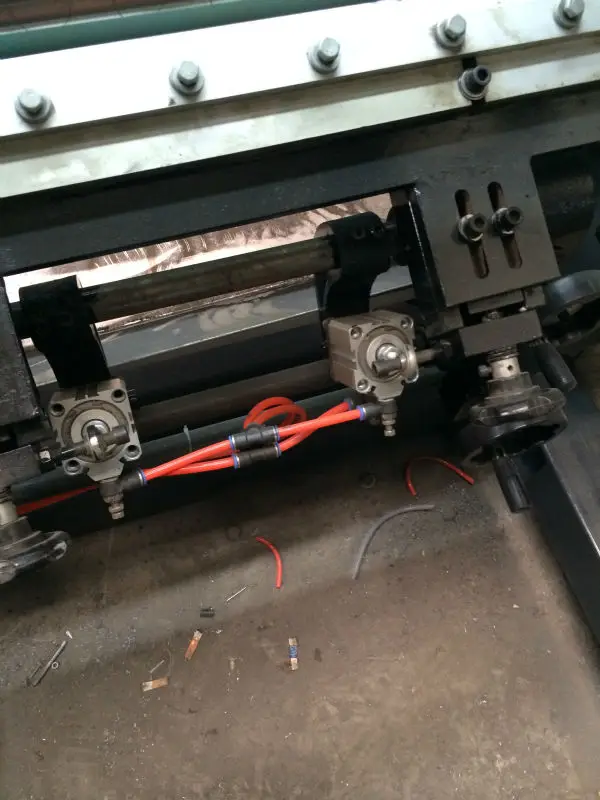

4. Imprinting ascending and descending structure: controlled by twin pneumatic cylinder synchronous ascend and descend; oscillating arm type cylinder seat to insure the stability of material tension.

Feature: insure the pressure equalization, decrease chromatic aberration.

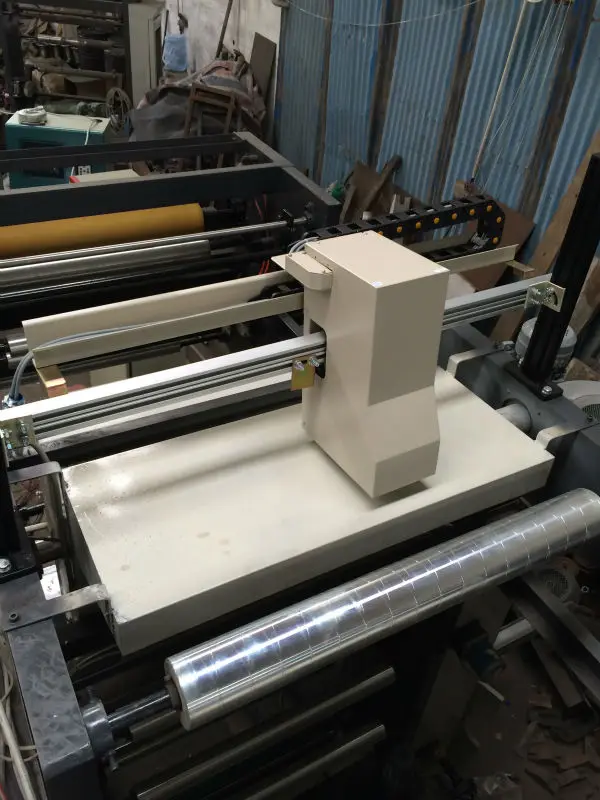

5. Overprint Mechanical hand: longitudinal automatic overprinting adjusted by micro-computer (through photocell detecting) and synchronous motor (through screw rod slow driving).

Feature: flexible, stable, and high overprint precision.

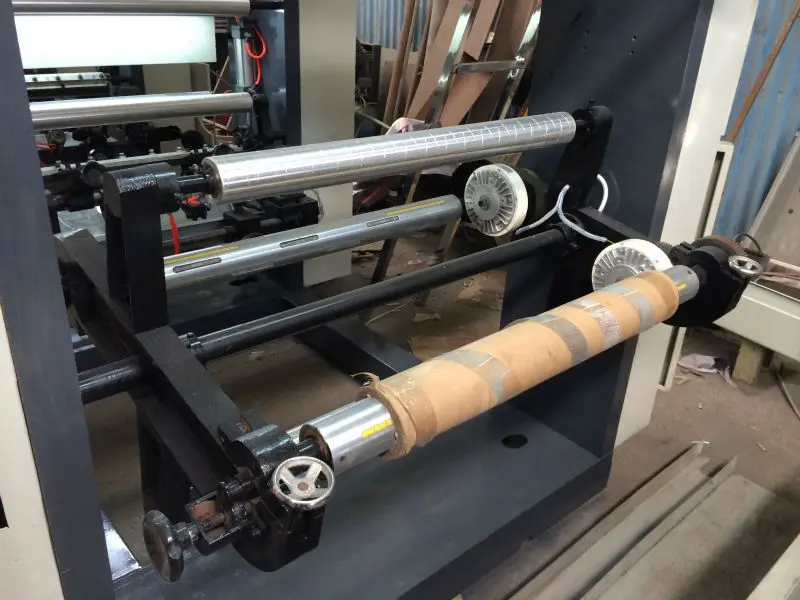

6. Rewinding and unwinding system: double stations, auto-cutting and connecting for rewinding, and controlled by moment motor; Rewinding traction adopt vector frequency controlled motor. Unwinding adopt magnetic powder brake constant tension controlling. Feature: low tension variety, to reduce waste and cost-cutting.

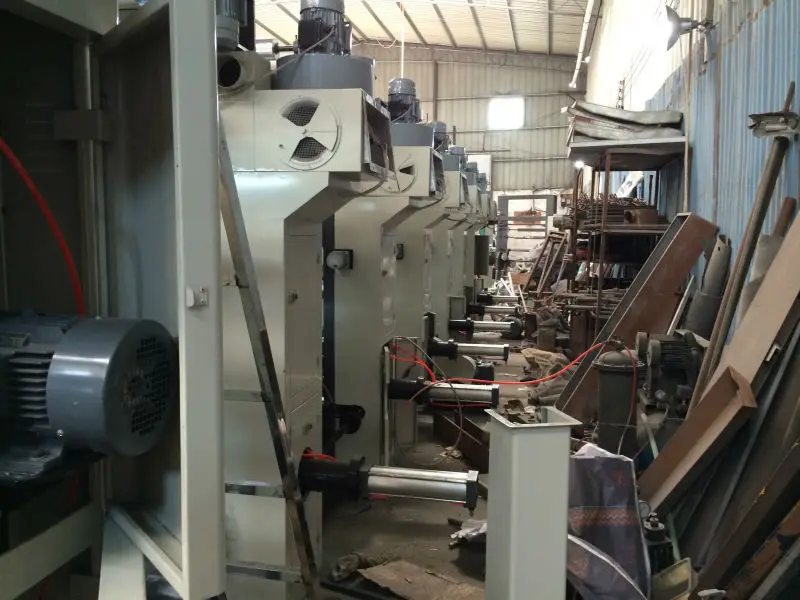

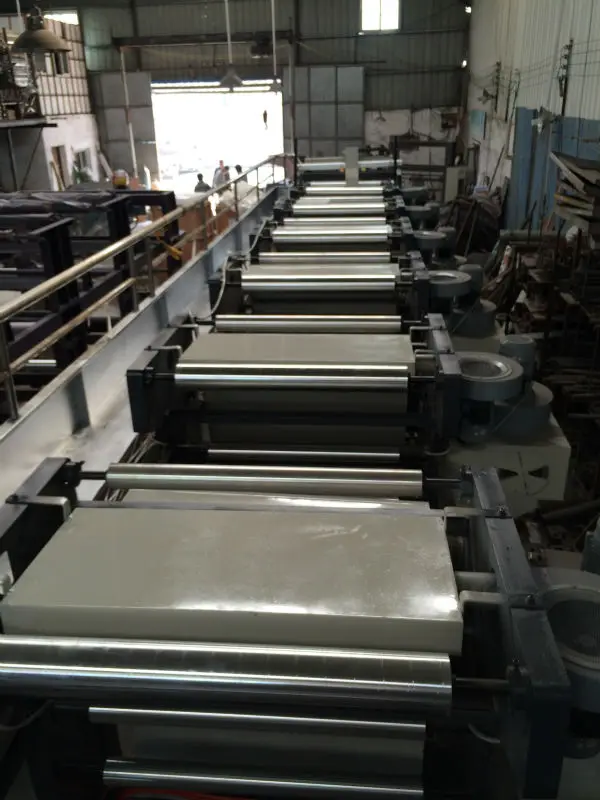

7. Drying & cooling system: drying tunnel wind cycling by centrifugal blower; temperature controlled by intelligent temperature controller; material cooling by singe unit wind cooling device.

Feature: insured drying and cooling effect, increase product quality.

2). Main Technical Specification:

Model	YAD-A8600	YAD-A8800	YAD-A81100
Printing width	600mm	800mm	1100mm
Precision of overprint	±0.15mm	±0.15mm	±0.15mm
Diameter of printing roller	100-300mm	100-300mm	100-300mm
Printing speed	50-100m/min	50-100m/min	50-150m/min
Diameter of material	600mm	600mm	600mm
Diameter of core	76mm	76mm	76mm
Voltage	380V	380V	380V
Fan power	Heat wind:1.5kw Cold wind:0.75kw Air draft: 2.2kw(each)	Heat wind:1.5kw Cold wind:0.75kw Air draft: 2.2kw(each)	Heat wind:2.2kw Cold wind:1.5kw Air draft: 3kw(each)
Main motor power	5.5kw	5.5kw	7.5kw
Drying tunnel power	9kw/color	10kw/color	12kw/color
Total power	115kw	135kw	145kw
Overall dimensions	12500x1950x2550mm	12500x2150x2550mm	12500x2450x2550mm
Weight	10000kg	12000kg	15000kg
