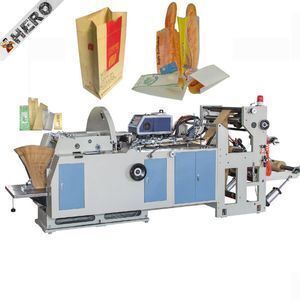

HERO BRAND kraft paper cement bag making machine

Common unwinding
1. Unwinding adopt common loading , max diameter of raw rolling material is φ600mm
2. Adopt magnetic powder tension control. Manual adjust the tension.
3. Unwinding shaft is heavy-chain plug axle
4. Unwinding with EPC

Top-folding continuously sealing device.
1. Top-folding continuously sealing, the width size of bag not be limited,
2. Inside heating wire sealing, which suitfor full colours of bag.
3. Adopt import heat wire, steady warming, hard sealing
4. Double adhesive tape device for side sealing bag
5. The continuous sealing device is suitable to thickness of one layer film ≤0.06m/layer

Top folding and round bottom gusset device:
1.14mm high hardness steel plate top folding and round bottom guset
2. Special guide plate and roller ,which offer less friction fold
3. With flat press roller
4. More thin round disc bottom gusset
5. U style mould bottom molding
Soft loop handle bag device
1. Double layer unwinder
2. The whole type steel plate base, and special support bag structure.
3. High quality oval sealing knife from up and down
4. Hydraulic skew angle feeding soft loop
5. 90 degree turnabout gear rotary soft loop
6. Special oblique drag style rotary soft loop
7. Micro-motor driver soft loop handle go forward and back off
8. Centralize style air control system

Patch handle bag device
1. Pneumatic control feeding
2. Turnabout cylinder control patch
3. With flying knife cutting fast
4. Special pattern sealing mould
5. Micro-motor driver patch go forward and back off
6. Base mould of patch device adopt whole steel plate

Heat sealing handle punch
1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate
5. Hot handle puncher 20X90m
6. Stroke of puncher :25mm X 2
7. Temperature of puncher 0-300 degree
Photocell of printing and preheating :
1. Printing image tracking adopts photocell from SICK FROM GERMANY
2. The photocell of priting together with high technical computer ,
3. The pre-sealing knife is designed specially of bottom four layers film, high speed produce bag
4. Double sides heating, double cylinder driven, strong for gusing, and strong for sealing .
Side sealing parts:
1. side sealing knife principal axis transmission belt cylinder lifting and down.
2. Side sealing knife with water cycle cooling system.
3. Side sealing knife adopt best of breed material, high temperature heating ametabolic.
4. Side sealing knife with concealed style heating tube, temperature steady
5. Turnover heavy side sealing knife, humanism structure design, turn fast, easy to cleaning.

Convey vollect device:
1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2. When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.
3. Collect table is driven by Micro-motor reducing servo



Control parts:
1. The main control panel real-display touch screen with Taiwan eview screen
2. Main motor adopt 1.5kw reducer(with braket), driven by the 1.5 kw inverter used YASKAWA FROM JAPAN
4. Driver control program of the whole machine by PLC-panasonic-JAPAN control.
5. Back feeding adopt traction is driven by inverter from JAPAN-YASKAWA
6. Bag feeding is driven by 3 kw servo motor from JAPAN-YASKAW
7. All of pneumatic parts and air cylinders of whole machine all from Shanko-Taiwan
8.. ALL heating adopot AC contactor
9.. Adopt dual intelligent temperature controller
10. The bag making of whole machine operate from inner of machine


Technical data:
Model : ZD800
Bag style: soft loop handle bag,
poly draw handle bag,
patch handle bag
top folden die cut bag,

Orientation: from right to left
Width size of unwinding: 800mm( double )
Diameter of unwinding : 600mm(max )
Length size of bag making: 250-750mm(if want bigger size that should order)
Width size of bag making : 250-600mm
Top folden: 50-75mm
Bottom folden : 30-60mm
Thickness of film : HDPE 0.03-0.06mm
LDPE 0.04-0.08mm
Length size of loop handle tape: 360mm
Thickness of loop handle tape: 0.08-0.25mm
Width size of draw rope tape : 25mm*2(double layer)
Thickness of draw rope tape: 0.04-0.15mm
Width size of patch bag: 150mm
Thickness of patch bag: 0.11-0.15mm*2(double layers)
Speed of bag making:
soft loop handle bag 60 pcs/min
Poly draw handle bag 70 pcs/min
Patch handle bag 60 pcs/min
Die cut handle bag 75 pcs/min
Total power: about 13KW
Working noise : about 90db
Outside of machine : 7800X3200X1850mm
Weight of machine : 3500kg
Air compressor : 7HP




Spare parts follow machine:
1.A set of tools (a toolbox, a 10 # monkey wrench, a set of inside hexagonal wrench, two screwdrivers, a Vector. 8-10,12-14,7-19 leatherhead wrench each have one)
2.Trachea 4, 6,8 each three-meter, each have two4, 6, 8 tracheal tie-in.
3. High-temperature hot Teflon cloth 2 meters, a roll of high temperature rubberized fabric.
4. each heating tube two(heat cutting knife, soft loop handle, preheating,sticking)
5. Small type Proximity sensors two.
6. Small type magnetic contactor four
7. thermocouple 3 pcs.
8. Switch and knob each two.
9. Knife two boxes.
10. Solid state relay two.
11. One Instruction
12. A Instruction of correction , a Instruction of invertor,
13. Level foot plate 16pcs.
14.Power supply copper tie-in 4 pcs

1.Q:Are you machinery factory or trading company?
A:We are machinery factory,and also have one trading company

2.Q:Where is your factory located?
A:We are located Rui`an City,Zhejiang Province,China
From SHANGHAI by air is 40mins,by train is 4hours.
From GUANGZHOU by air is 2hours.

3.Q:How many years warranty?Can you teach us?
A:In usually,we given customer one years warranty.We also have oversea technician service,to help you install the machine.

4.Q:What`s the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram ETC.

5.Q:Can we order on alibaba.com?
A:Yes!Of course!We also we give you more discount if you order on alibaba.com.
