Heat Sealing Cold Cutting Plastic Garbage Bag Making Machine

Supplier: Ruian Bonada Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Stephen Yu
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

weight:	2400KGS	Health status:	new
Packaging Details:	Plastic film or wooden box packaging.	Supply capacity:	50 sets per month
Warranty:	one year warranty	port:	Port of Ningbo, China
Dimensions (LWH):	520014001700mm	After-sales service provided:	Engineers can repair machinery overseas
place of origin; place of origin:	Zhejiang, China	model:	SHXJ-C
strength:	13KW	Type of machine:	Making Machine
Craft:	Hot sealing and cold cutting	Bag Type:	T-shirt bag
Applicable materials:	PE plastic tube film	brand:	Bonada
degree of automation:	automatic	Material:	plastic
Computerized:	Yes	Certification:	CE certification
Voltage:	220V, single phase, 50HZ	payment terms:	letter of credit, wire transfer

Name: Heat Sealing Cold Cutting Plastic Garbage Bag Making Machine

illustrate:

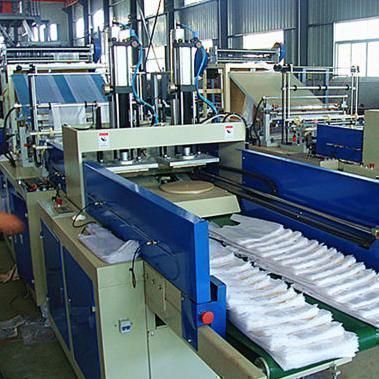

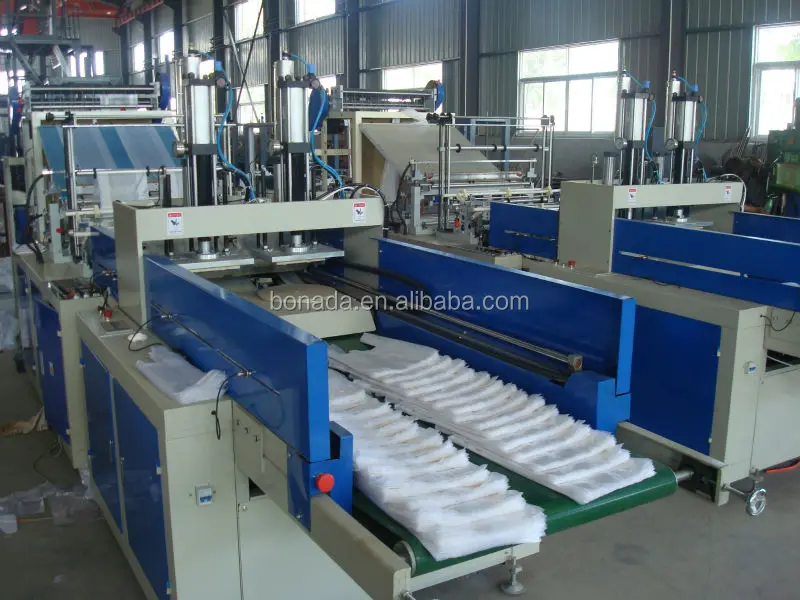

The automatic vest bag making machine is suitable for producing HDPE and LDPE plastics. Using servo motor or stepper motor to feed the film at high speed, photoelectric tracking and cutting, and punching the "U"-shaped bag at one time. And it has the characteristics of convenient operation, high efficiency and high quality of finished products.

feature

*Double layer with two sealing strips
* Four relaxation stations
* Four wire cutting
*Online automatic hole punching machine for t-shirt bags

feature

*Cold cut

*Double layer

*Four or two rows work, depending on bag size

*If the bag has printed color, can work in single line

*Single marker tracking photocell

*Single step motor pull film

*Microcomputer control

* Online automatically. including hole punch

* High speed production of T-shirt bags and flat bags

Specification:

Model	SHXJ-B600	SHXJ-B700		SHXJ-B800		SHXJ-B900
maximum. Cutting width (MM):	500mm	600mm		700mm		800mm
maximum. Cutting length (MM):	1200 (max)
Cutting thickness	0.01～0.04 (single layer)
Cutting speed (cycles/min):	40～150 (stepping motor) 50～220 (servo motor)
loopback motor	100W DC Motor X 4
Film pulling motor	Stepper Motor x 1
Main motor power (KW):	1.5kW	1.5kW		2.2kW		2.2kW
Main motor control method	AC inverter
computer	include
Heater power (KW)	3kW		3lw		4kW		4kW
number of working lines	4 Lines (Small/Natural) 2 Row (Large/Natural) line (light color)
Online automatically. punch	include
Punch die cutting machine	4 pieces included
Punch belt drive motor	0.75 kW
Pneumatic drive for punching machine	5 tons x 2
Air compressor	does not contain
Weight (kg)	800kg		850kg		900kg		950kg
Dimensions (L x W x H) (m)	33009401600		330010401600		330011401600		330012401600
