High Efficiency Sand Mining Dredger with Factory Price

Product details
Usage:Slag, mining silt, slurry sand cleaning;Dredger pump power:11-132kw;
Type:submersible sand dredger;Max. passing gravel diameter:56mm;
Dredger pump flow capacity:50-1250m3/h;Port:Qingdao;
Power supply:Generator;Dredger movement:Propeller;
Max. discharge distance:1100m;Applicable Industries:Construction works ,Energy & Mining;
Condition:New;Brand Name:Ocean;
Outlet diameter:4-10 inch;Local Service Location:Egypt,Canada,Turkey,United Kingdom,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
Showroom Location:None;Dimension(L*W*H):Customized;
Supply Ability:5 Set/Sets per Month sand mining dredger;Warranty:1 YEAR;
Weight:Depend on dredger Size;Place of Origin:Shandong China;
Packaging Detail:submersible dredger can ship by 20 feet container or 40 feet container;Power Type:Electric;
Payment Terms:L/C,T/T,Western Union,Trade Assurance;Certification:SGS/BV;
After-sales Service Provided:Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;Draught:50;
Package Preview:https://sc02.alicdn.com/kf/H458babae101048fab1ffe358bb7c15208.jpg_640x640.jpg;Dredger structure:Detachable;
Dredging Depth:25;Dredger pump work type:Vertical;

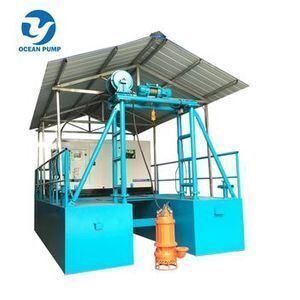

High Efficiency Sand Mining Dredger with Factory Price

Product Description

Sand mining dredger (ZJQ series)  is designed and manufactured with optimized hydrodynamics technology for sand suction and silt clearing. This kind of sand mining dredger is driven by electric motor. The sand mining dredger is suitable for conveying liquid with solid particles including sand, gravel, cinders and tailing etc. The sand mining dredger is mainly used in ribver, lake sand dredging, metallurgical industry, mining and thermal power plant, etc. It’s wear resistant wet parts are made of hard metal (Chrome alloy).  The bearing assembly is composed of large diameter shaft and short overhang, so the sand mining dredger will have long-term bearing life.  Sand mining dredger has the characteristics of high efficiency, energy saving, simple operation and easy management.

Specification



 The information in the table is not complete. Please click here to get more detailed data.

Features
  1. High efficiency. The motor submerges under water so that its operation is not restricted by suction head, realizing high dredger suction ratio and more thorough dredging.
  2. Best wear-resisting .Flow passage component of the pump is made of wearable high-chromium alloy material with good wear-resisting property and big flow passage way, making it suitable for transportation of mediums including mud with big solid particles, ore pulp, coal pulp and coarse sand etc.
  3. Triple protection. Equipped with sensing probe of the motor to realize over-heating protection, water-intake inspect protection and oil chamber protection, ensuring long and safe pump operation under abominable working conditions.
  4. Convenient and Cost saving. The entire equipment is simplified without auxiliary mixing equipment or injecting device, making the operation more convenient and the total investment lower.
Application

1. submersible slurry pump dredger for the sea is vertically submerged under water and driven by electric.

2. Suitable for conveying liquid with slurry, solid particles of gravel, cinders, tailings, etc.

3. Commonly used in river dredging, sand pumping vessel, sewage treatment plants, metallurgical industry, mining, power plants, etc.

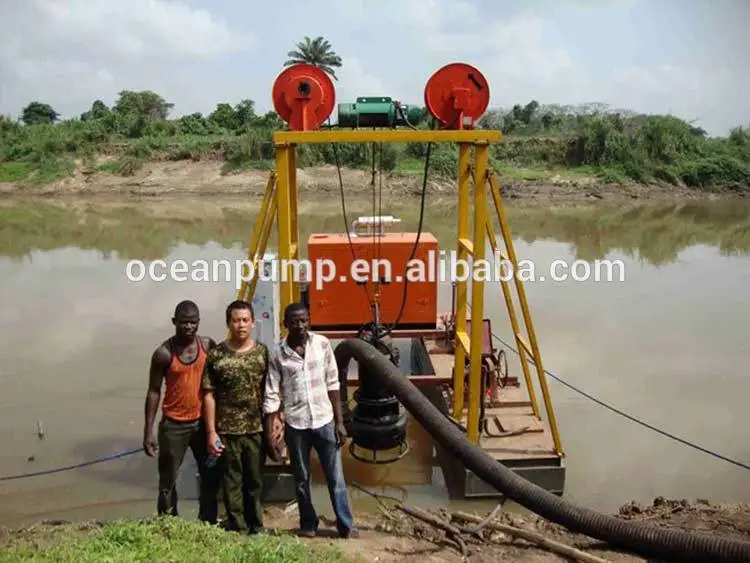

Successful cases

In July, 2018, We got an inquiry of sub dredge from Philippines. The customers required that the medium were sucked out was filled into Geo tube. Our submersible slurry pump dredger could do this work, So we sent our catalogue of submersible slurry pump dredger for reference.

After Communicating detailed information with clients for about 1 month, finally they confirmed 3 set of submersible slurry pump dredger.

High Efficiency submersible slurry pump dredger Parameters

Slurry pump modelZJQ200-15-22



Outlet diameter – 150mm

Flow capacity – 200m³/h

Head – 15m

Power – 22kw, 3 phase, 440V, 60Hz

Generator set440V/60Hz
Cable rollerTo make the pump cable in regular
High pressure water jetTo supply the high pressure water and flush the sand up
Big winchTo hoist the submersible slurry pump up and down
Small winchTo hoist the discharge hose
PropellerDriven by the diesel engine, to make the dredger forward and backward
Winder and anchorsTo fix the dredger
Dredger dimensionwith 6m steel plate, floating platform
Discharge hose6 inch flexible rubber hose
Discharge pipe6 inch HDPE pipe
Spare partsSome quick-wear spare parts for pump
Loading2*40 HQ



Customers wanted the submersible slurry pump dredger urgently. We sped up the production. At the same time, one jet suction dredger was in production. Time is limited .

submersible slurry pump dredger hull in production in our workshop

Dredger Products
Portable DredgerJet Suction Dredger
Submersible DredgerCutter Suction Dredger
