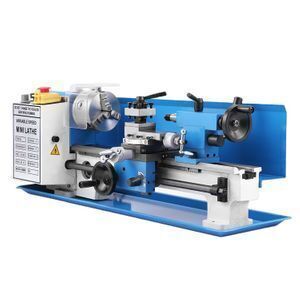

7x14 Inch 500w Metal Lathe Machine Metalworking Lathe New Metal Lathe for Sale

Product details
Selling Units:Single item;Model Number:0618WXCC000000001;
Swing Over Bed:7" (180mm);Packaging Detail:carton box packing 7x14 Inch 500w Metal Lathe Machine Metalworking Lathe Used Small Metal Lathe for Sale;
Warranty:1 YEAR;Function:Machining Metal;
Width of bed (mm):100;Machining Capacity:Medium Duty;
Showroom Location:None;Structure:Flat Bed Lathe;
Condition:New;Dimension(L*W*H):85x38x34;
Name:Metal lathe machine;Precision:High Precision Machine;
Travel (Z Axis)(mm):76;Number of Axes:4;
Keywords:550W metal lathe;Spindle Bore(mm):180 m'm;
After-sales Service Provided:Video technical support;Power(W):550W;
Distance Between Centers:14" (350mm);Travel (X Axis)(mm):54;
Local Service Location:None;Place of Origin:China;
Brand Name:Vevor;Max. Spindle Speed (r.p.m):2500 r.p.m;
Max. Swing Diameter:65mm;Positioning Accuracy (mm):0.01 mm;
Key Selling Points:Competitive Price;Spindle Motor Power(kW):550W;
Type:Horizontal;Variable Speed Gear:Plastic Nylon;
Tool Post Stations:None;Weight (KG):47;
Automatic Grade:Semi-automatic;Voltage:110V/220V;
Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops;Single package size:83X37X36 cm;
Max. Swing Diameter (mm):32 mm;After Warranty Service:Online support;
Single gross weight:47.0 KG;No. of Spindles:4;
Certification:CE ISO;Max. Length of Workpiece (mm):180 mm;

7x14 Inch 500w Metal Lathe Machine Metalworking Lathe Used Small Metal Lathe for Sale

Product Description
Product nameMetal Cnc Lathe
Variable Speed GearPlastic Nylon
Spindle TaperMT3
Tail Stock TaperMT2
Distance Between Centers14" (350mm)
Swing Over Bed7" (180mm)
Chuck Diameter3.93" (100mm)
Spindle Bore0.8" (21mm)
Cross Slide Travel2.56" (65mm)
Top Slide Travel1.38" (35mm)

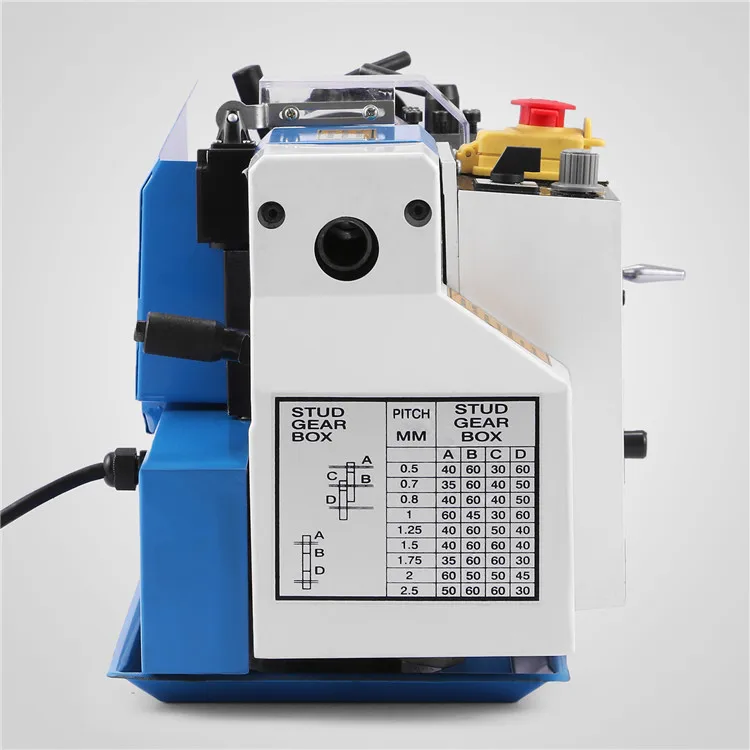

Range of Metric Threads0.5-2.5" (12-52 T.P.I Range of Imperial Threads)
Spindle Accuracy0.0004" (0.01mm)
Spindle Speed100-2500 RPM Infinitely Variable
Power Of Motor0.75HP/550W/110v
Net Weight50kg

This precision mini lathe is designed to perform various types of metal turning. This machine can be used in areas such as mini precision parts processing, sample processing and modeling works. The precision mini lathe is perfect for the hobbyist or modeler who is looking to add finite detail to their construction project.

Whether you’re turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge! With 18 threads, automatic feed and a chuck guard with micro switch, this mini lathe is ideal for use in labs, workshops, engineering and educational settings.

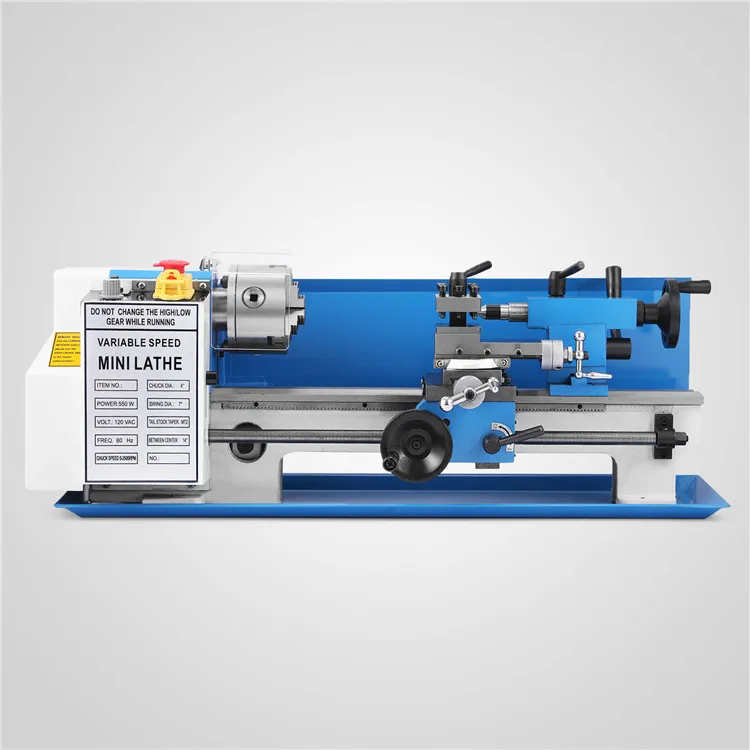

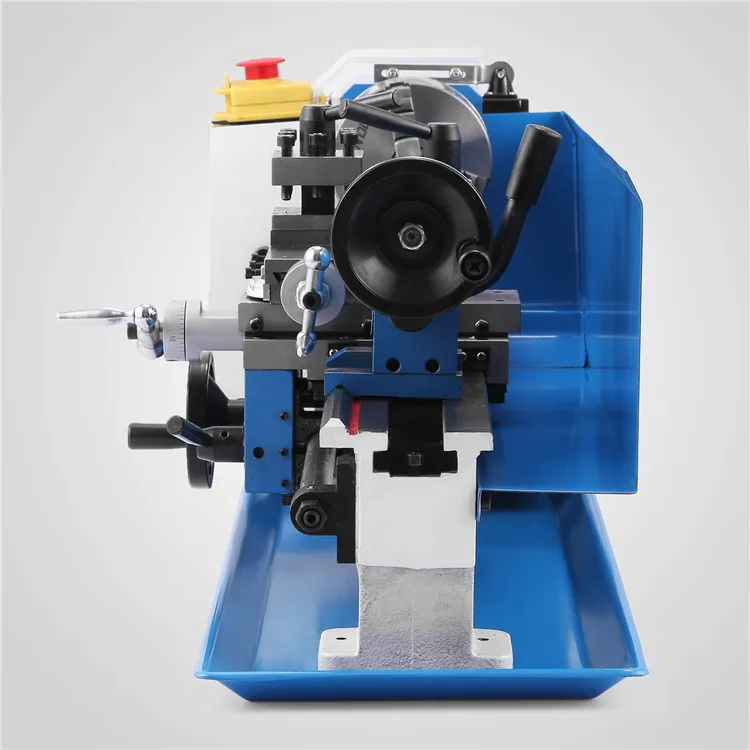

Detailed Pictures

Attention:

1. Make sure the machine is leveled before Power on the machine.

2. Before starting up, make sure that the voltage is within the working voltage range(between 105-120V ).

3. Make sure that the gap between the middle plate or guide is moderate, not too small.Moving the plate by swiving the wheel to make sure the plate can move smoothly

4. The cutting amount should be controlled within 1.5mm for steel , 2.5mm for Alumium and copper to prevent damage of the motor or the motor circuit board due to overload.



Product advantage:

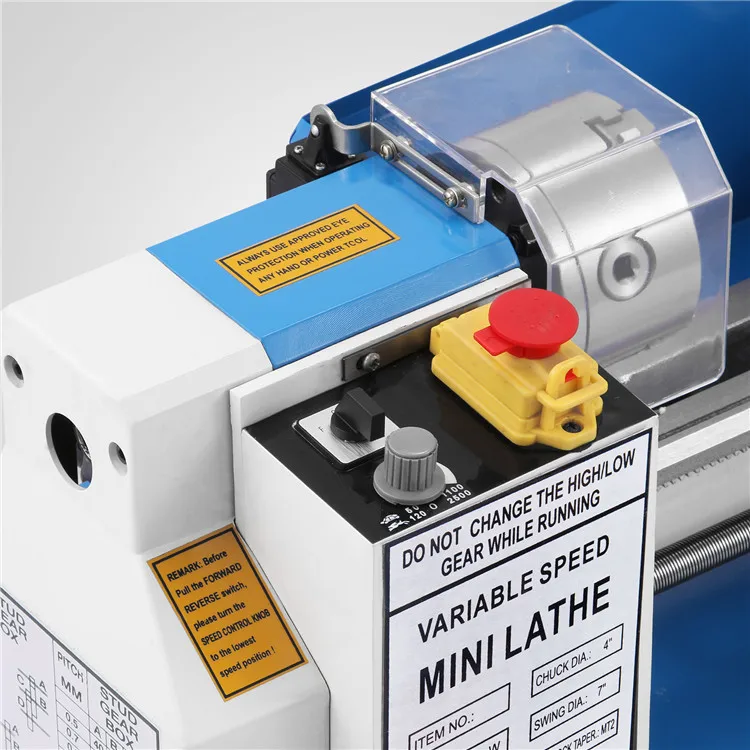

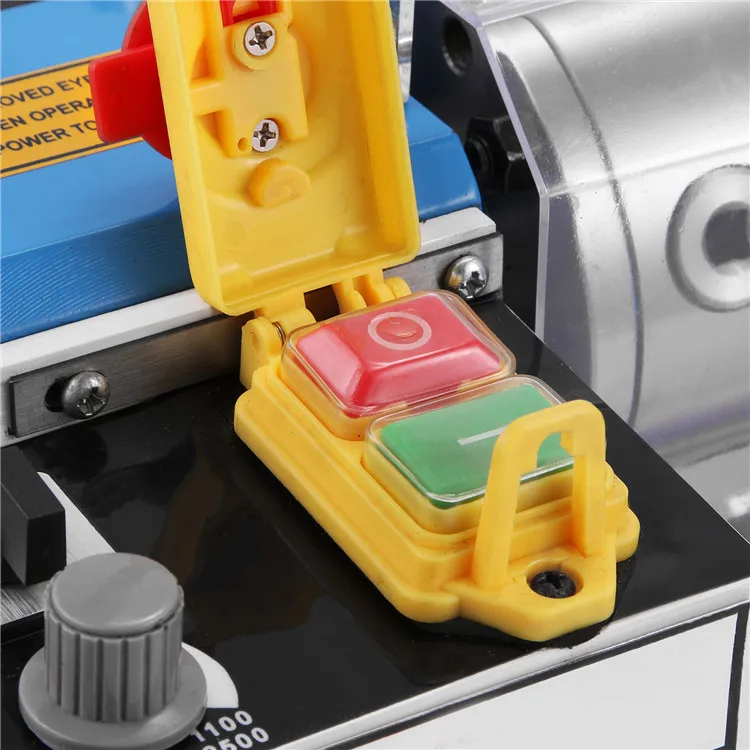

  • Open the switch to start the operation, do not need to worry about not touch the boot to bring security risks, emergency shutdown, just take the red cover to shut down, very safe.
  • Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized, but also lateral movement.
  • By adjusting the speed switch can control the spindle speed 100 to 2500RPM.
  • Machine is equipped with strong nylon gears, power strong, wear-resistant, durable, more accurate rotation. In particular, the thread is more accurate.
  • Machine using four-way rotating turret, which can be four common turning.

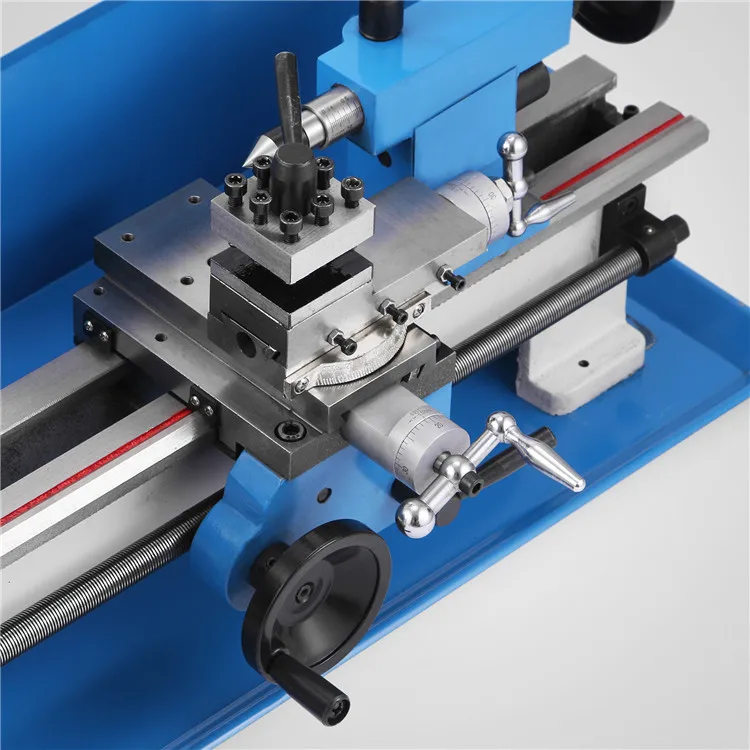

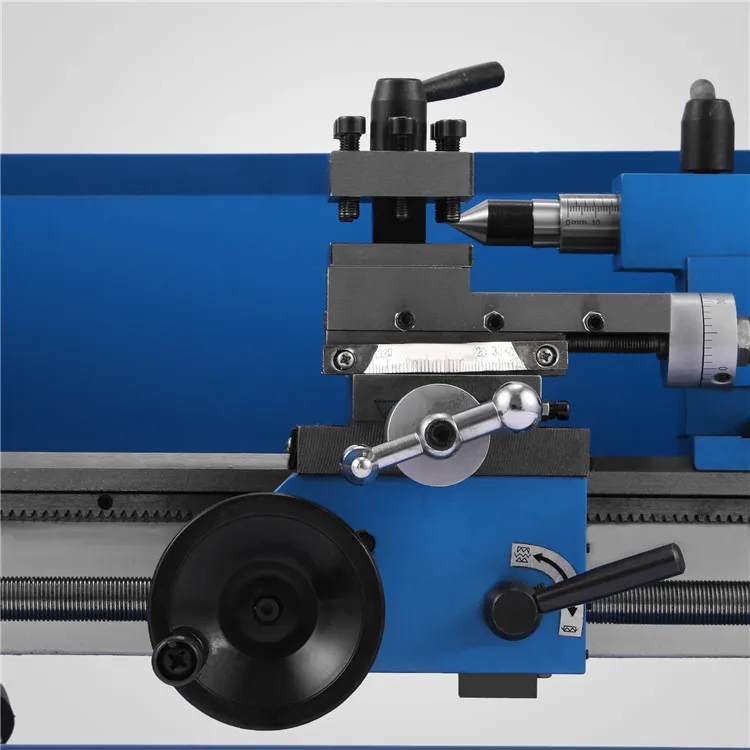

  • Large slide mobile handle, small slide mobile handle, bed saddle mobile handle, tailstock mobile handle, tailstock telescopic cover, tailstock side of the moving position of the scale, the operation more accurate, more professional performance.
Features
  • This machine DC motor drived.
  • The spindle speed readout is infinitely variable from 100 to 2500RPM.
  • Spindle speed adjusted by MCU.Rotary direction"F"or"R"changed by key.
  • The feed can be adjusted according to the requirement of different workpieces.
  • This can be used as mini precision parts processing, sample processing, and modeling works.
  • Automatic feeding.
  • 550w strong power, 350mm processing distance, DIY processing of metal, wood.
  • With high precision, can turn out the standard qualified works.
  • Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.
  • Multi-function and multi-usage, can be turned within the foreign aid, turning thread, turning taper and so on.
  • Automatic tool, Infinitely variable, professional tool post.
Packaging & Shipping
  • MS2 # Fix The Top
  • Double-Headed Wrench
  • Oil Can
  • Nylon Gears
  • Chuck Claw
  • Hexagon Bar Wrench
  • Chuck Wrench
  • Protecting Mask
  • 4 × Shockproof Foot Cushion
