motorcycle cdi racing cdi lc 135 for YMH lc135 cdi high performance Unlimited speed 9 ignition curve

Supplier: Chongqing Songhe Science & Technology Co., Ltd.
Region: Chongqing, China
Contact: Mr James Cheung
Price: $7.80 /piece
Min. Order: 1 piece

Click here to contact

Product details

Features:	Unlimited speed,9 ignition curve;	Color:	black, blue , yellow,red;
Place of Origin:	Chongqing, China (Mainland);	Packaging Detail:	WHITE BAG/BOX PACKING, COLOR BAG/BOX PACKING, ACCORDING TO CUSTOMER'S PACKING REQUIREMENT.;
Package Preview:	https://sc01.alicdn.com/kf/H09c084938ba44e9ba20e54603d7b2fd69.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H1eb170d6cea94da1ae214033e033c02fa.jpg_640x640.jpg;	Product Name:	RACING CDI UNIT;
Model:	LC135;	Material:	Plastic + electronic components;
Certification:	CQC ISO9001;	Quality:	OEM and good quality 100%;
Single package size:	10X10X7 cm;	Brand Name:	SM SH;
OEM:	Yes;	Payment term:	different method available;
Size:	766926mm;	Type:	CDI UNIT,Capacitor discharge type (CDI);
Single gross weight:	0.6 KG;	Selling Units:	Single item;
Warranty:	1 year;

CDI-4

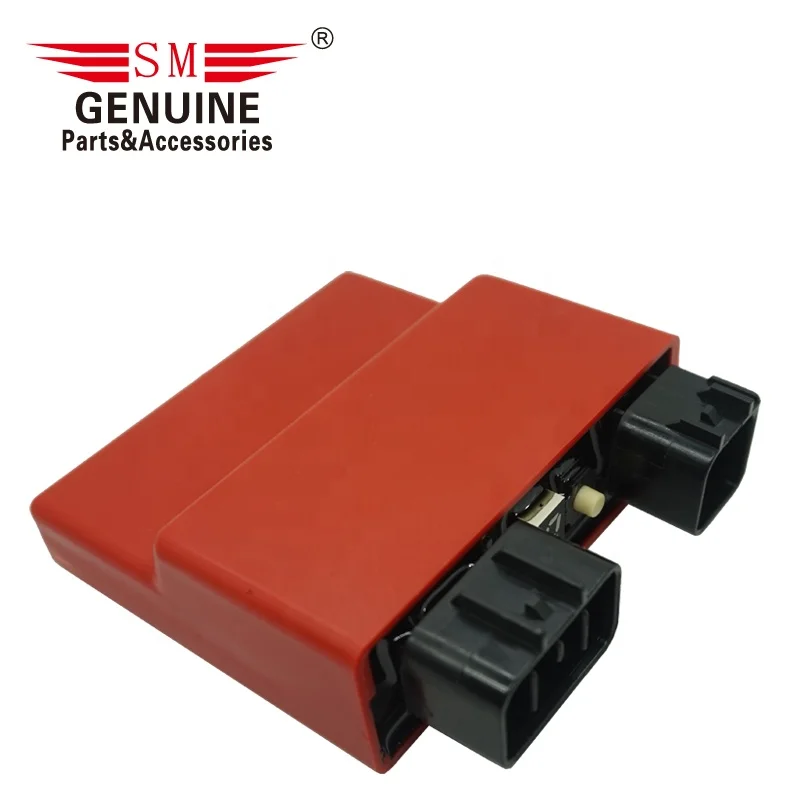

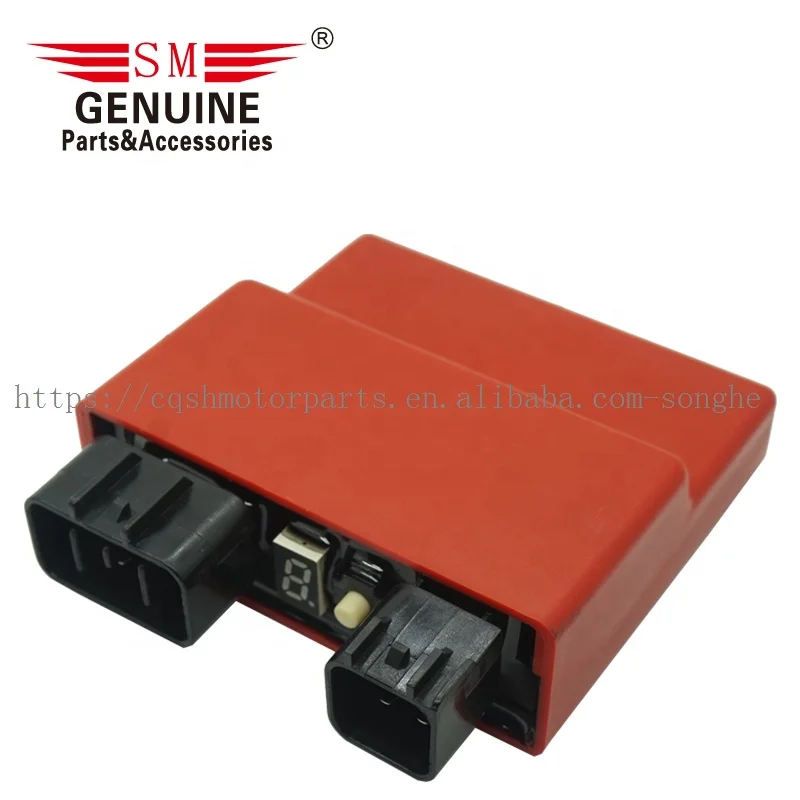

Motorcycle cdi racing cdi lc 135 for YMH lc135 cdi high performance Unlimited speed 9 ignition curve

Technical requirements

Origin	Chongqing, China
Manufacturer	CHONGQING SONGHE SCIENCE&TECHNOLOGY CO., LTD.

1, The ignition characteristics:
--DC power supply, capacitor discharge ignition;CDI UNIT;
--Ignition energy into the corner, low-speed, high-speed ignition performance;
--Operating temperature range: -30°C to+65°C;
--Using SMT Surface Mount Technology, anti-jamming capability, environmental adaptability, high reliability;
2,Product performance:
--Minimum continuous ignition speed: ≤200r/min (three-pin 6mm intermittent trigger gap was 0.7mm);
--Continuous ignition speed range: ≤200r/min ~ 11000r/min (three-pin intermittent 6mm, trigger gap was 0.7mm);
--Into the corner speed: 2000±200r/min (0±1.5°);
--End angle, speed: 6800±200r/min (20±1.5°);
--Ignition advance angle: 52°±1.5°;
--Turn off the SW end of the ground, ignition should turn off;
3,Appearance requirements:
--Patch device and igniter shell at the bottom of the vertical tilt;
--Package surface should be smooth, free of cracks and other foreign matter;
--Encapsulation material and the shell is bonding well, without gaps, and should fully cover the components;
--Package surface height should not exceed the shell height, and the surface is smooth and no bubbles;
4, Igniter insulation resistance shall be not less than 1MΩ (measured with 500V megger);
5, In line with the motorcycle JB/T8123.1 ~ 8123.2-1999 standards;
