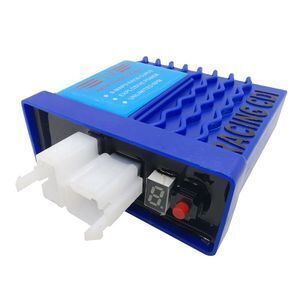

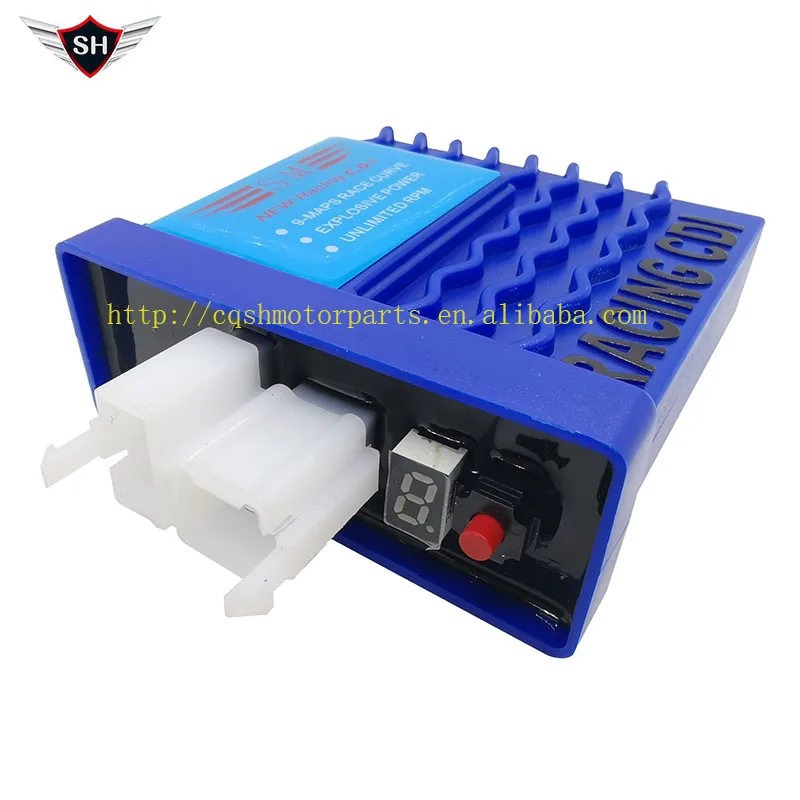

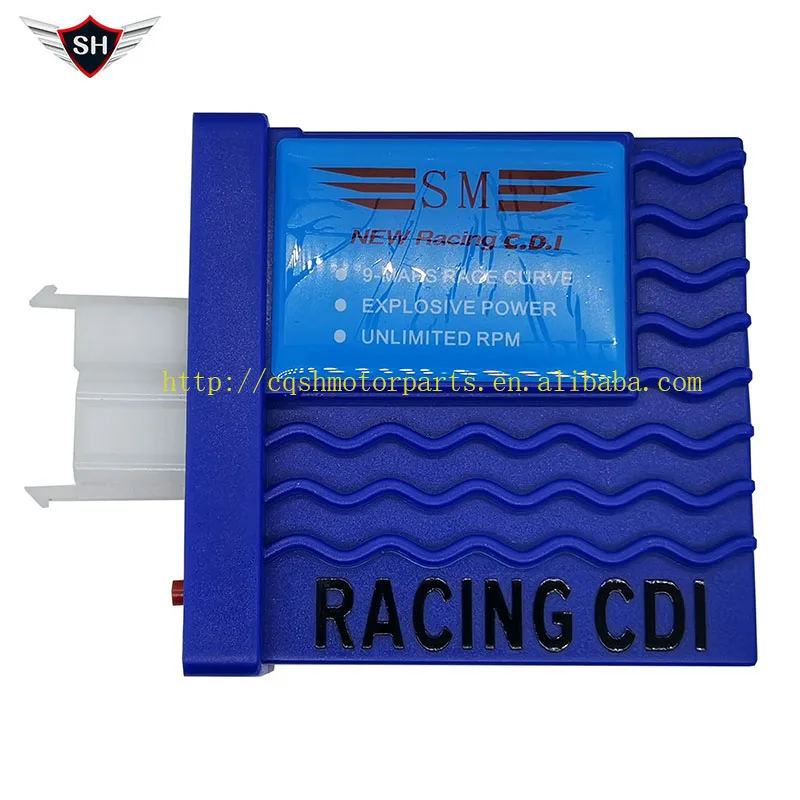

Racing quality circulation programmable adjustable CG125 CG150 CG200 CG250 DC ACmotorcyccle ignition racing cdi

Supplier: Chongqing Songhe Science & Technology Co., Ltd.
Region: Chongqing, China
Contact: Mr James Cheung
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	WHITE BAG/BOX PACKING, COLOR BAG/BOX PACKING, ACCORDING TO CUSTOMER'S PACKING REQUIREMENT.;	Color:	Black;
Quality:	OEM and good quality 100%;	Single gross weight:	0.35 KG;
Single package size:	10X10X5 cm;	Type:	CDI UNIT;
Certification:	CQC ISO9001;	Packing:	Standard;
Product Name:	Cdi Unit;	Material:	Plastic+electronic components;
Place of Origin:	Chongqing, China (Mainland);	parts code:	32900HM8153;
Size:	1007027mm;	type:	Capacitor discharge type (CDI);
Selling Units:	Single item;	Brand Name:	SH SM;
Package Preview:	;	Model:	CG125 CG150 CG200 CG250 DC AC;
Warranty:	1year;	OEM:	YES;

CDI-4

Racing quality circulation programmable adjustable CG125 CG150 CG200 CG250 DC ACmotorcyccle ignition racing cdi

Technical requirements

MANUAFCTORY	SONGHE
ORIGIN	CHONGQING,CHINA

1, The ignition characteristics:
--DC power supply, capacitor discharge ignition;CDI UNIT;
--Ignition energy into the corner, low-speed, high-speed ignition performance;
--Operating temperature range: -30°C to+65°C;
--Using SMT Surface Mount Technology, anti-jamming capability, environmental adaptability, high reliability;
2,Product performance:
--Minimum continuous ignition speed: ≤200r/min (three-pin 6mm intermittent trigger gap was 0.7mm);
--Continuous ignition speed range: ≤200r/min ~ 11000r/min (three-pin intermittent 6mm, trigger gap was 0.7mm);
--Into the corner speed: 2000±200r/min (15±1.5°);
--End angle, speed: 3800±200r/min (36±1.5°);
--Ignition advance angle: 21°±1.5°;
--Turn off the SW end of the ground, ignition should turn off;
3,Appearance requirements:
--Patch device and igniter shell at the bottom of the vertical tilt;
--Package surface should be smooth, free of cracks and other foreign matter;
--Encapsulation material and the shell is bonding well, without gaps, and should fully cover the components;
--Package surface height should not exceed the shell height, and the surface is smooth and no bubbles;
4, Igniter insulation resistance shall be not less than 1MΩ (measured with 500V megger);
5, In line with the motorcycle JB/T8123.1 ~ 8123.2-1999 standards;
