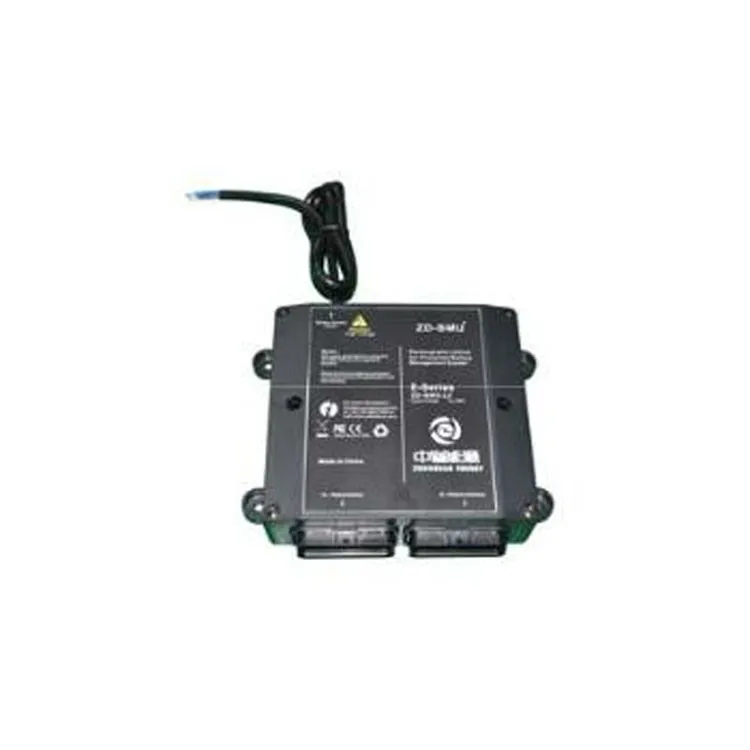

lifep04 Li-ion Battery Pack BMS/PCM/battery management system for e-bike

 Li-ion Battery Pack BMS/PCM/battery management system for e-bike

Features

1.Monitor temperature, voltage, current, SOC,

2.battery module error information

3.One BMS can manage multiple battery modules

4.CANbus or RS-485 communications for control and

management

5.Digital and analog I/O

6.Battery-to-battery balance control

7.Pre-discharge and pre-charge control

8.Control of up to 4 contactors

9.Insulation measurement

10.Sleep mode when key signal ‘OFF’

The product has 6 main functions: over charge, over discharge, over current, short circuits, balancing and low-current lock.

1. Function of over charge protection: once voltage of any battery in the pack gets higher than the over charge protection point, charge cuts off to ensure all batteries work within the over charge protection point.

2. Function of over discharge: once voltage of any battery in the pack gets lower than the over charge protection point, discharge cuts off to ensure all batteries work beyond the over charge protection point.

3. Function of over current: during the discharge process of battery pack, once discharge current gets over the set over current protection point, output cuts off to ensure battery pack works within the safe limit of current.

4. Function of short circuit protection: once battery pack’s output port appears the condition of short circuit, it cuts off to ensure battery group not to be damaged because of short circuit.

5. Function of voltage balancing: in the late charging period of battery pack, voltage difference that appears during the using process of each battery could get balancing revised to ensure battery pack’s capacitance.

6. Function of low-current lock: series connection of low-current lock gets reserved and low current controls on-and-off of the main high current to make it safer and more convenient.
