TZBOT 24V 200w Automatic AGV Wheels Drive Unit for Magnetic Navigation AGV

Product details
Output Torque:19.2N.m;Rate Speed:3000r/min;
Supply Ability:1000 Piece/Pieces per Month;Drive Speed:42m/min;
Place of Origin:Zhejiang China (Mainland);Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Rated Current:10.5A;Type:DC;
Reduce Ratio:1:30;Rated Torque:0.64N.m;
Rate Voltage:24V;Power:200W;
Brand Name:TZBOT;Port:Shanghai Ningbo;
Packaging Detail:1.standard export package 2.customized packing way;
Product Description

Model

    TZDL-200-30

Moto Type

D.C

Power S2-60 min

100 W

Rate Voltage

24 V

Rate Current

10.5A

Rate Speed

3000 r/min

Rate Torque

0.64 Nm

Gear Ratio

30i

Wheel Diameter

135mm

Output Torque

19.2A

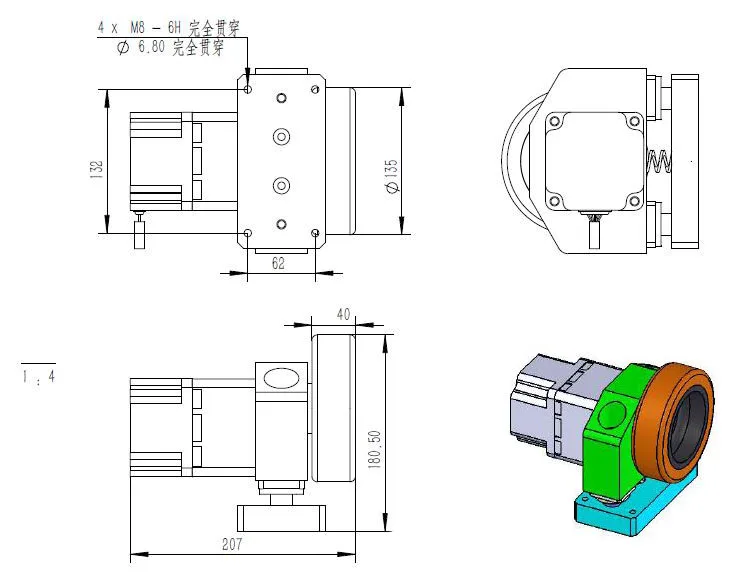

Dimension

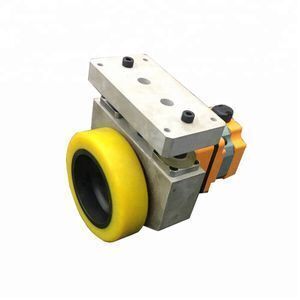

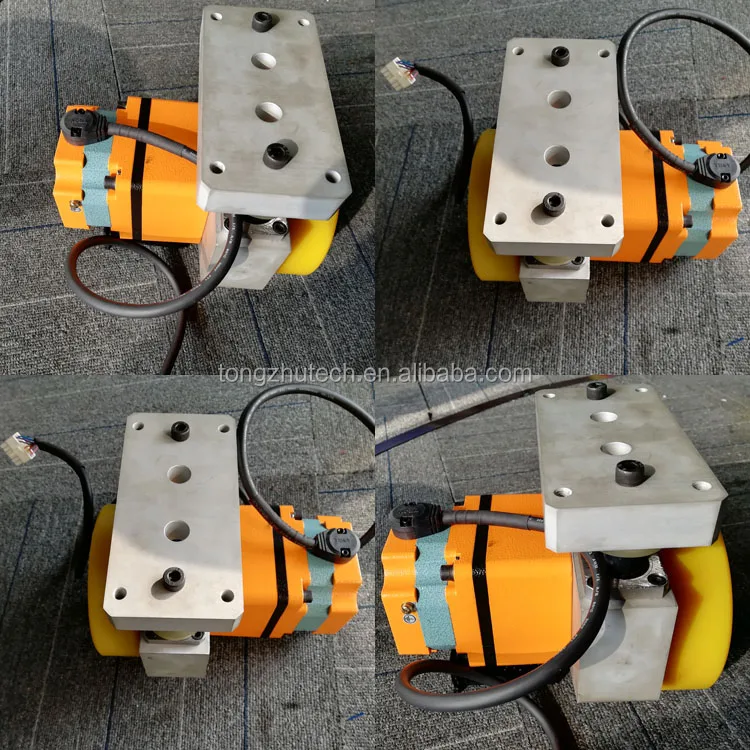

Product Pictures

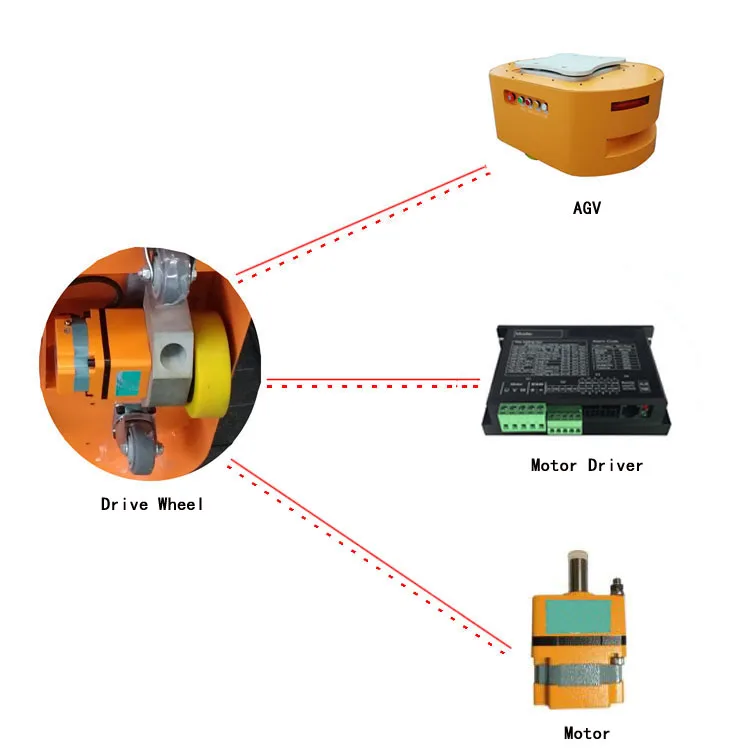

 Solution

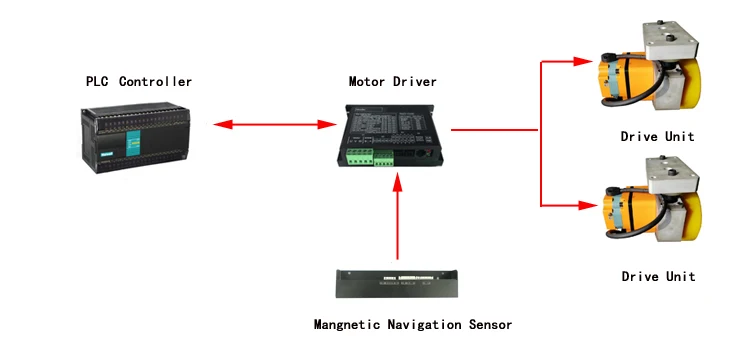

Application







Features:

1. Single wheel design can adjust position according to agv width
2. Suspension device with shock absorption
3. Interface standardization, convenient connection and simple control
4. The motor driver can be with magnetic navigation algorithm to facilitate users to develop AGV

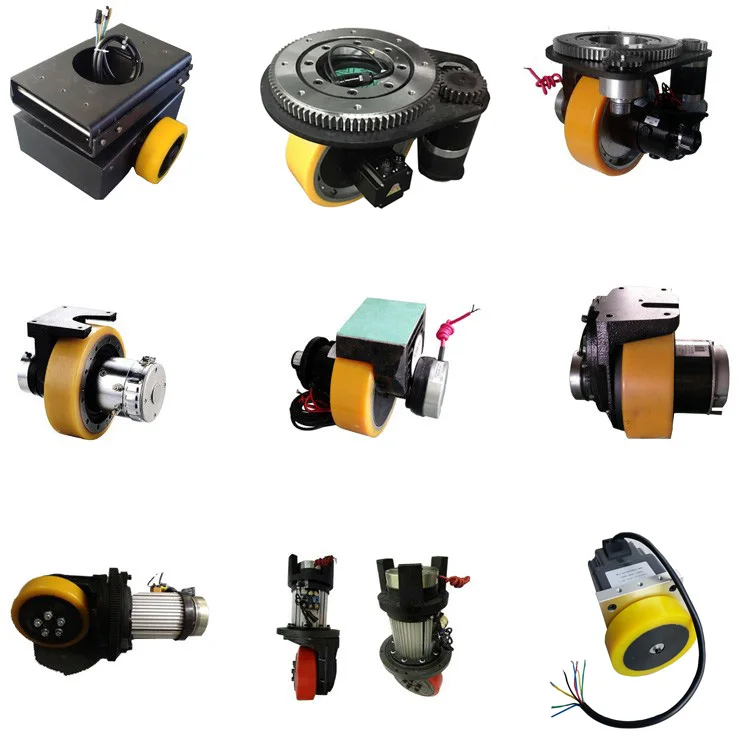

Related Products
