Model Number: | RB14025UUCC0P5; | Selling Units: | Single item; |
Applicable Industries: | Manufacturing Plant; | Single gross weight: | 2.96 KG; |
Single package size: | 14X20X2 cm; | Brand Name: | MONTON; |
Type: | Special; |

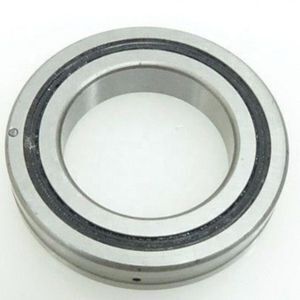

RB14025UUCC0P5
Bearings | inner ring | outer ring | Roller pitch circle diameter | width | Greasing hole | Chamfer | Shoulder height | Basic load rating(radial) | weight | |||
d | D | dp | B B1 | a-b | r(min) | ds | Dh | C | C0 | Kg | ||
(mm) | (mm) | (mm) | (mm) | (mm) | kN | kN | ||||||
140 | RB14025 | 140 | 200 | 168 | 25 | 3.5-2 | 2 | 154 | 185 | 74.8 | 121 | 2.96 |
RB Series Crossed roller bearing Introduction
RB (Separable Outer Ring Type for Inner Ring Rotation)
Being the basic model of the Cross-Roller Ring, its outer ring is separable while the inner ring is integrated with the main body. This model is used in locations where the rotation accuracy of the inner ring is required. Major applications include the index table swiveling unit of machine tools.
Series Model No.:
RB2008UUCC0, RB2508UUCC0, RB3010UUCC0, RB3510UUCC0, RB4010UUCC0,RB4510UUCC0, RB5013UUCC0, RB6013UUCC0, RB7013UUCC0, RB8016UUCC0,RB9016UUCC0, RB10016UUCC0, RB10020UUCC0, RB11012UUCC0, RB11015UUC0, RB11020UUCC0, RB12016UUCC0, RB12025UUCC0 ,RB13015UUCC0, RB13025UUCC0, RB14016UUCC0, RB14025UUCC0, RB15013UUCC0, RB15025UUCC0 ,RB15030UUCC0 ,RB16025UUCC0, RB17020UUCC0, RB18025UUCC0, RB19025UUCC0, RB20025UUCC0 ,RB20035UUCC0, RB22025UUCC0, RB24025UUCC0 ,RB25025UUCC0 ,RB25030UUCC0 ,RB25040UUCC0, RB30025UUCC0, RB30035UUCC0 ,RB30040UUCC0, RB35020UUCC0 ,RB40035UUCC0, RB40040UUC0,RB45025UUCC0, RB50025UUCC0, RB50040UUCC0, RB50050UUCC0, RB60040UUCC0, RB70045UUCC0,RB80070UUCC0, RB90070UUCC0, RB1000110UUCC0, RB1250110UUCC0
Features of cross roller bearing:
1.with excellent rotational accuracy
2. Installing simplifies operation
3. Bear large axial and radial loads
4.Significant savings in installation space
5. High speed capability is limited to changes .
6. Shaft length and reduce processing costs, the geometry of thermal expansion
7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing
8. Optimization of preload, rigidity, high precision guide rollers running
9. Carburizing steel provides excellent impact resistance and surface abrasion resistance
10. Simple but adequate lubrication
Applications:
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
Crossed Roller Bearings Profile:
