Packaging Details: | single box | brand: | Monton |
model: | RB11015UUCC0P5 | Single package size: | 11X15X3 cm |
type: | special | Accuracy class: | P5 |
Gross weight per piece: | 0.750 kg | Applicable industries: | robot technology |
Sales unit: | single product |

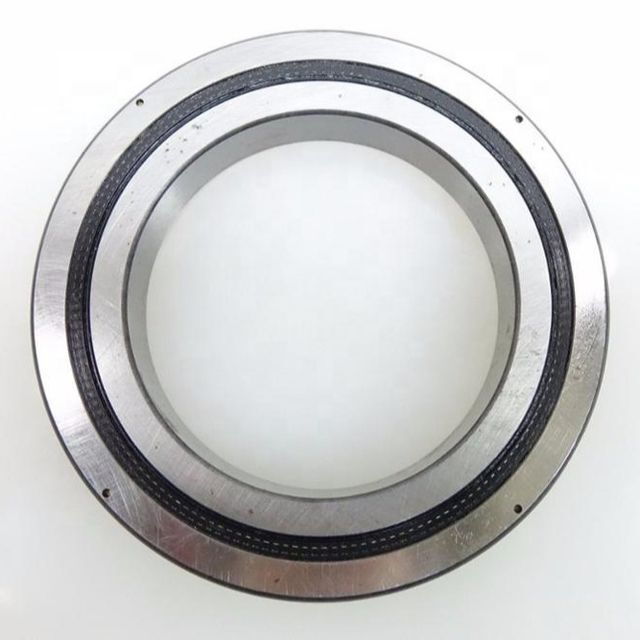

RB11015UUCC0P5

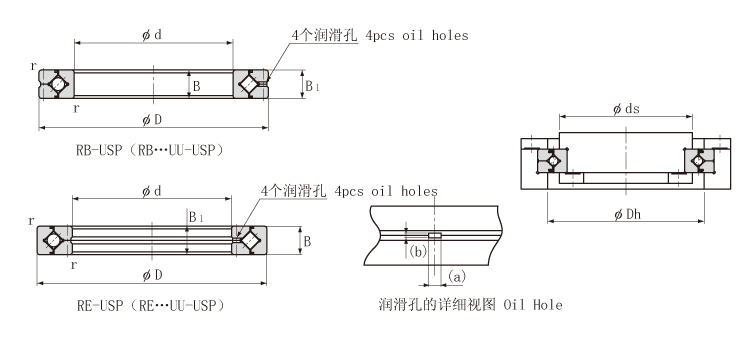

Shaft diameter | bearing | inner ring | outer ring | Roller pitch diameter | width | Lubrication hole | chamfer | Shoulder height | Basic load rating (radial) | weight | ||
d | D | dp | B B1 | Antibody | r(min) | ds | DH | C | C0 | Kilogram | ||
(mm) | (mm) | (mm) | (mm) | (mm) | kN | kN | ||||||
110 | RB11015 | 110 | 145 | 126.5 | 15 | 3.5-1.6 | 1.6 | 122 | 136 | 23.7 | 41.5 | 0.75 |

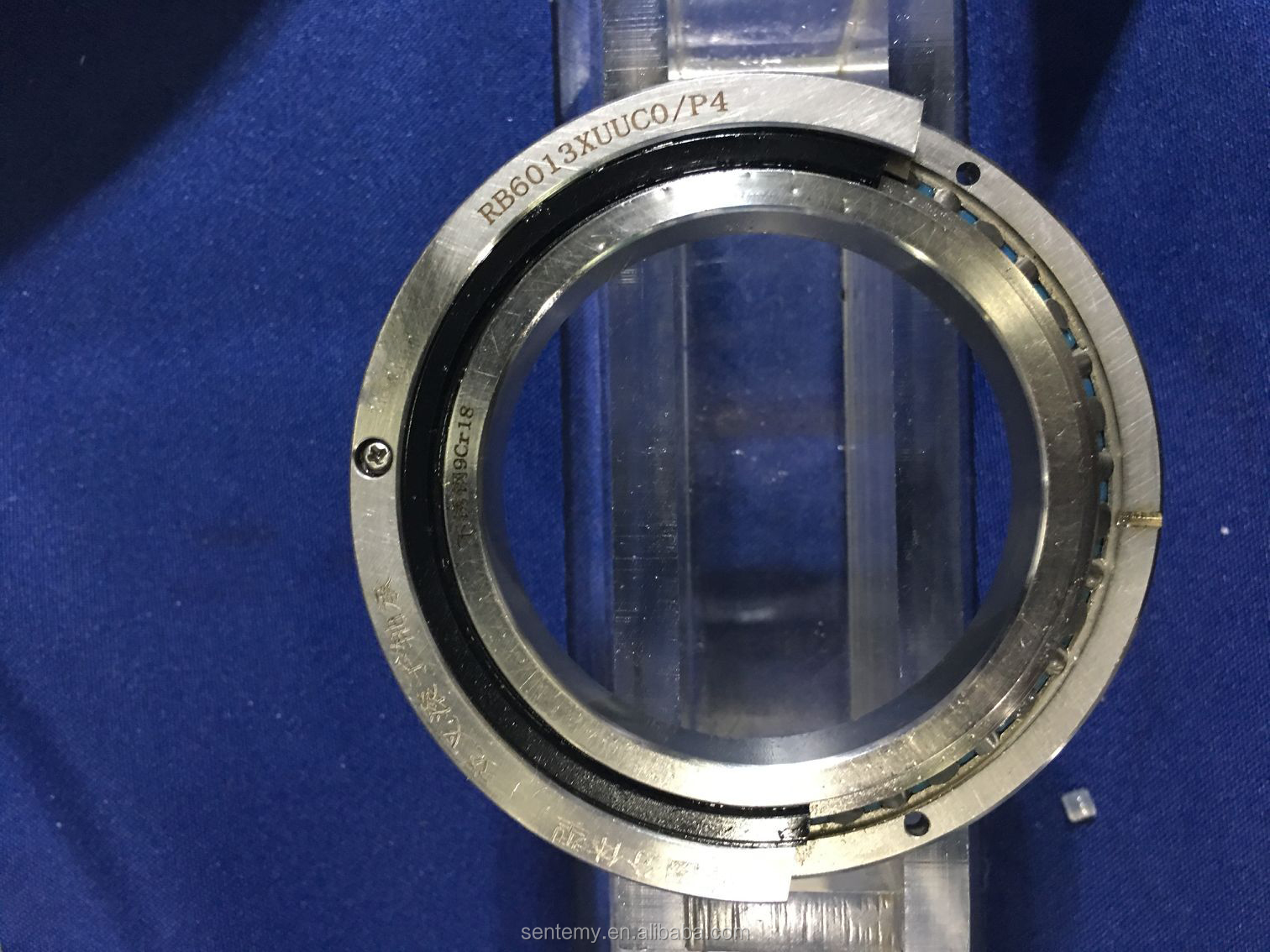

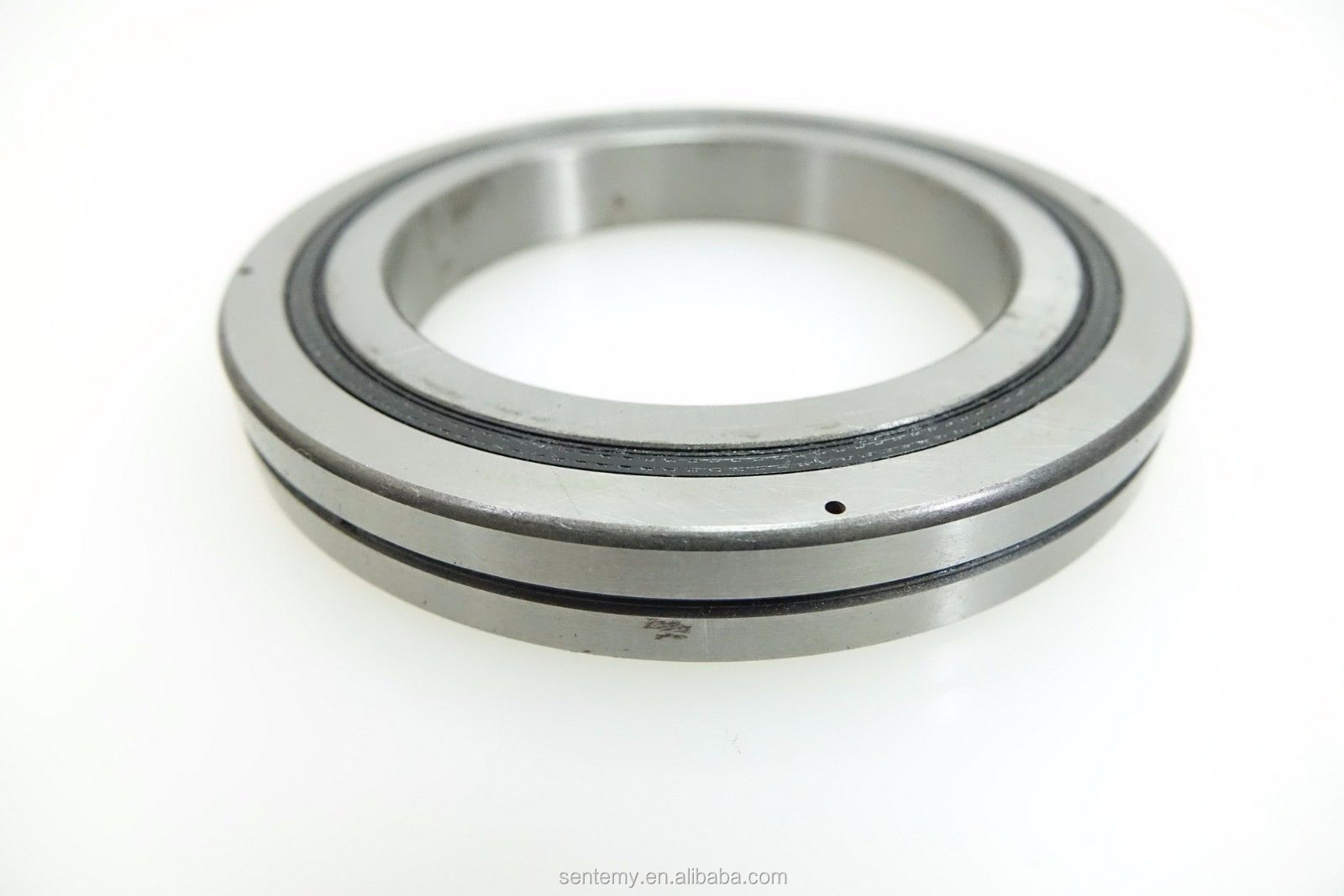

Brief introduction of RB series crossed roller bearings
RB (Inner Ring Rotation Separation Outer Ring Type)
As the basic model of the crossed roller ring, its outer ring is separable, while the inner ring is integrated with the body. This model is used where rotation accuracy of the inner ring is required. Main applications include indexing table rotary units for machine tools.
Series model:
RB2008UUCCO, RB2508UUCCO, RB3010UUCCO, RB3510UUCCO, RB4010UUCCO,RB4510UUCCO, RB5013UUCCO, RB6013UUCCO, RB7013UUCCO, RB8016UUCCO,RB9016UUCCO, RB10016UUCCO, RB10020UUCCO, RB11012UUCCO, RB11015UUC0, RB11020UUCC0, RB12016UUCC0, RB12025UUCCO ,RB13015UUCCO, RB13025UUCC0, RB14016UUCC0, RB14025UUCCO, RB15013UUCCO, RB15025UUCCO ,RB15030UUCCO , RB16025UUCCO, RB17020UUCCO, RB18025UUCCO, RB19025UUCCO, RB20025UUCCO ,RB20035UUCCO, RB22025UUCCO, RB24025UUCCO ,RB25025UUCCO ,RB25030UUCCO ,RB25040UUCCO, RB30025UUCCO, RB30035UUCCO ,RB30040UUCCO, RB35020UUCCO ,RB40035UUCCO, RB40040UUCO,RB45025UUCCO, RB50025UUCCO, RB50040UUCCO, RB50050UUCC0, RB60040UUCCO, RB70045UUCCO,RB80070UUCCO, RB90070UUCCO, RB1000110UUCCO, RB1250110UUCCO
Features of Crossed Roller Bearings:
1. Has excellent rotation accuracy
2. Simplified installation
3. Bear large axial and radial loads
4. Significantly save installation space
5. High speed capability is limited to variation.
6. Shaft length, reduce machining cost, thermal expansion geometry
7. Nylon gasket, low inertia, low starting torque, easy to control angle indexing
8. Optimizing preload, rigidity, and high-precision guide roller operation
9. Carburized steel provides excellent impact resistance and surface wear resistance
10. Simple but adequate lubrication
application:
•Industrial robot arm, reducer drive
•Precision turntable, CNC turntable
• Machine tool rotating part
• Testing instruments, medical equipment
• Aviation equipment, military radar, etc.
