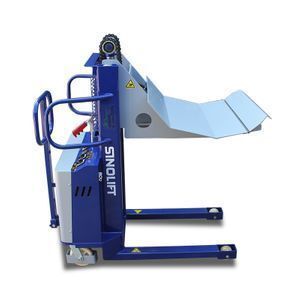

SINOLIFT CTD1000- M700 Electric Roll Paper Stacker

Product details
Barycentre:500mm;Brand Name:SINOLIFT;

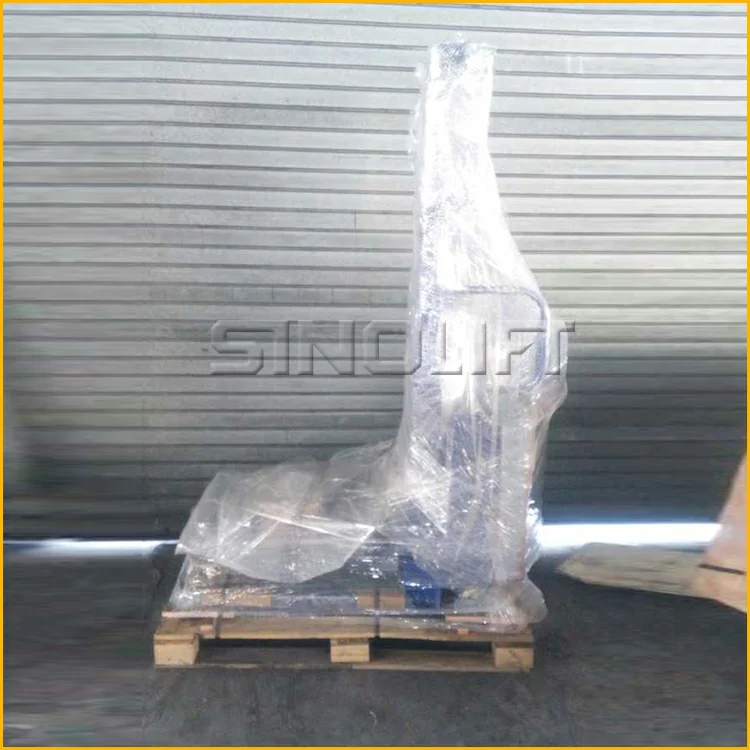

Dimension(L*W*H):1310*1230*720;Packaging Detail:Packing details: export standard, plywood pallet;
Front Wheels:78X70mm;After-sales Service Provided:Online support;
Weight:285kg Roll Paper Stacker;Certification:CE ISO9001;
Max. Diam. Bobine:1000mm;Min. Steering Range:1160mm;
Warranty:1 Year;Max Lift of the Plate.:841mm;
Max. Width Bobine:1500mm;Load Capacity:1000kg Roll Paper Stacker;
Port:Shanghai;Place of Origin:Shanghai China;
Supply Ability:1000 Piece/Pieces per Month SINOLIFT CTD1000- M700 Electric Roll Paper Stacker;Model:CTD1000-M700 Roll Paper Stacker;
Condition:New;Rear Wheels:180X50mm;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;

SINOLIFT CTD1000- M700 Electric Roll Paper  Stacker

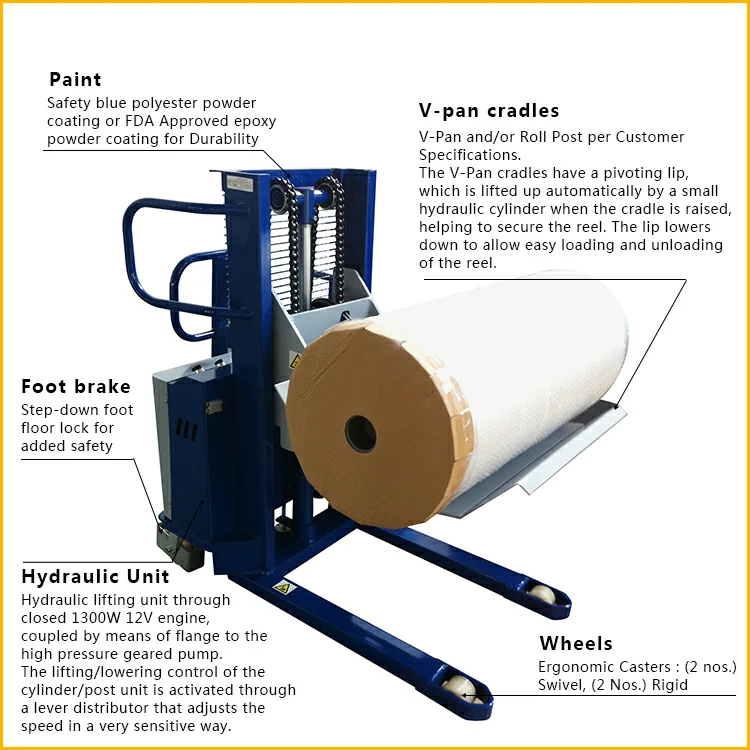

Product Description

 1. V-Pan and/or Roll Post per Customer Specifications

2. Ergonomic Casters : (2) Swivel, (2) Rigid

3. Step-down Foot Floor Lock for added Safety

4. Safety blue polyester powder coating or FDA Approved epoxy powder coating for Durability

5. FDA Approved epoxy powder coating

6. 12-volt D.C. power lift, AC Powered Lift, Pneumatic Lift or Air over Hydraulic Lift

7. Increased lift height or customized V-Pan size

8. 8” wheels for rough surfaces

9. Scales with or without intrinsically safe indicators

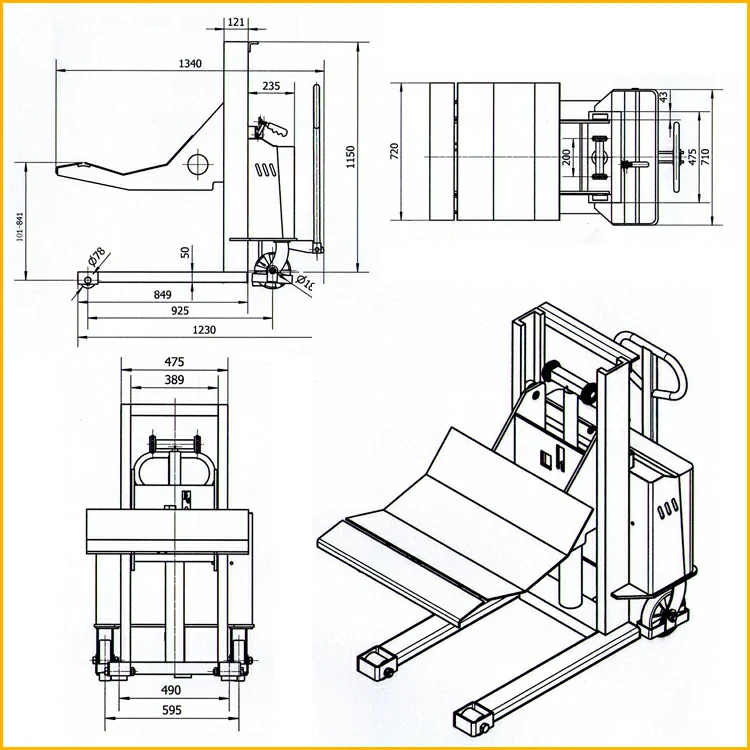

Technical Date

 SINOLIFT CTD1000- M700 Electric Roll Paper  Stacker

Models CTD1000-M700
Load CapacityKg.1000
Max Lift of the Plate.E mm.841
BarycentreG mm.500
Min. Steering RangeR mm.1160
Max. Diam. BobineD mm.1000
Max. Width BobineL mm.1500
Frame HeightC mm.1230
Frame WidthB mm.720
Frame LengthA mm.1310
WheelbaseP mm.925
Front Wheels/ x largh mm.78X70
Rear Wheels/ x largh mm.180X50
WeightKg.

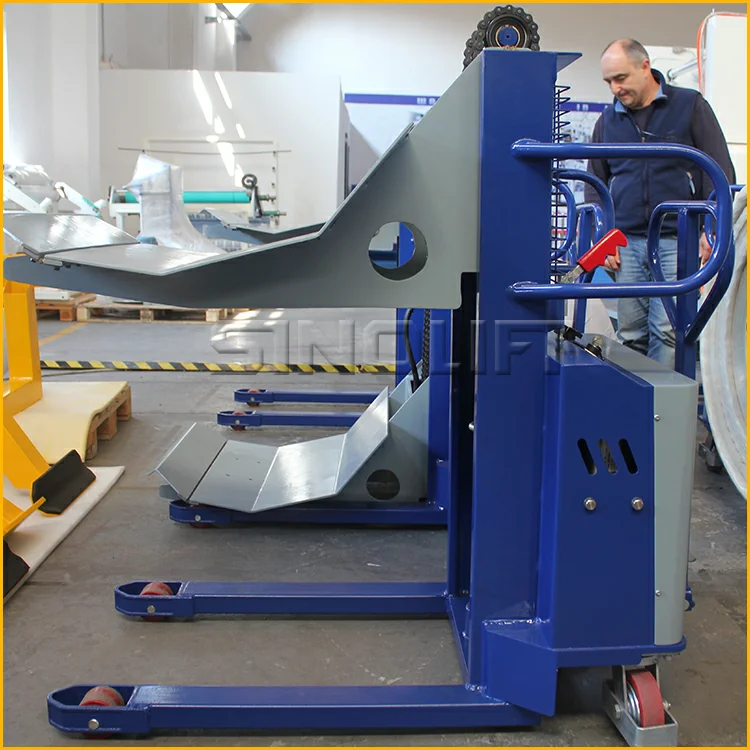

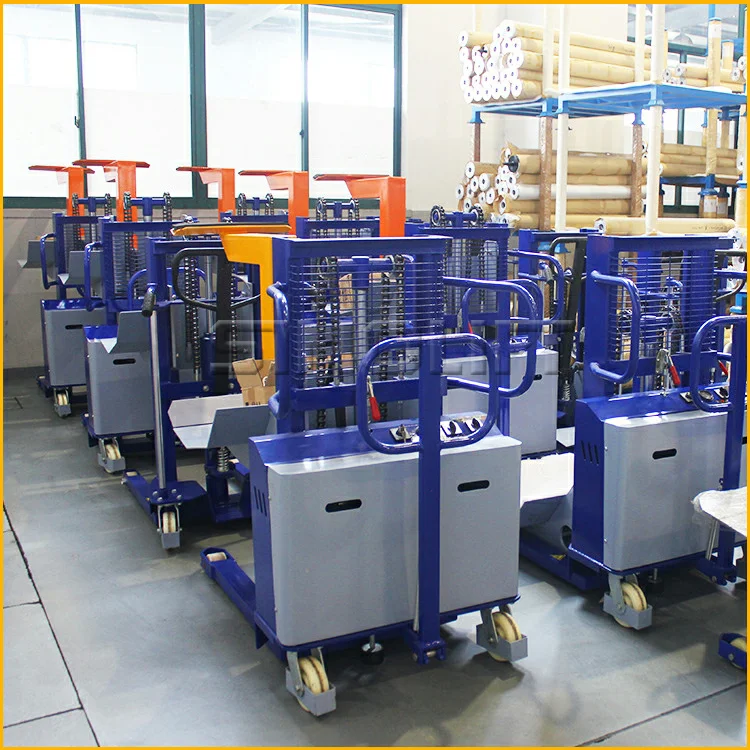

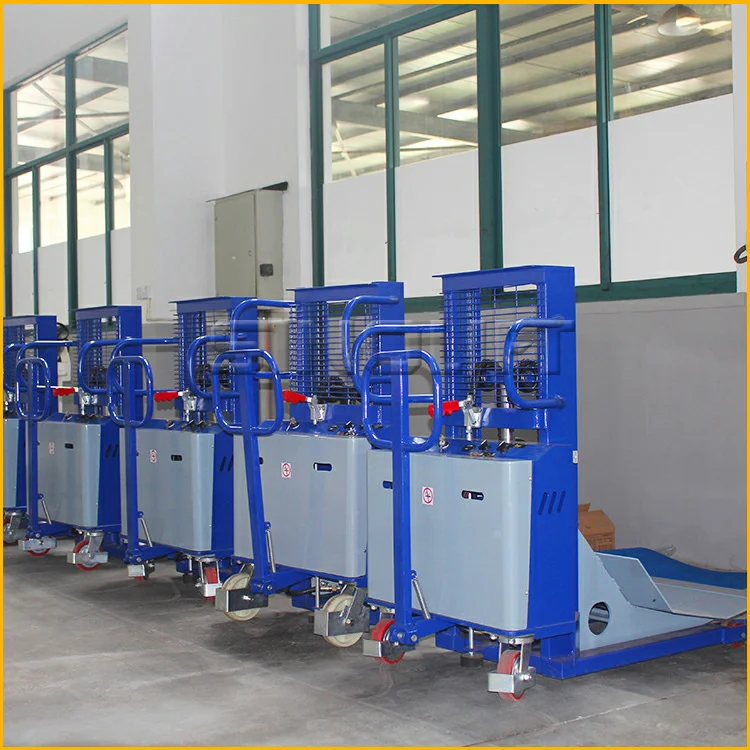

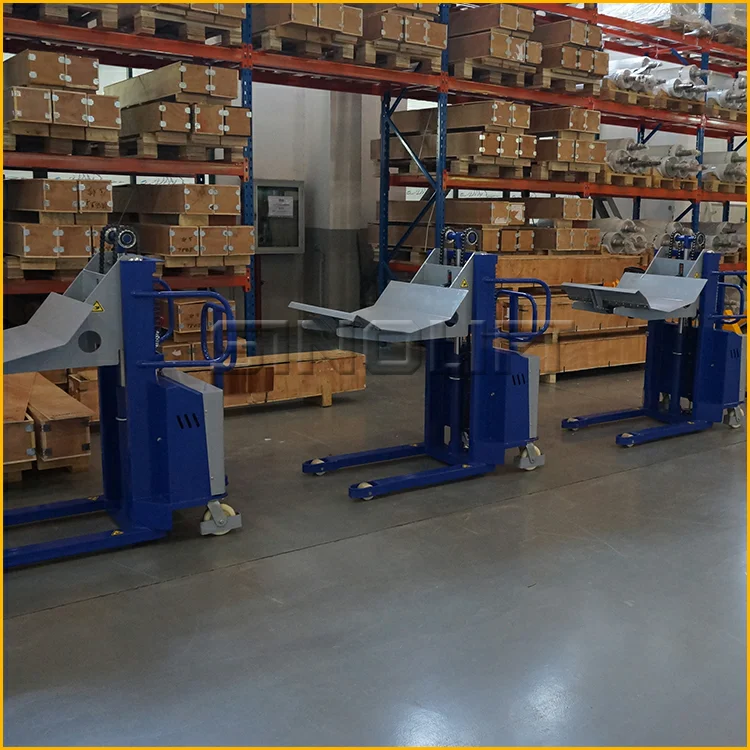

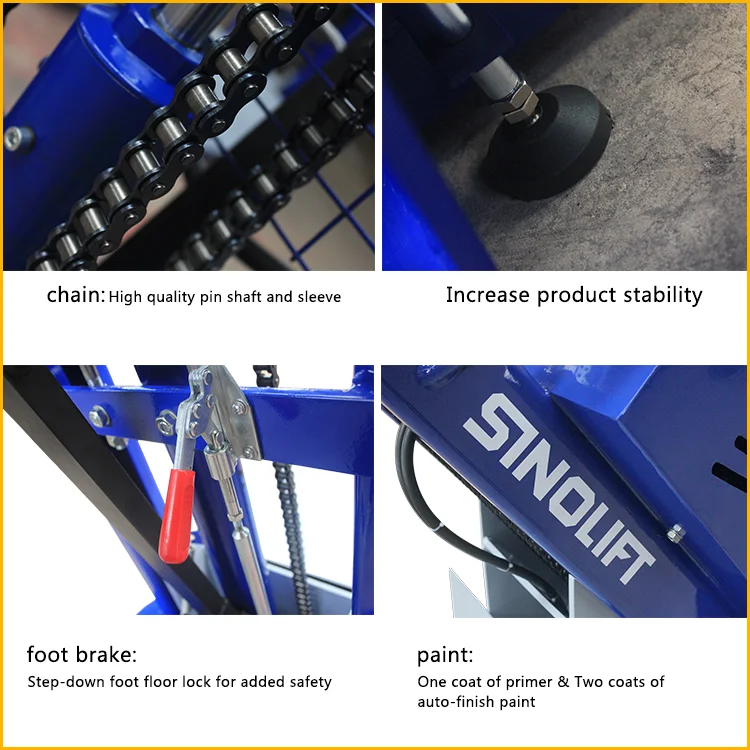

Product Pictures





















Certifications







FAQ

Questions about product

Q1: Warranty for the product?

A1: 12 months warranty on major components and 180 days on wearable items.



Q2: How about the delivery time for the products showed in website?
A1: Normally 15-35 days after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.



Q3: How many days we need for sending shipping documents?
A1:Usually within 5 daysafter vessel shipped out.



Questions about Sinolift

Q1:Are you a manufacturer?

A1: Yes, we have several factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, and In China, we have OKUTSU, LIZHOU,SINOLITE famous brand name to service our Clients. We also have OEM & ODM service experience for worldwide big brand.



Q2:What kind of certificates do you have?
A2: We have ISO9001,14000,18000,CE and GS certificates.



Q3:What's Normal Warranty Policy and service program?

A3: SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.



l  Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department.

l  Please note the warranty is for end user who purchase direct from SINOLIFT.

l  If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

Why Choose Us

1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.



2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.



3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.



4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.



5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.



6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.



7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.



8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.



9- We don’t ask more though we do much better! We offer reasonable price level!



10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
