Max. Weight of Reel: | 1000kg; | Brand Name: | SINOLIFT; |
Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ; | Min.Steering Angle: | 880mm; |
Package Preview: | https://sc02.alicdn.com/kf/HTB1op20X3ZupeRjt_jqq6AfAFXaQ.jpg_640x640.jpg; | Dimension(L*W*H): | 1108*660*1180; |
Reel Max. Diameter: | 800mm; | Selling Units: | Single item; |
Platform Max. Elevation: | 854mm; | Condition: | New; |
Barycentre: | 500mm; | Single gross weight: | 68 KG; |
Package Type: | 4 unit per package; | Load Capacity: | 1000kg Roll Paper Stacker; |
Place of Origin: | Shanghai China; | Model: | CTY1000-M700 Roll Paper Stacker; |
Product name: | Roll Paper Stacker; | Single package size: | 80X20X60 cm; |
Certification: | CE ISO9001; | Weight: | 208kg Roll Paper Stacker; |
Place Of Origin: | Shanghai,China; | Warranty: | 1 Year; |
After-sales Service Provided: | Online support; |

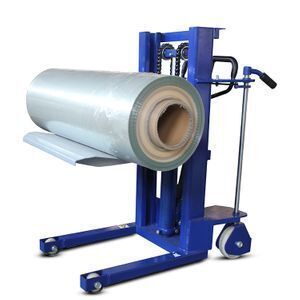

SINOLIFT CTY 1000-M700 Manual Roll Paper Pallet Stacker
Roll Paper Stacker
Structure :
Simplex telescopic Design Single/Two Mast Structure Made From ‘C’ Channel Section, Supported by Heavy-Duty deep grooved guide rollers. Forks lifted by means Of 2 Nos. Duplex/Simplex Chain & Pulley Design
Hydraulic Unit :
1 No. vertical mounted, single acting, Honed hydraulic cylinder with hard-chrome plated piston which is actuated by 1 No. hydraulic single acting hand pump.
Wheels :
2 Nos. 150x50 mm. size white virgin Nylon wheels at front (Handle) side & 2 Nos. 78 X 70 mm. size load roller wheels at rear Side. All wheel contains double ball bearings for easy movement of stacker.
Handle : Inverted double ‘U’ shape handle ror Push-Pull action of Stacker.
Paint : One coat of primer & Two coats Of auto-finish Paint.
Roll Paper Stacker

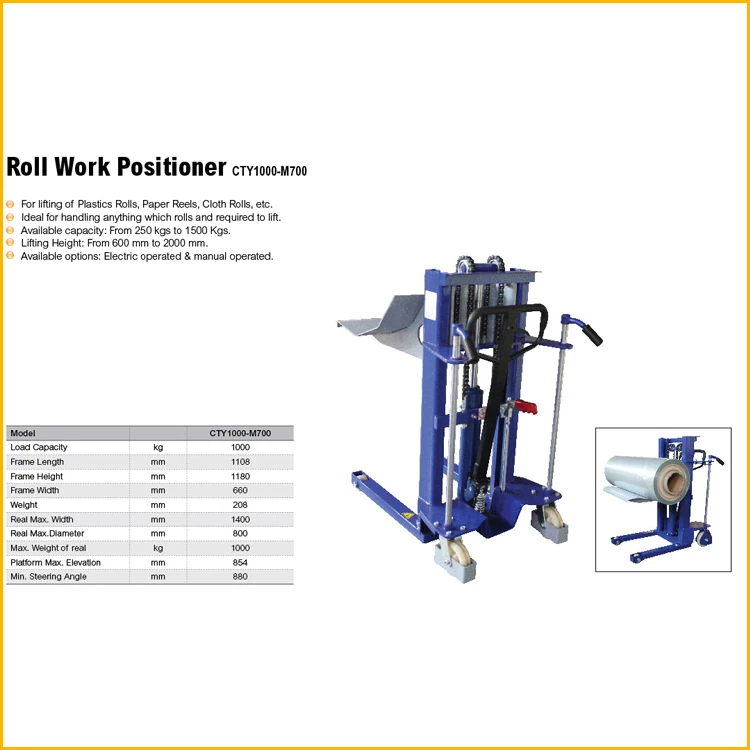

Model | CTY1000-M700 | |
Load Capacity | kg | 1000 |
Frame Length | mm | 1108 |
Frame Height | mm | 1180 |
Frame Width | mm | 660 |
Weight | kg | 208 |
Real Max. Width: | mm | 1400 |
Real Max. Diameter | mm | 800 |
Max. Weight of real | kg | 1000 |
Platform Max. Elevation | mm | 854 |
Min.Steering Angle. | mm | 880 |
Service weight | kg | 165 |
Questions about product
Q1: Warranty for the product?
A1: 12 months warranty on major components and 180 days on wearable items.
Q2: How about the delivery time for the products showed in website?
A1: Normally 15-35 days after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.
Q3: How many days we need for sending shipping documents?
A1:Usually within 5 daysafter vessel shipped out.
Questions about Sinolift
Q1:Are you a manufacturer?
A1: Yes, we have several factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, and In China, we have OKUTSU, LIZHOU,SINOLITE famous brand name to service our Clients. We also have OEM & ODM service experience for worldwide big brand.
Q2:What kind of certificates do you have?
A2: We have ISO9001,14000,18000,CE and GS certificates.
Q3:What's Normal Warranty Policy and service program?
A3: SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
l Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department.
l Please note the warranty is for end user who purchase direct from SINOLIFT.
l If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
