Aluminum roofing tile sheet panel roll forming making machine

Product details
Condition:New;Supply Ability:30 Set/Sets per Month;
Warranty:1 YEAR;Feeding width:1000/1250mm;
Dimension(L*W*H):6.0m*1.5m*1.5m;Tile Type:Colored Steel;
Type:Tile Forming Machine;Place of Origin:Hebei China;
Packaging Detail:Nude, Waterproof Plastic Paper.;Production Capacity:10-14m/min;
Port:XIN'GANG, TIANJIN;Weight:3T;
Roller material:45#steel Chrome Plated;Applicable Industries:Manufacturing Plant,Construction works ;
After-sales Service Provided:Online support,Video technical support,Engineers available to service machinery overseas;Usage:Steel Construction;
Brand Name:BEIDI;Certification:ISO;
Effective width:840/1050mm;Name:Aluminum roofing tile sheet panel roll forming making machine;
control system:PLC control system with inverter (Delta brand);Voltage:Requirements;
Cutting knives material:Cr 12;Use:Roof;
Material thickness:0.2-0.8mm;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Aluminum roofing tile sheet panel roll forming making machine



Product Description

1

  Material of input sheet

 Galvanized steel/ colored steel

2

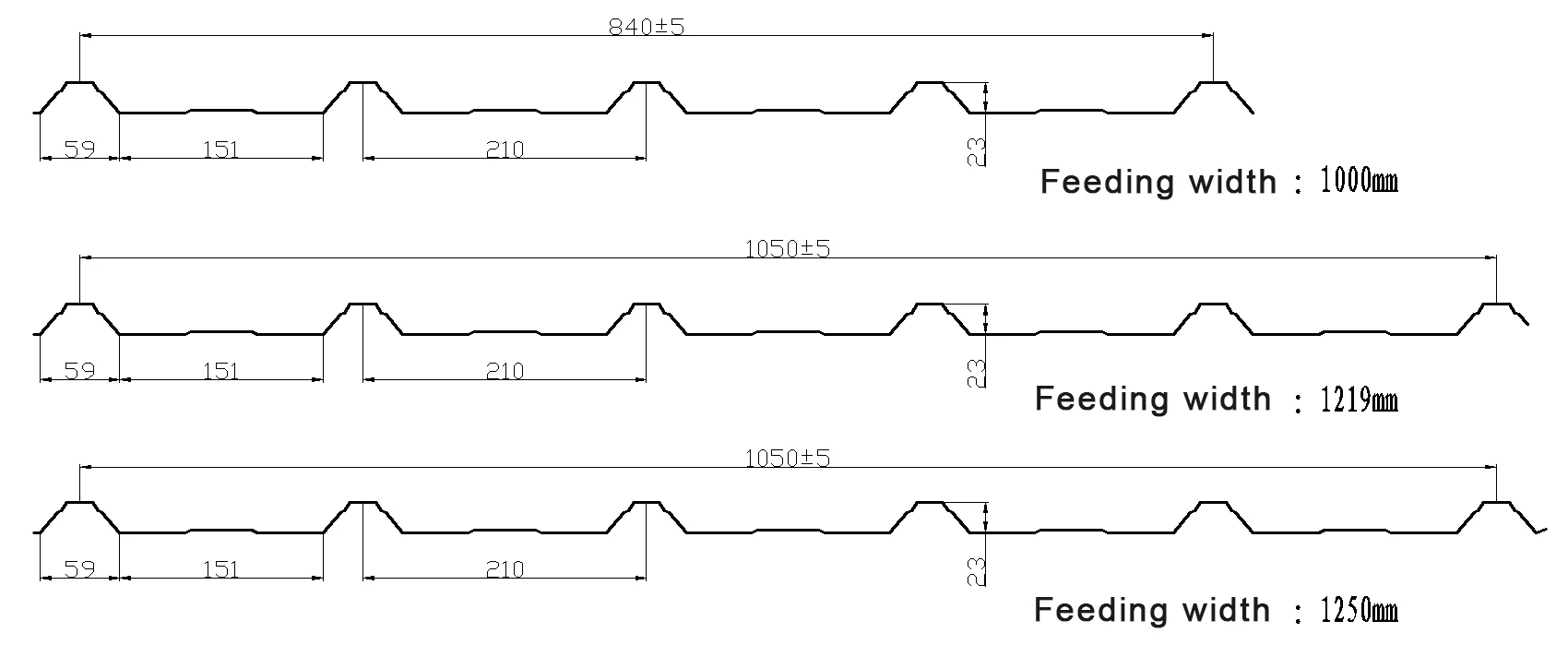

  Effective width

 840/1050mm

3

  Feeding width

 1000/1250mm

4

  Control system

  PLC control system with inverter     (Delta brand)

5

  Diameter of shaft

  70mm

6

  Material thickness

  0.2-0.8mm

7

  Motor power

  3kw

8

  Pump power

  3kw

9

  Working speed

  10-14m/min

10

  Material of cutting knives

  Cr12

11

  Material of roller

  45# steel with chrome

12

  Main frame

  300H steel

13

  Voltage

  380v 3phase 50hz

14

  Weight

  About 3 T

15

  Size

  6.0m×1.5m×1.5m

16

  Forming step

  13 steps







No.

Item

Unit

Qty

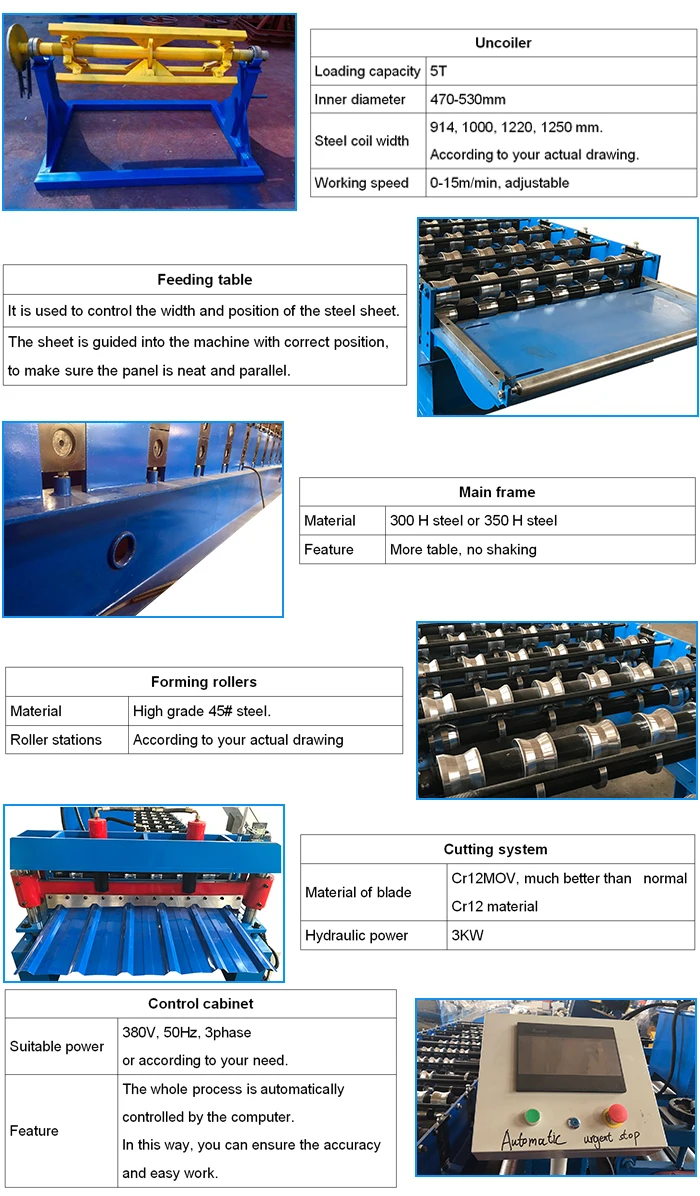

1.

Manual decoiler

set

1

2.

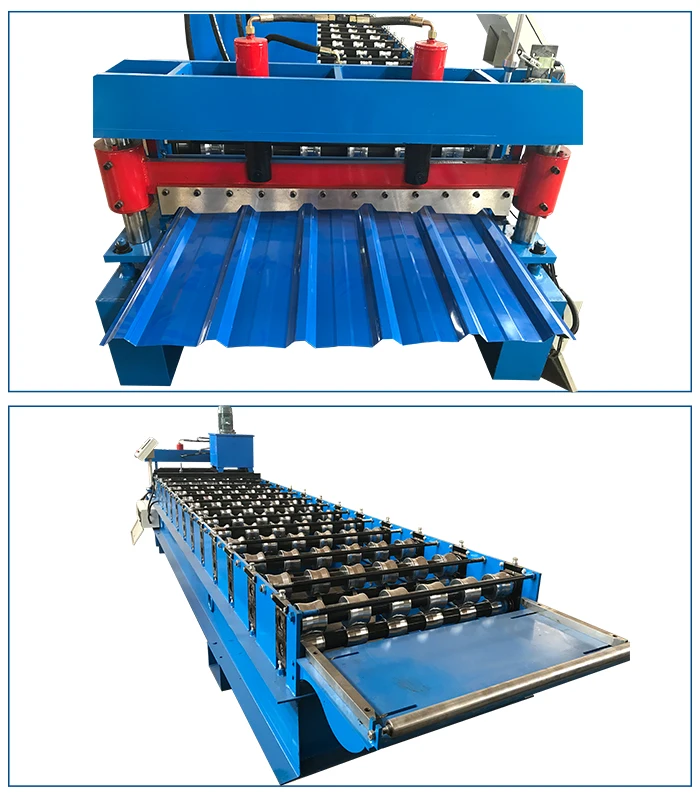

Main forming machine

set

1

3.

PLC Control box

set

1

4.

Hydraulic pump

set

1

5.

Cutting system

pcs

1

6.

Output table

pcs

1



Please feel free to contact us if you have any question.





Related Products







Packaging & Shipping

Company Information





FAQ



1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan for the machine.


2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

   2.We can send the technicians to the buyer`s factory for the installation of the machine.


3.What policy of your garentee?

 A: Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems after two years,you need to buy by factory cost.



After-Sales Service



After-sales Service:



Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.



Delivery: 30 days after receipt of advance payment





Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 80USD/day.





During warranty: parts are free but buyer pay for the shipping fee



We can provide oversea after sales. Our engineers have been to Chile, Nicaragua, Indonesia, Russia, Saudi Arabia, Singapore, and other countries for installation and training. Considering the time difference, we can offer online instant viedo to help customer to solve problems.
