X6325 China manufacturer Taiwan head Turret DRO milling machine Vertical price

Supplier: Tengzhou Hipow Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr James Wang
Price: $3100.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Voltage:	220/380/415V 50/60HZ;	After-sales Service Provided:	Free spare parts,Video technical support;
Spindle speed:	66-4540 rpm;	Milling Head F/B Swivel Angel:	45°;
X/Y/Z Axis Travel:	750/400/400mm;	After Warranty Service:	Video technical support,Online support,Spare parts;
Name:	X6325 China manufacturer Turret DRO milling machine Vertical price;	Model Number:	X6325;
Milling Head R/L Swivel Angel:	90°;	Range of Spindle Speed(r.p.m):	66 - 4540;
Spindle steps:	16 steps,;	Single package size:	XX cm;
Table Travel (X) (mm):	750 mm;	Machine Type:	Turret Milling Machine;
Video outgoing-inspection:	Provided;	Spindle Taper:	R8;
Single gross weight:	1400.0 KG;	Type:	Vertical;
Marketing Type:	Hot Product 2019;	Table Travel (Z) (mm):	400 mm;
Machinery Test Report:	Provided;	Core Components:	Motor,Gearbox,Milling Head;
Brand Name:	HIPOW;	Local Service Location:	Argentina,Chile;
Showroom Location:	Argentina,Chile;	Packaging Detail:	Machine Model: X6325 China manufacturer Taiwan head Turret DRO milling machine Vertical price Type of package: Plywood case Packaging size: 155013802100mm(one set in one case) N.W./G.W.:1300 KGS;
Place of Origin:	Shandong China;	Spindle taper:	R8;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;	Spindle Sleeve Travel:	127mm;
CNC or Not:	Normal;	Key Selling Points:	Easy to Operate;
Weight (KG):	1500;	Table Travel (Y) (mm):	400 mm;
Selling Units:	Single item;	Warranty:	1 YEAR;
Certification:	iso/ce;	Condition:	New;
Machining Capacity:	Medium Duty;	Number of Axes:	3;
Spindle Motor Power(kW):	2.2;	Table Travel (mm):	1270x254;
Warranty of core components:	1 YEAR;	Dimension(LWH):	155013802100mm;

Product Description

X6325 China manufacturer Taiwan head Turret DRO milling machine Vertical price

Main Feature

1. 3HP Taiwan Precision Variable Speed milling head
2 Milling head can tilt L/ R ±90°; forward / backward ±45°
3 X,Y axis Taiwan Ball screw can be choosen
4 Taiwan X,Y,Z axis Power feed can be choose.

Detailed Image

1. 3HP Speed Head with Pneumatic Draw Bar

1)3HP R8 Spindle Milling Head
2)Head swivel L/R: 90°,F/B: 45°
3)Taiwan original high quality milling heaud

4)5HP NT40 Variable Speed Head is optional
5)pnuematic draw bar is opitonal

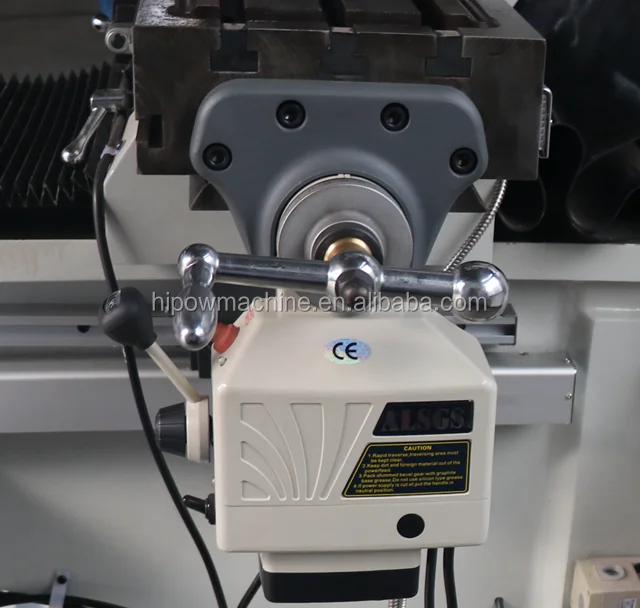

2. Power Feed

1)X,Y,Z axis Power Feed is opitonal
2)Taiwan TONE ,ALIGN or other brand power feed can be choosen
3)Z axis also can choose lifting motor.

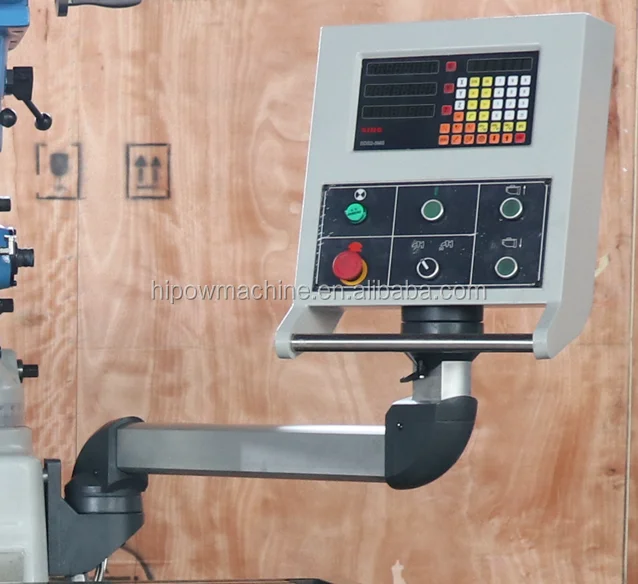

3. Combined Control Panel

1) DRO and switchs are intergrated in one panel makes the machine easy to operate .
2) X,Y,Z axis DRO is opitonal

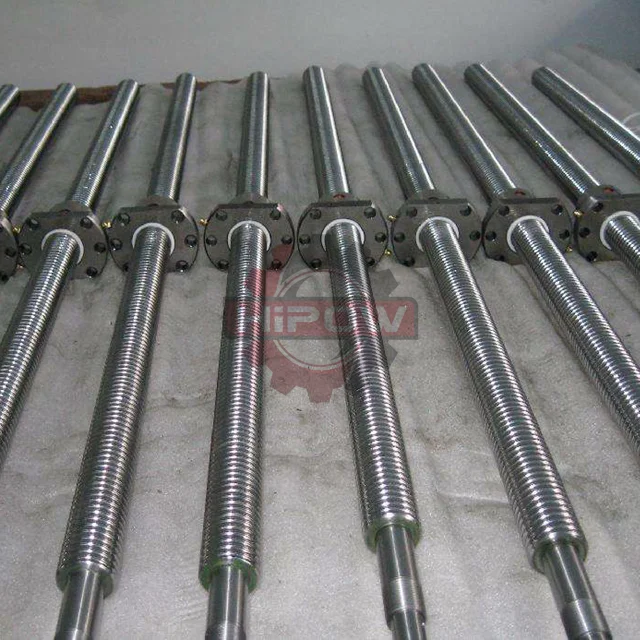

4. Taiwan Scrolling-Ball Screw

1)The machine`s X,Y axis can install Scrolling-Ball Screw to make the machine

more easy to operate
2)Scrolling-Ball Screw is opitonal part

Item	Specification
Model	X6325
Size of worktable(length×width)	1270254mm ( 1370254,1370*305 table customized)
T slot (mm)	3/16/65mm
X-Axis travel	750mm ( 850mm optional)
Y-Axis travel	400mm
Z-Axis travel	400mm
Distance between spindle nose and table	0-460mm
Distance between spindle center and column	155-635mm
Spindle taper	R8, (NT40,optional)
Max. spindle speed	16 steps ,66-4540rpm
Spindle motor power	3HP(2.2kw), (5HP head ,optiona)
Spindle Travel	127mm
Spindle Auto Feed	3 steps 0.04(0.0015)/0.08(0.003)/0.15(0.006)
Main Motor	3HP
Head swivel	90°
Head tilting	45°
Weight	1300kg
Package Size	155013802100mm
