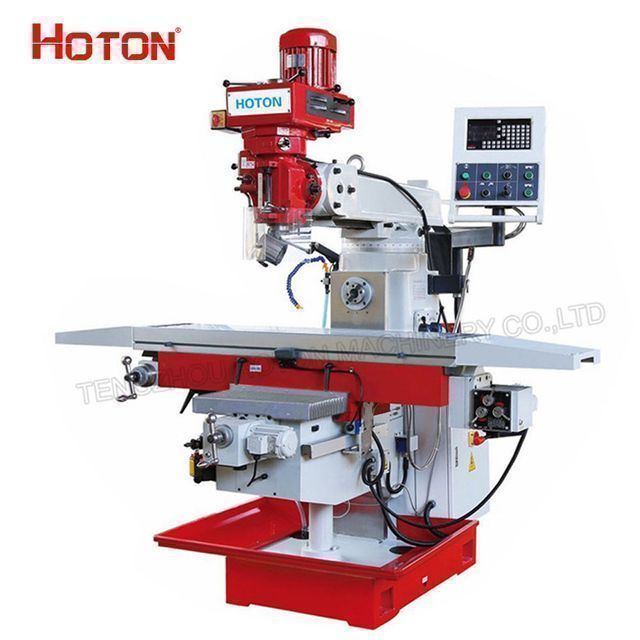

( Fresadoras de Torreta ) turret milling machine X6323A X6325 X6325D X6330A X6333

Click here to contact
Product details
Health status:newstrength:3.75kw
type:commonOrigin:Shandong China
CNC or not:normalport:Qingdao port or Shanghai port
Packaging Details:in plywood caseName:Turret milling machine
Dimensions (L*W*H):1400x1476x2030mmType of machine:Universal Horizontal
Voltage:customer requestSupply capacity:70 sets per month
color:custom madebrand:Holden
application:metal processingpayment terms:L/C, T/T, Western Union
Spindle taper:ISO40 or R8 or NT40After-sales service provided:Provide overseas third-party support
weight:1500KGWarranty:12 months
Certification:CE ISO9001
welcome

Features of X6323
Both Y and Z axes adopt double 55° dovetail guide rails, which are convenient for adjustment and maintenance.
Reinforced ribs are used on both sides of the column to make the machine firm and beautiful.
Features of X6325:
Y-axis, Z-axis rectangular guide rail, good rigidity
The saddle rail is lined with TF wear-resistant material
The working surface and three-axis guideway are hardened and precision ground
Features of X6325D:
Both Y and Z axes adopt rectangular guide rails.
The rails on the saddle are lined with TF wear-resistant material. Make the machine stable and firm, beautiful and easy to operate.
5HP milling head motor and sleeve diameter is 100MM
Features of X6333
Both Y and Z axes adopt double 55° dovetail guide rails, which are convenient for adjustment and maintenance.
Reinforced ribs are used on both sides of the column to make the machine firm and beautiful.
Features of X6330A
Both Y and Z axes adopt double 55° dovetail guide rails, which are convenient for adjustment and maintenance.
Reinforced ribs are used on both sides of the column to make the machine firm and beautiful.

Model
X6325
X6325D
X6330
X6330D
table size
1270x254mm
1270x254mm
305×1370mm
305×1370mm
table load
280Kg
320 kg
350Kg
350Kg
long trip
780mm
800mm
800mm
800mm
Interbank
420mm
420mm
420mm
420mm
vertical travel
420mm
420mm
420mm
420mm
T-slot number and size
3×16
3×16
3×16
3×16
Ram travel
470mm
470mm
470mm
470mm
Distance from spindle nose to worktable surface
0-405mm
0-405mm
0-405mm
0-405mm
Spindle bore taper
R8
ISO40
ISO40
ISO40
Arm diameter
85mm
85mm
85mm
85mm
Spindle travel
127mm
130mm
127mm
127mm
Spindle speed
(standard): (class)
50 Hz: 66-4540 60 Hz: 80-5440
car. quill feed
(Three steps): 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/rev
engine
2.25KW/3HP
Taiwan milling head
3.75KW/5HP(380V)
2.2KW/3HP(220V)
Taiwan milling head
head rotation
90°
90°
90°
90°
tilt head
45°
45°
45°
45°
Machine size
1516×1550×2130
1516x1550x2160
1516×1550×2250
1516×1550×2500
Gross weight/set
1350Kg
1400 kg
1450Kg
1500Kg
