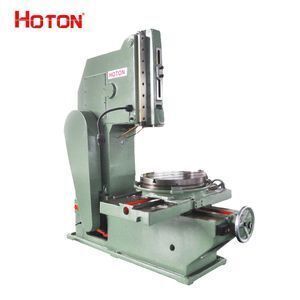

High quality electric metal vertical slotting machine B5032D

Product details
Voltage:Customer Requireme;Product Name:vertical slotting machine;
Function:Cutting Metal;Condition:New;
Warranty:12 Months;Packaging Detail:In Plywood case;
Dimension(L*W*H):1836x1305x1995mm;Port:Qingdao port;
Key word:slotter machine B5032D;Keyword:Slotting Machine;
Place of Origin:Shandong China;Supply Ability:30 Set/Sets per Month;
After-sales Service Provided:Online support;Power(W):5.5KW;
Payment Terms:L/C,T/T,Western Union;Item:B5032D;
Model:B5032D;Weight:3000KG;
Brand Name:HOTON;Precision:Precision;
Certification:CE ISO9001;
WELCOME

SLOTTING MACHINE FEATURES:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping,Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism,In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine,Is when the work is over  turning back instantaneous feed,Therefore be better than mechanical slotting machine used drum wheel feed.

SPECIFICATION
B5020D
B5032D
B5040
B5050A
Max slotting length
200mm
320mm
400mm
500mm
Max dimensions of workpiece (LxH)
485x200mm
600x320mm
700x320mm
-
Max weight of workpiece
400kg
500kg
500kg
2000kg
Table diameter
500mm
630mm
710mm
1000mm
Max longitudinal travel of table
500mm
630mm
560/700mm
1000mm
Max cross travel of table
500mm
560mm
480/560mm
660mm
Range of table power feeds (mm)
0.052-0.738
0.052-0.738
0.052-0.783
3,6,9,12,18,36
Main motor power
3kw
4kw
5.5kw
7.5kw
Overall dimensions (LxWxH)
1836x1305x1995
2180x1496x2245
2450x1525x2535
3480x2085x3307
