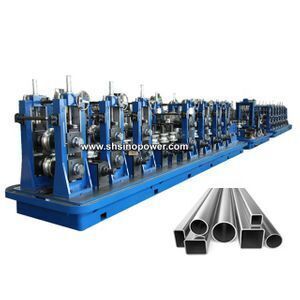

Square pipe roll forming machine used Automatic steel ERW pipe mill line machine to make square tube

Product details
Application:Building Material ; Construction ; Furniture;Weight:based on machine model,50 tons ~ 90 tons;
Brand Name:Sinopower;Payment Terms:L/C,D/A,D/P,T/T;
Condition:New;Control system:Siemens / Taiwan PLC control system ;;
Pipe Material:Carbon Steel;Type:Pipe Production Line;
Color:According to customer;Power(W):125 Kw ~ 600 Kw;
Cutting system:Saw blade cutting / HSS blade cutting;Production Capacity:0-120 m/min;
Local Service Location:Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;Pipe diameter:8 mm ~ 219 mm;
Auxiliary equipment:Diagnostic device ; Inkjet printer ; Zinc spraying device;After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Place of Origin:Jiangsu China;Key Selling Points:High-accuracy;
Certification:CE/ISO,ISO 9001: 2008 ; CE;Warranty:2 years;
High frequency system:Sanyi brand / Thermatool brand;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Pipe shape:Roun pipe ; Square pipe ; Rectangle Pipe ; LTZ Profile;Packaging Detail:According to customer's requirement ; Shipping container for main round pipe making machine;Wooden case for spare parts Square pipe roll forming machine used Automatic steel ERW pipe mill line machine to make square tube;
Showroom Location:Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Thailand,Morocco,Kenya,Argentina,Chile,UAE,Colombia,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan,Malaysia,Australia;Dimension(L*W*H):based on machine model;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining,Advertising Company,Steel Factory;Voltage:based on machine model;
Thickness:0.4mm - 8.0mm;
Product Category

Metal roll forming machine.

Steel product roll forming machine.
Model: C/Z Purlin, roofing/wall panel, gutter, downspout, keel steel, strut....

Coil slitting machine.

Slit metal coil to certain width strip.

Apply to HR, CR, GI, PPGI, ST37, ST52, SS...etc

Coil cut to length line.

Cutting  metal coil to sheet plate .

Thickness from 0.2 to 25mm. Coil width customized

ERW Pipe Making Machine
Slitting Machine
Cut to Length Line
Steel Roll Forming Machine
Metal Sheet Laminating Line
Coil Color Coating Line

Why Choose us?

1.30 years in metal processing equipment development


2.15 years export experience, serves hundreds clients in 40 countries

3.Top engineer team, advanced production process, maximize returns for client.

4.24 hours online service, excellent service system

ERW Pipe Mill

High frequency welded pipe making machine is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. Below are detailed specification of our pipe mill line.

1: Which kind of pipe can be produced by our Pipe mill ?

         1. Oil & Gas Pipes                                                     7. Wire and Cable Protection Pipe
        2. Heating Pipe                                                          8. Structural Support Steel Pipe
        3. Low-pressure Process Pipeline                             9. Industrial Steel Pipes
        4. Low Pressure Fire Fighting Pipeline                     10. Decoration Pipe
        5. Sewage Pipes                                                       11. Water Pipe
        6. Steel Scaffolding Pipe                                           12. Building pipe




2. Flow chart of our tube mill

Standard flow chart of ISO/CE MS Iron Pipe Making Machine Production Line 8-219 mm ERW Pipe Mill:

Step 1: Uncoiler

Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.

There are 3 types: pneumatic, hydraulic and manual.

Step 2: Shearing butt welding

2 Types: Automatic & Manual

Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.

Step 3: Strip Accumulator

Function: storage strip to keep continue production.
2 Types: Horizontal / Vertical
Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.

Step 4: Forming Section.

Function: forming the tube from strip

Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor

Step 5: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder

Our advantage: We choose the China best welder: Sanyi brand.

Step 6: Sizing Section

Function: sizing the tube to precise size

Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size

Step 7: Flying saw / Cold Saw

Function: cutting the tube mill line tube to right length.

Fly saw: easy to operation, low investment.
Cold saw: no noise, no burr cutting precision and cross section.

3. Pipe Making Machine Details Pictures

Relying on superior products quality, Sino Power Group have successfully supplied world-class products and service to over 40 countries and areas around the world, such as: Poland, Spain, Russia, Yugoslavia, Ukraine, Turkey, Egypt, Saudi Arabia, India, Vietnam, Malaysia, Thailand, the Philippines, Pakistan, kazakhstan, Ethiopia, etc.

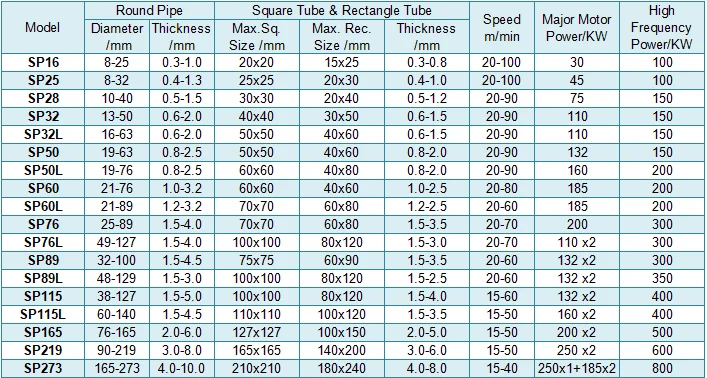

Main specification

Below is our standard series of our tube making machine,  we also accept customized.
