HR coil cutting machine hot selling straightening line sales and factory design

Product details
Packaging details:Standard export packagingMaterial thickness (mm):0.3 - 28mm
Name:Shearing machineAfter-sales service provided:Online support, video technical support
Showroom location:not anyWarranty:1 year
Cutting width (mm):800 - 2200mmVideo outbound inspection:if
Core components:Bearings, gearboxes, PLCCoil material:Cold rolled coils, hot rolled coils, stainless steel coils, galvanized coils, etc.
payment terms:Letter of credit, wire transferSupply capacity:500 units per year
Coil inner diameter:508~610mmVoltage:380/50
Post-warranty service:Online support, video technical supportCutting speed (m/min):10 - 60 m/min
Place of origin:Jiangsu, ChinaHealth status:new
Coil weight (T):20Mechanical test report:not available
Coil outer diameter:800~2200mmLeveling accuracy (±mm/m):0.3±mm/m
Core component warranty:1 yearApplicable industries:Building material stores, construction projects, machinery repair shops, manufacturing plants
Main selling points:competitive priceLocal service locations:not any
Marketing type:normal product
Product Categories
ERW pipe making machine
Slitting line
Cutting line to length
Steel forming machine
Roll film production line
Coil material color coating line

Why choose us?

1.30 years of focus on research and development of metal processing equipment


2.15 years of export experience, serving hundreds of customers in 40 countries

3. Top engineering team and advanced production technology bring maximum returns to customers.

4.24-hour online service, excellent service system

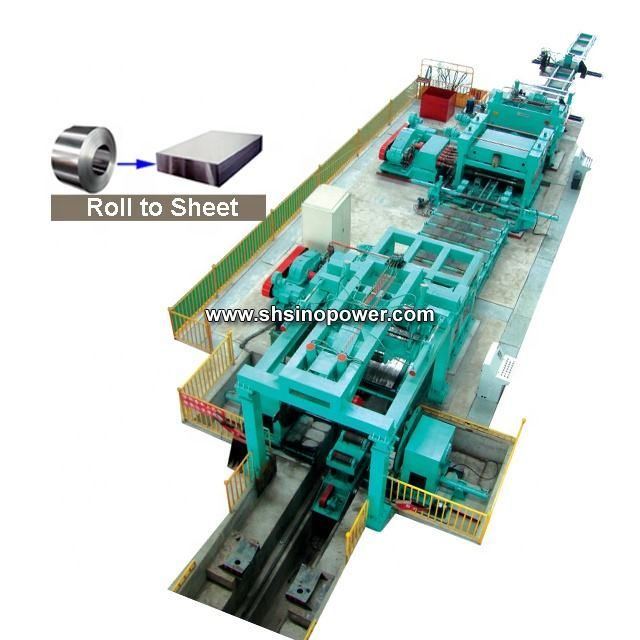

Fixed length wire cutting
SINO POWER high-speed flying steel strip cutting machine is suitable for steel coils of various specifications. The cut-to-length cross-cutting machine produced by the cut-to-length cross-cutting production line is used to produce flat cut-to-length cross-cut steel plates, which undergo processes such as uncoiling, leveling, and cutting into the required width and length.

1: Specifications of steel coil cut-to-length machine

Mark: The following is our standard series, we also accept customization. We have 0.3-3.0, 1-6mm, 2-8mm, 3-12mm, 4-16mm, 6-20mm, 8-25mm, etc.

Model
SP0.3-3.0×800-2000
SP1.0-6.0×2000
SP2.0-8.0×2000
SP3.0-12.0×2200
Coil material
HR, CR, PPGI, GI, low alloy steel coil, Q235, SS316...etc.
Roll thickness
0.3~3.0mm
1.0~6.0mm
2.0~8.0mm
3.0~12.0mm
Roll width
800~2000mm
900-2000mm
900-2000mm
900~2200mm
Coil weight
≤20T
≤30T
≤30T
≤30T
Cutting length range
1000-6000mm
1000-8000mm
1000-10000mm
1000-12000mm
Coil inner diameter
φ508mm, φ610mm, φ760mm
φ508mm, φ610mm, φ760mm
φ508mm, φ610mm, φ760mm
φ610mm, φ760mm, φ820mm
Coil outer diameter
≤φ1600mm
≤φ2000mm
≤φ2200mm
≤φ2200mm

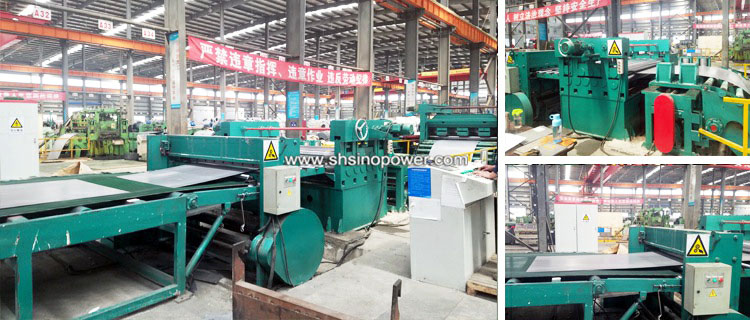

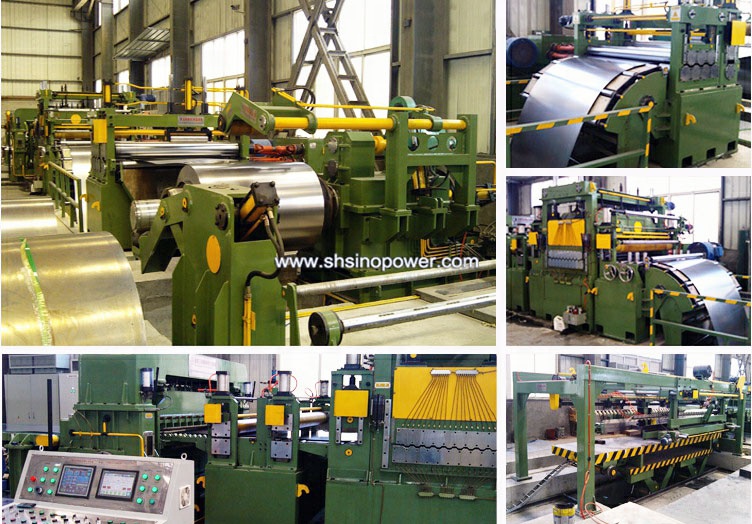

2: Overall review of cut-to-length cutting machines

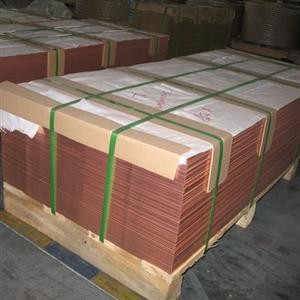

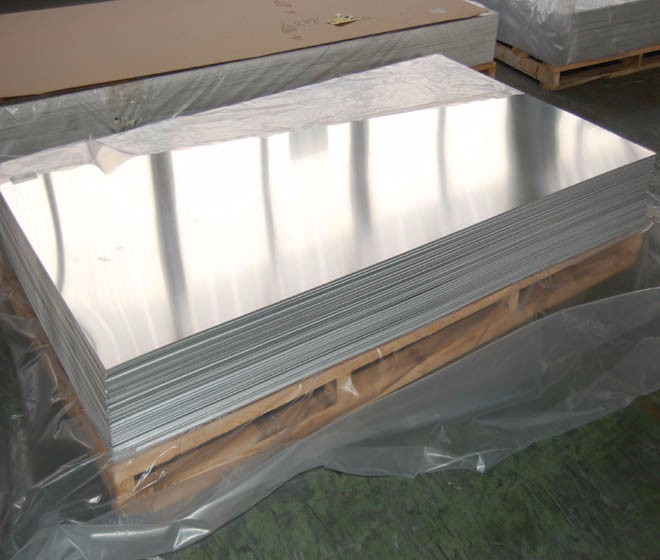

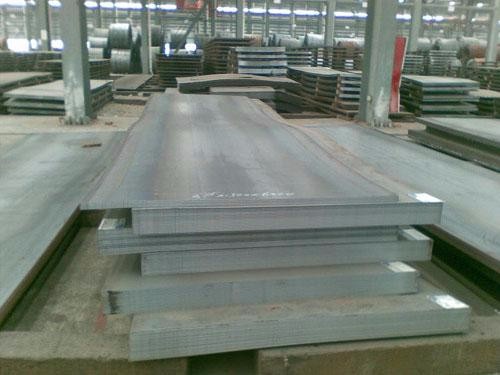

3: Steel coil cutting machine final product

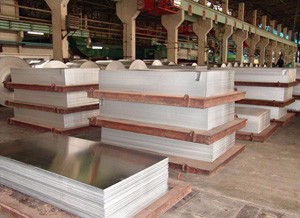

Our cut-to-length cutting line can cut HR, CR, PPGI, GI, SS, aluminum and copper coils into plates, and the minimum length can be 1m.

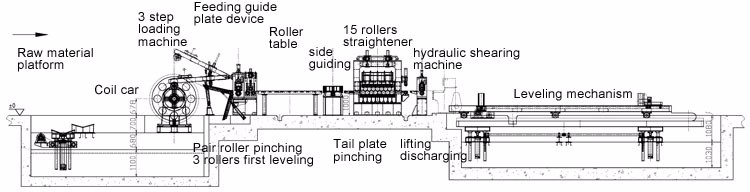

4. Flow chart and machine

Standard flow chart of fixed-length cutting machine:

Coil elevator---hydraulic uncoiler---buffer roller---pinch roller and pre-leveling machine---ring bridge---side guide roller---main leveling machine---encoding and measuring device (With tail plate clamping) ) --- Shearing machine --- Conveyor --- Hydraulic lifting platform --- Stacker with blower device --- Unloading truck

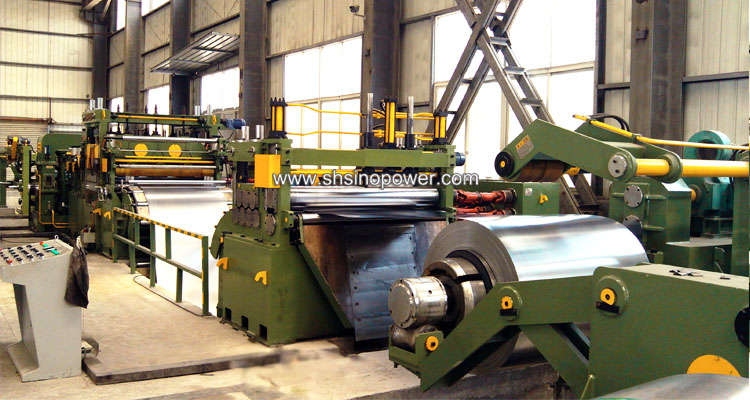

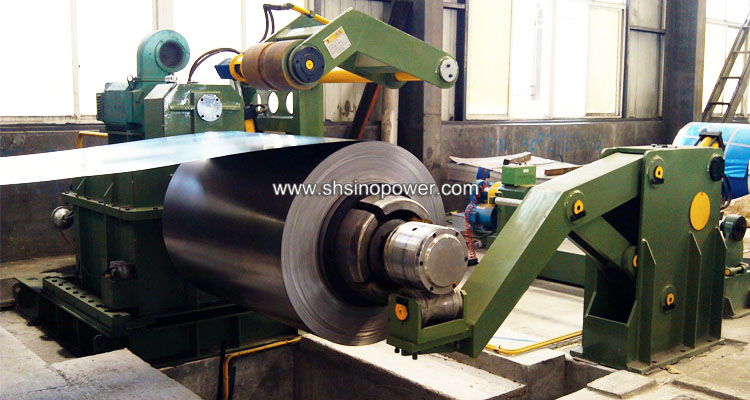

Step 1: Steel Uncoiling Metal Coil Cutting Machine

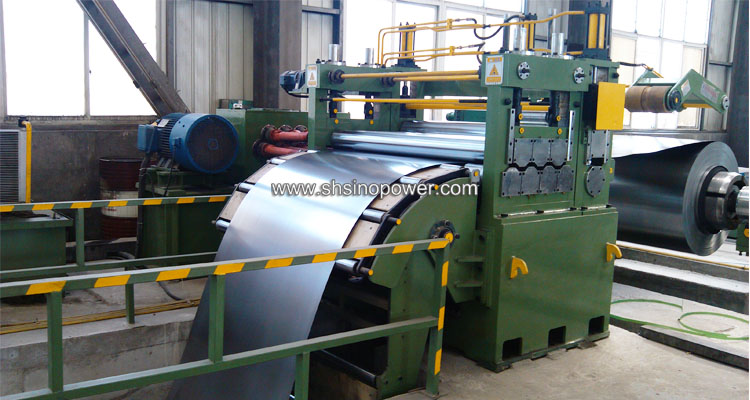

Step 2: Pre-leveling the steel strip cutting machine

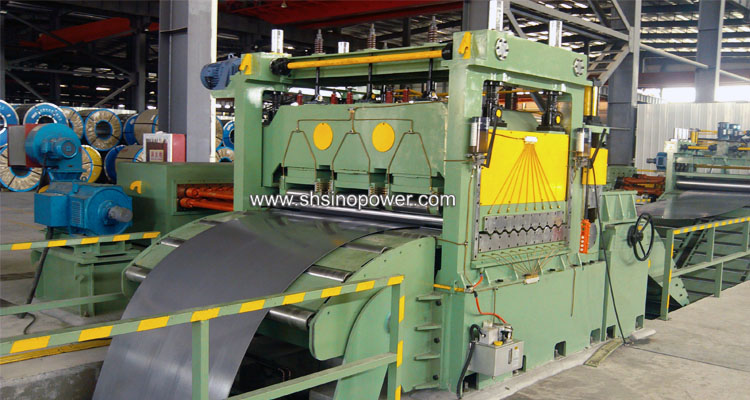

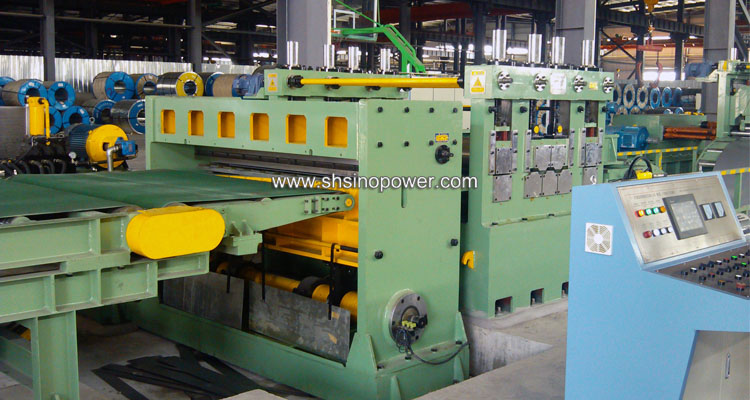

Step 3: Leveling the cut-to-length cutting machine

Step 4: Cutting with steel coil cutting machine

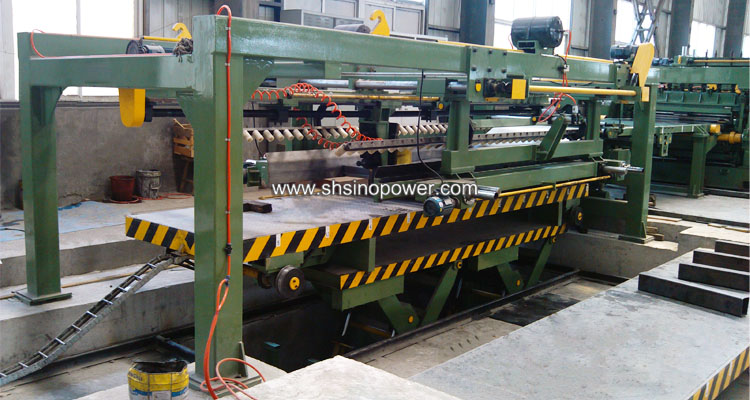

Step 5: Storage of Steel Strip Cutting Machine

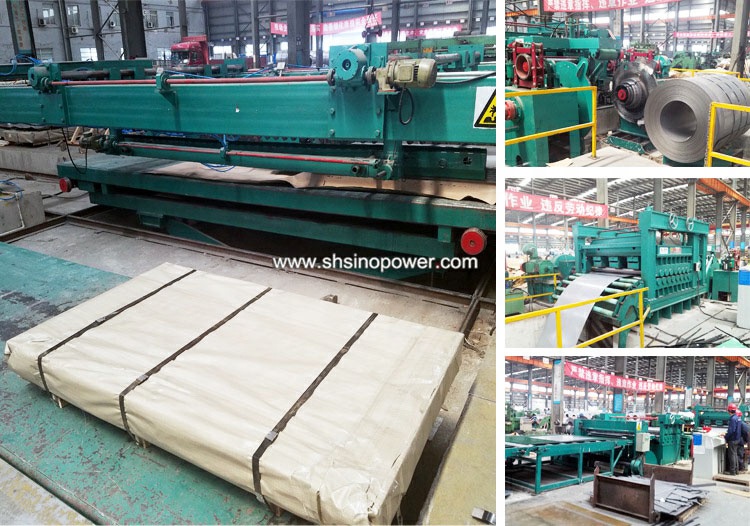

5. On-site production line
