Coil crosscutting line for coil straightening and cutting

Supplier: Wuxi Hai Roll Fone Science And Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr HUANQING ZHAO
Price: $60000.00 / 1 - 1 sets
$50000.00 / 2 - 2 sets
$40000.00 / 3 - 3 sets
$30000.00 / >=4 sets
Min. Order: 1 set

Click here to contact

Product details

Main selling points:	high productivity	Coil weight (T):	30 tons
Packaging Details:	Naked packaging high-speed flying shears cross-cutting line flying shears cross-cutting machine slitting machine	Showroom location:	Turkey, Italy, Russia, South Korea
Video shipment inspection:	Not available	Marketing Type:	New Products 2020
Health status:	new	Cutting speed (m/min):	1 - 40 m/min
After-sales service provided:	Engineers available to service machinery overseas	Cut length:	2000mm-12000mm
weight:	50000	Material Thickness (mm):	2 - 8mm
Mechanical test report:	Not available	Warranty:	1 year
Leveling accuracy (±mm/m):	1.5±mm/m	Coil Width:	800-2000mm
payment terms:	L/C, T/T	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Name:	Cross cutting machine Cross cutting machine Cross cutting machine	Total line power consumption:	300KW
brand:	high frequency radio frequency	Dimensions (LWH):	28X8X2 meters
Coil weight:	Maximum 30T	year:	2020
Line speed:	40m/min	Cutting width (mm):	500 - 2000 mm
Applicable industries:	Construction engineering, building material stores, machinery repair shops, manufacturing plants	Material:	HR, CR, GI
Core component warranty:	1 year	place of origin; place of origin:	Jiangsu, China
Supply capacity:	15 sets per month	Voltage:	380v
rated power:	300KW	port:	Shanghai high speed flying shear cross cutting line flying shear slitting machine slitting machine
Coil Thickness:	2-8mm	gross weight:	50 tons

video display

Automatic Cable Tray Roll Forming Machine

Product Description

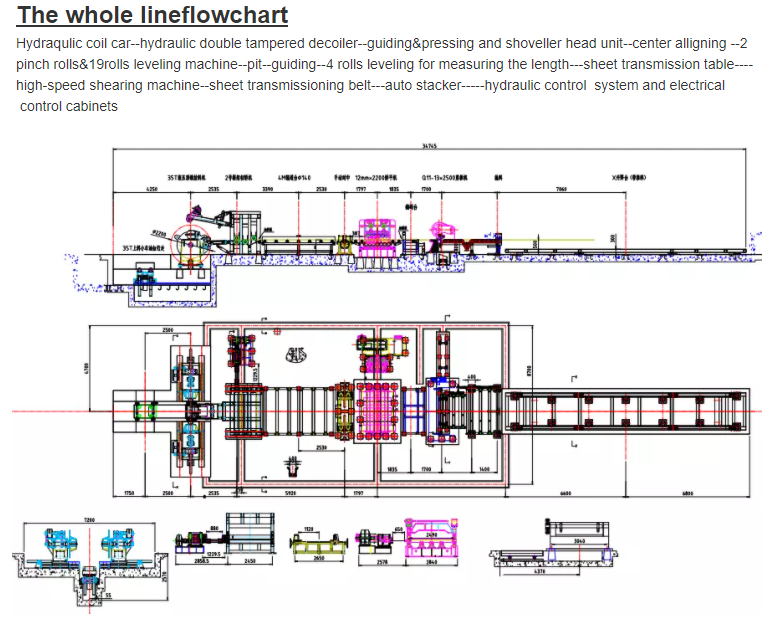

Description and function 1. What is a cross-cutting machine? A cross-cutting machine, also known as a cross-cutting line, is used to uncoil, level, cut metal coils into plates of required length and stack them. Suitable for cold rolling processing. And hot-rolled steel coils, coils, galvanized steel coils, silicon steel coils, stainless steel coils, aluminum coils, etc. can be cut into different widths according to the production needs of users, and cut into different widths. The process cuts and processes strip steel coils into required steel plates. It is mainly composed of uncoiler, clamp leveler, gauge, cutting machine, stacker, etc., supplemented by feeder, side guide, transition, conveyor, etc. 3. Classification According to the metal material, it is divided into stainless steel sizing machine, silicon steel sheet sizing machine, cold-rolled or hot-rolled plate sizing machine, etc. According to its electronic control mode, there are pneumatic cross-cutting line, numerical control cross-cutting line and so on.

model/type	3×1600	6×2000	8×2000	10×2200	12×2200	16×2200	20×2500	25×2500
Machinable plate thickness (mm) Thickness range	0.3-3	1-6	2-8	2-10	3-12	4-16	6-20	8-25
Machinable plate width (mm) width range	1600	2000	2000	2200	2200	2200	2500	2500
Length Range(mm) cutting length	300-4000	500-6000	600-8000	600-10000	800-12000	800-12000	800-12000	800-12000
Cut length accuracy (mm) Cutting accuracy	±0.5	±0.5	±1	±1	±1	±1	±1	±1
Waist leveling Number of rollers	15	15	13	13	11	11	9	9
Waist diameter (mm) Drum diameter	Ф85	Ф140	Ф155	￥160	Ф180	￥200	Ф230	Ф260

Product parameters

thing			Specification
raw material	Material characteristics	HR YS 450 TS 350
		thickness	2.0mm-8.0mm
		width	800mm-2000mm
		outer diameter	Φ1000mm-Φ2150mm
		ID	φ500mm-φ800mm
		Coil weight	Maximum 30T
finished product	cutting length	2000mm-12000mm
finished product		Cutting Tolerance:	±1.5mm (length tolerance) ±2.0mm (diagonal tolerance) Meet the standard GB/T709-88
Leveling speed			0-40m/min
cutting thickness			12mm
Line centerline (to ground)			800mm

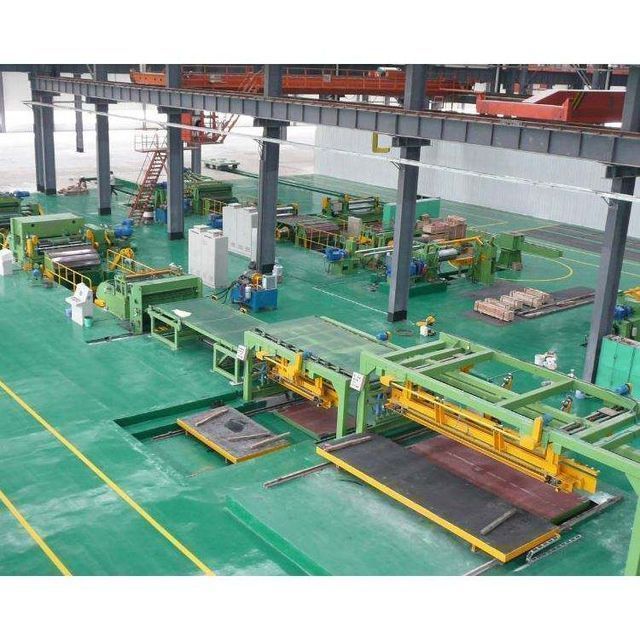

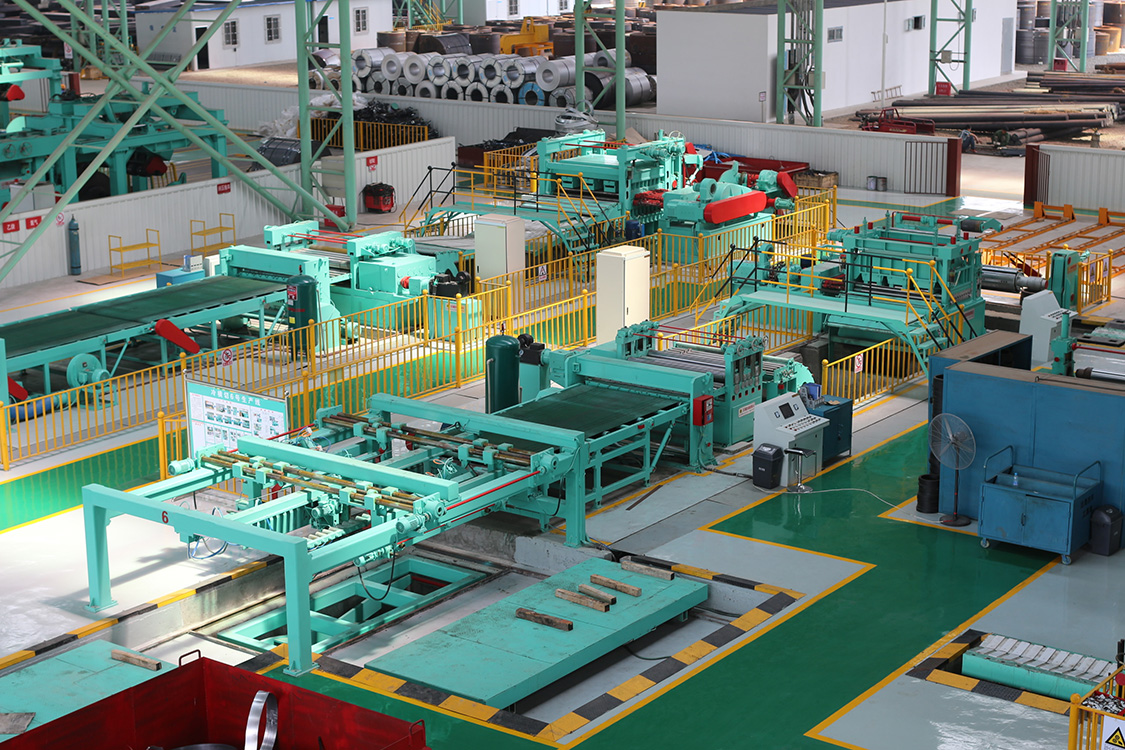

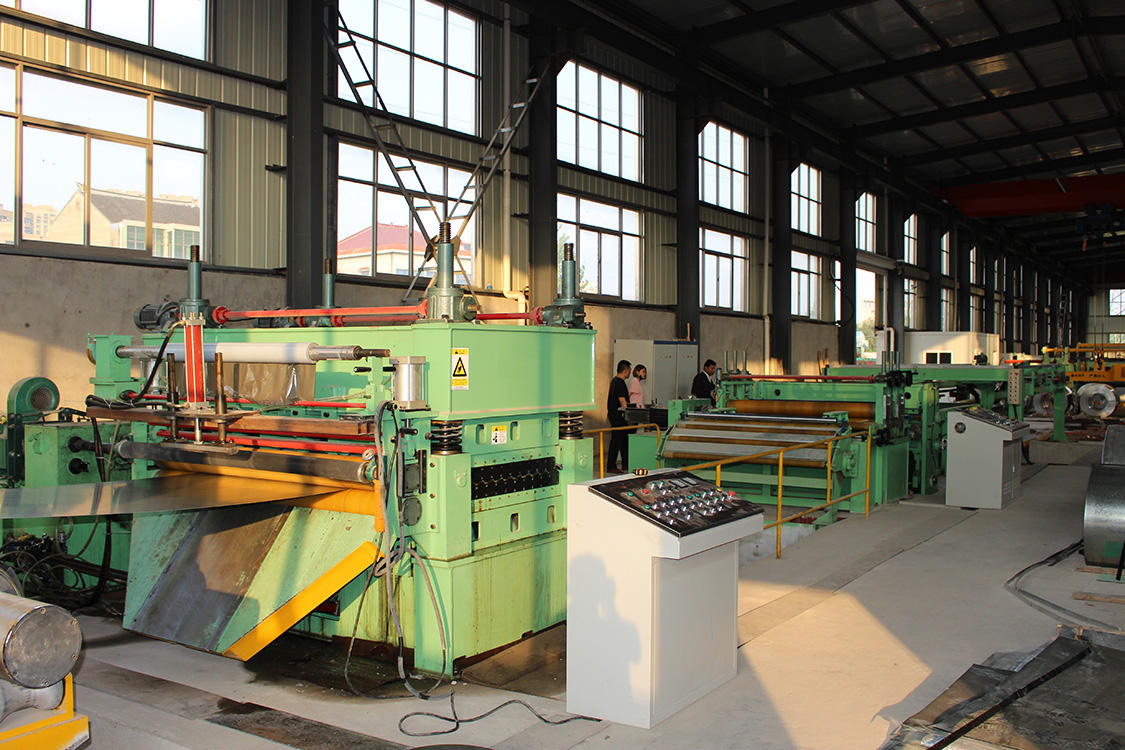

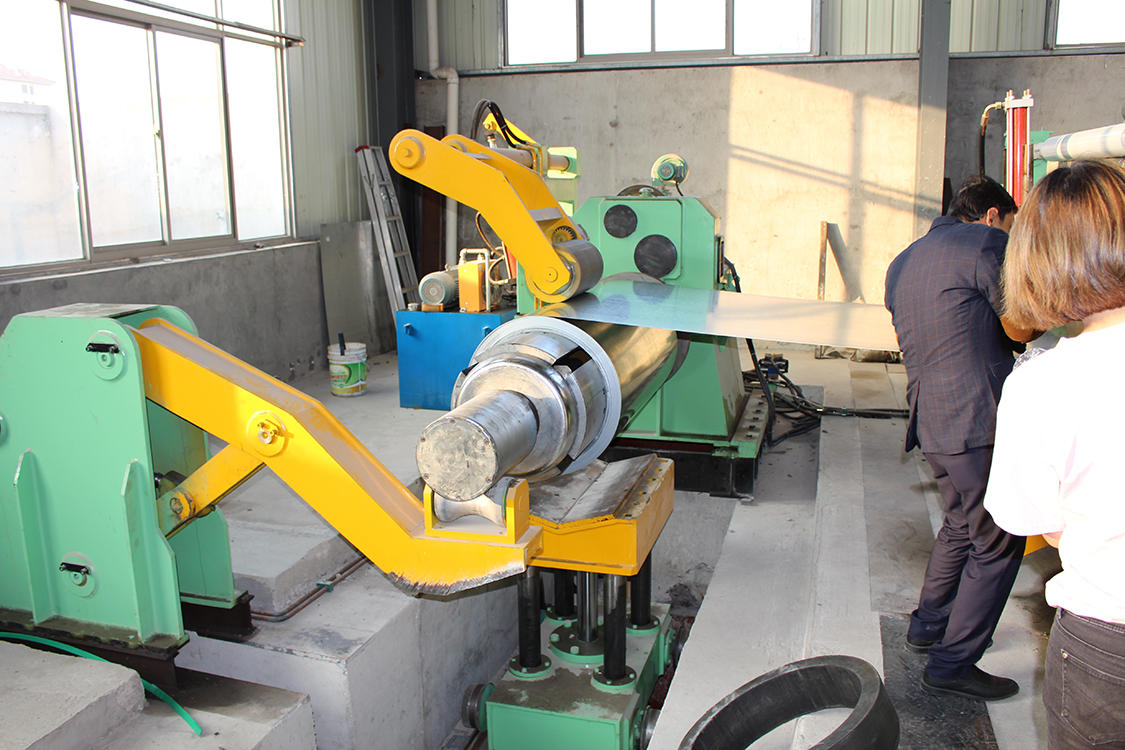

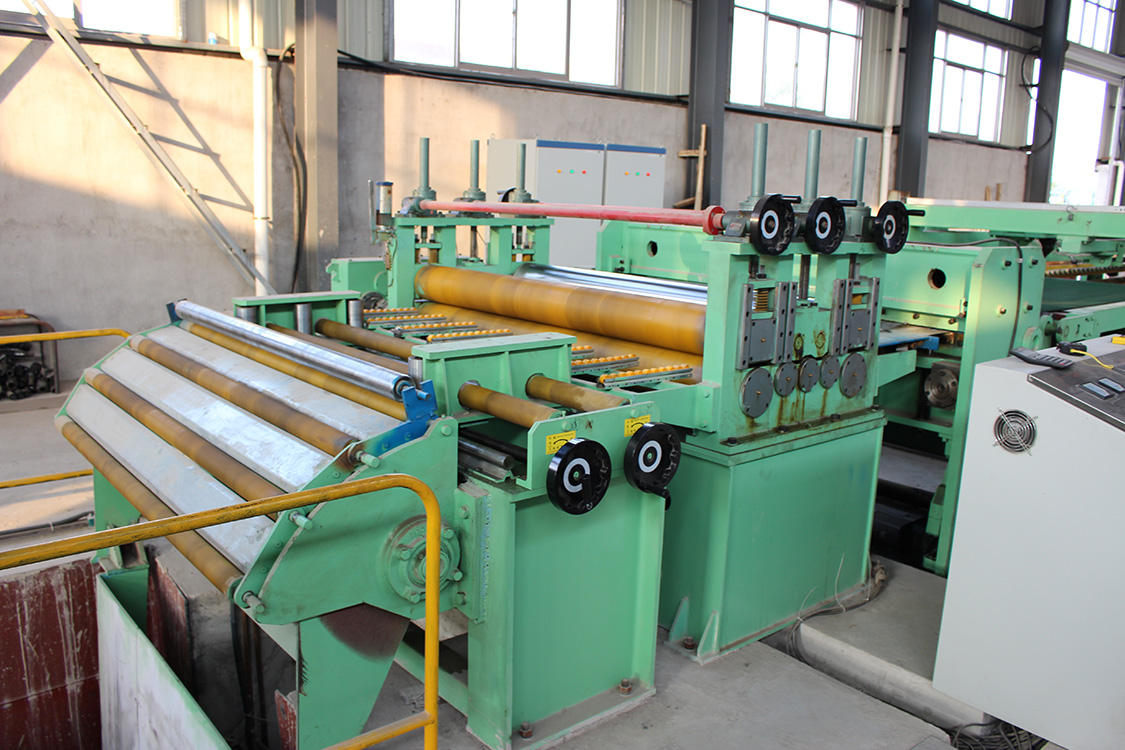

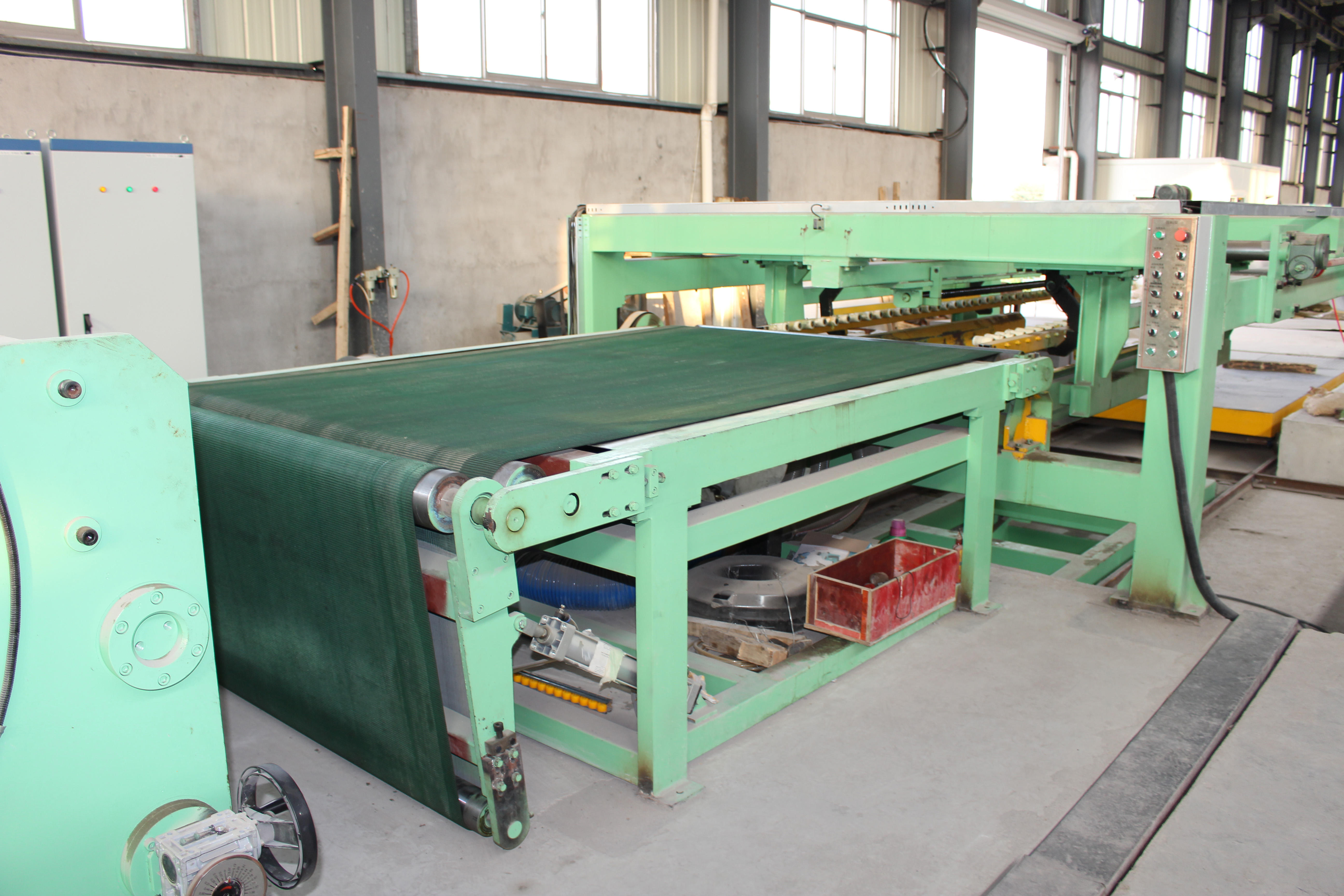

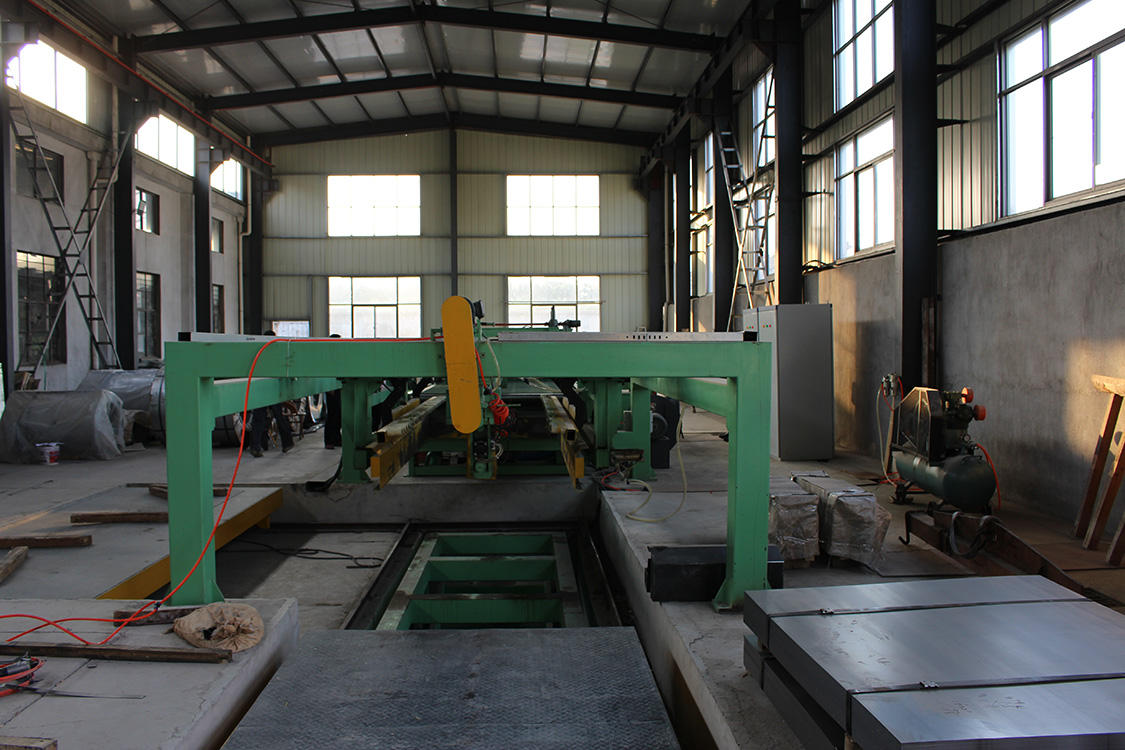

On-site application and quality inspection

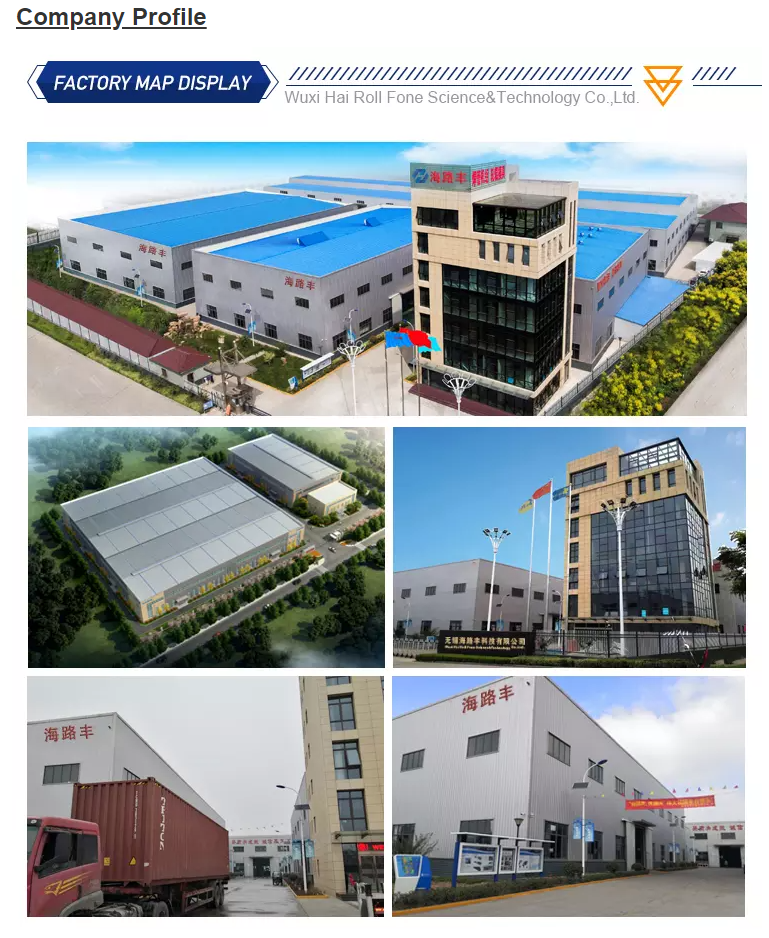

In 2009, Wuxi Hengruifu Technology Co., Ltd. was establishedCLocated in Wuxi City, Jiangsu Province, close to Shanghai International Airport, with convenient transportation and superior geographical location, it can provide good business opportunities for domestic and foreign investors. We are specialized in designing and manufacturing cable tray forming machines, supermarket shelf forming machines, highway guardrail forming machines, granary forming machines, solar pillar forming machines and other roll forming machines. These products are widely used in the field of steel structures, building construction, supermarkets, factory warehouses, school roofs, granaries, etc. In addition, we can also manufacture various types of steel coil slitting machines, coil cutting machines and pipe rolling mills. We are ready to establish business relationships with overseas customers, and we also believe in "opportunity is here, you are here" and our promise is quality and timely service, our goal is customer satisfaction.

Service philosophy

Pragmatic and innovative service spirit Modest and prudent service attitude Professional and high-quality service team Keen service awareness

Advantage

1. More than 20 years experience.

2.15-20 R&D team to ensure product R&D updates.

3.Quick response after receiving customer orders, 30-50 lead time.

4.We have an after-sales team of 15-20 people, ready to go to the customer's factory for commissioning and technical services at any time.
