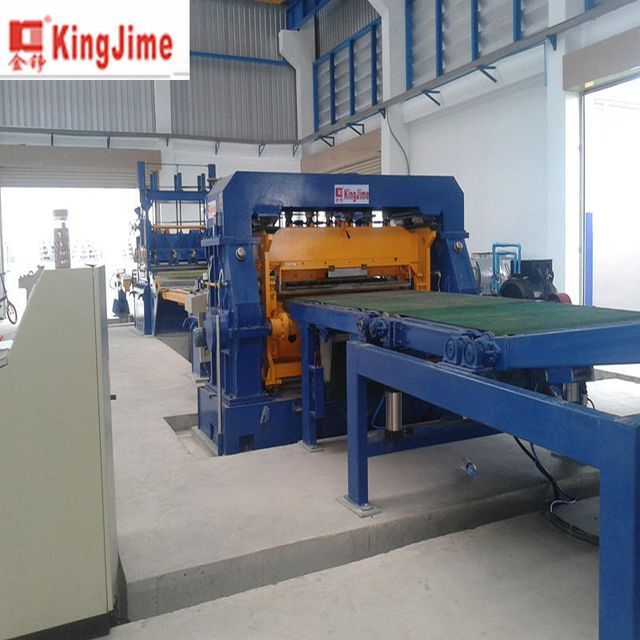

High-speed rotary shearing and cutting-to-length production line
-
Supplier: Dongguan Kingjime Machine Limited -
Region: Guangdong, China -
Contact: Ms Eileen Liu -
Price: $420000.00 / 1 - 1 sets
$160000.00 / >=2 sets -
Min. Order: 1 set
| Cutting speed: | 0-50m/minute | Cutting speed (m/min): | 1 - 100 m/min |
| Mechanical test report: | if | brand: | king jim |
| Post-warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Control System: | Siemens PLC |
| Warranty: | 1 year | Showroom location: | not any |
| Core components: | PLC, engine, bearing, motor | Coil weight (T): | 15 |
| Leveling accuracy (±mm/m): | 1.2±mm/m | Cutting width (mm): | 300 - 3000mm |
| Health status: | new | Main selling points: | High accuracy |
| payment terms: | Letter of credit, wire transfer | weight: | 15 tons |
| Material thickness (mm): | 0.3 - 3 mm | Applicable industries: | Energy and Mining, Printing Shops, Construction Engineering, Building Materials Shops, Machinery Repair Shops, Manufacturing Plants |
| Model: | KJF-3X1300 | After-sales service provided: | Engineers can repair machinery overseas, on-site installation, commissioning and training, on-site maintenance and repair services, online support, free spare parts, video technical support |
| Cutting width: | 1300mm | Cutting method: | Hydraulic shears |
| Packaging details: | Bare packaging, wooden packaging spare parts | Marketing type: | Hot Products of 2019 |
| Local service location: | Indonesia, Mexico | Video outbound inspection: | if |
| Cutting thickness: | 0.3-3mm | Core component warranty: | 1 year |
| Name: | Uncoilers and Shears Coil Cutting Machines |
High-speed cut-to-length cross-cutting line
Main technical parameters of high-speed rotary shearing and cutting to length production line:
|
1. |
application |
Stainless steel, aluminum, hot rolled, cold rolled |
|
2. |
Coil thickness |
0.3-3mm |
|
3. |
Coil width |
1300mm |
|
4. |
Line speed |
0-50m/minute |
|
5. |
Loading capacity |
15 tons |
|
6. |
Coil ID |
510/610mm |
|
7. |
Coil outer diameter |
≤2000mm |
|
8. |
Leveling roller diameter |
65 |
|
10. |
Number of leveling rollers |
19 |
|
11. |
Length accuracy |
±0.5mm/m |
|
12. |
Leveling accuracy |
±1.2mm/meter2 |
|
13. |
Feeding direction |
Right to left or left to right (customized |
|
14. |
power supply |
custom made |
Equipment list included in the scope of supply of high-speed decoilers, straighteners, decoilers and shears:
1. Hydraulic plate rolling truck
2. Hydraulic decoiler
3. Hydraulic inlet guide rail
4. Four/six high leveler
5. Ring Bridge
6. Side guide roller
7. NC servo feeding leveler
8. Measurement system
9. Shearing machine
10. Conveyor table
11. Pneumatic unloading device
12. Hydraulic lifting platform
13. Unloading stacker truck
14. Hydraulic system
15. Pneumatic system
16.Electrical system PLC control

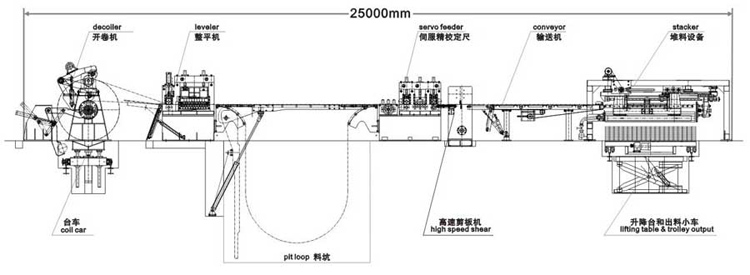

Arrangement of high-speed decoiler, straightening machine, decoiler, shearing machine and steel coil cutting machine:
-
