Steel plate flattener with cutting device

Product details
Material thickness (mm):0 - 0Marketing Type:normal product
Core components:PLC, engine, bearing, gearbox, motor, gear, pumpVoltage:380V/50HZ/3PH, 380V/50HZ/3PH
Core Components Warranty:3 yearsSpeed ​​of work:8-12m/min
Mechanical test report:ifMotor Power:11.5kW
rated power:11kWHealth status:new
Main selling point:easy to operateplace of origin; place of origin:Fujian China
payment terms:L/C,D/P,D/A,T/TVideo external inspection:if
Maximum thickness of steel:4mmCoil Weight (T):5
Dimensions (L*W*H):2407*2300*1600Cutting width (mm):0 - 0
Showroom location:not anyPackaging Details:Packed in a wooden box.
Material width:1300mmLeveling accuracy (±mm/m):null null
Warranty:3 yearsyear:2019
After-sales service provided:Provide overseas service centerweight:6000 kg, 3000
port:Xiamen Port, ChinaSupply capacity:20 sets per month
Applicable industries:Energy and Mining, Food and Beverage Plants, Restaurants, Mechanical Repair Shops, Building Materials Stores, Manufacturing Plants, Retail, Home Use, Farms, Food Stores, Printing Stores, Food and Beverage Stores, Construction Works, Advertising Agencies, Clothing Stores, Hotelsbrand:XHH
size:2407*2300*1600mmCutting speed (m/min):0 - 0

60000.0-75000.0/set

1.0 suit

50000-68000/set

1 set

20000.0-39900.0/set

1.0 suit

18000.0-35000.0/set

1.0 suit

Product Description

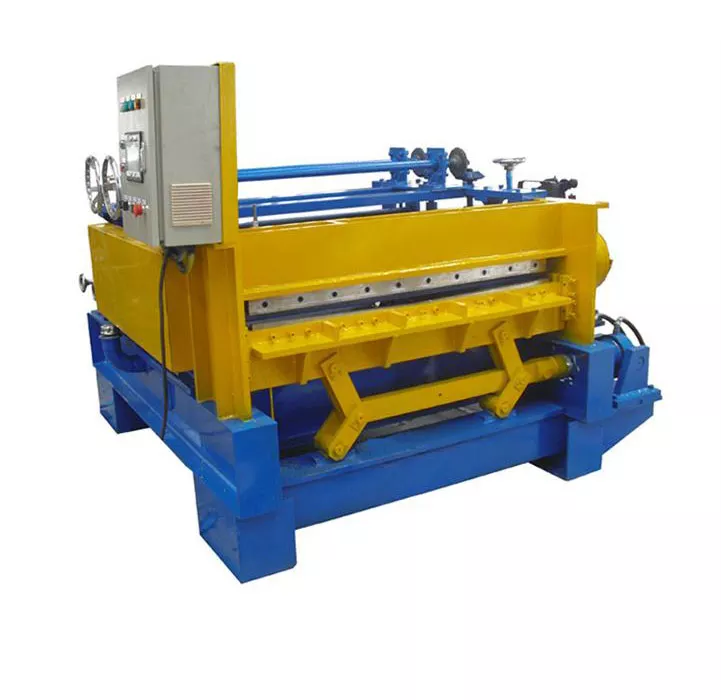

 Steel plate flattener with cutting device

brand XHH
Do not. ST1.0-1200
Voltage 380V/50HZ/3PH





Information on steel plate straighteners, sheet metal straighteners, levelers with straight and conical plate cutting devices are as follows:

Main accessories:

(1) the host;

(2) Automatic lifting table of feeding device;

(3) Flattening device;

(4) Hydraulic motor system;

(5) Touch PLC computer control system

Screen (brand: Schneider PLC, touch screen, encoder, inverter);

(6) Hydraulic cutting device;

(7) Receiving station (length: 2500mm);

(8) Tools;

(8) English operation manual;



Main technical data

size

2407*2300*1600mm

weight

6000KGS

Hydraulic motor power

11.5KW

processing speed

8-12m/min

Voltage

380V/50HZ/3PH

cut off system

Hydraulic cutting device

Flattened shaft material

High-quality 45# forged steel, hard chrome plating on the surface of the roller, shaft diameter: 135mm, 11 in total

maximum. thickness

4.0mm

maximum. width

1300mm

Spindle material

High quality 45# forged steel

Roller material

45# steel hard chrome plating

cutting blade material

Cr12 die steel quenching treatment 60-62°C

machine frame material

Fine Welded Structural Steel

sprocket

45 steel high frequency quenching



Application: Metal material: carbon steel hot rolled coil;

Buyer needs to provide enough metal material for testing machine.



feature:

Using flattening device, cutting device, PLC computer control system and hydraulic motor, the operation is simple and convenient;

It is suitable for flattening and cutting of color-coated sheet, galvanized steel sheet, aluminum sheet, etc.



flattened shaft
