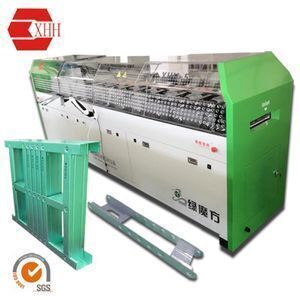

Light Gauge Steel Framing Machine for Prefabricated House of C89 Frame CAD Machine
-
Supplier: Xiamen Xinhonghua Machinery Co., Ltd. -
Region: Fujian, China -
Contact: Ms Sunny Zhang -
Price: $65000.00 /set -
Min. Order: 1 set
| Place of Origin: | Fujian China; | Weight: | 2500KGS; |
| Shaft material: | 40Cr; | Feeding Material Steel Strip Width: | 174mm(1219mm/7); |
| Packaging Detail: | 1.Machine is fixed in the container with steel ropes so that the machine is kept from being collided 2.Nude in the container or as your requires; | Voltage: | 380V/50HZ 3Phase; |
| Un-coiler: | 3t Hydraulic Steel Strip Un-coiler; | Brand Name: | XHH; |
| After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Material Strip Grade: | G300-G550 Galvanized Steel; |
| Profile Dimension(Web*Flange*Lip): | 89mm*38mm*9mm; | Type: | Steel Frame & Purlin Machine; |
| Key Selling Points: | High Safety Level; | Control system: | Movable Laptop Based Controlling Platform; |
| Cutting blade material: | SKD-11; | Power(W): | 7.5kw; |
| Roller material: | SKD-11; | Warranty: | 1 Year; |
| Certification: | SGS; | Type: | Steel Frame & Purlin Machine; |
| Port: | XIAMEN PORT,CHINA; | Production Capacity: | 600-720m/h panel frame; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops; | Supply Ability: | 20 Set/Sets per Month; |
| Payment Terms: | L/C,T/T; | Work Pressure: | 120 MPA---140 MPA; |
| Material Strip Thickness: | 0.7mm~1.2mm; | Condition: | New; |
| Dimension(L*W*H): | 3850*800*1100mm; |
1. Specifications of C89 Light Steel Frame CAD Roll Forming Machine for Prefabricated House
1)Main Techincal Data:
Size | 3850*800*1100mm |
Weight | 2500KGS |
Main Servo Motor Power | 7.5KW |
Hydraulic Power for Punching & Cutting | 7.5KW |
Forming Steps | 7 steps roll forming+2 steps reshaping |
Processing Speed | Typical Drywall Panel Frame 600-720m/h Roll Forming Speed without punch:2700m/h Over All Production Capacity:3-4tons/8hours |
Voltage | 380V/50HZ/3PH |

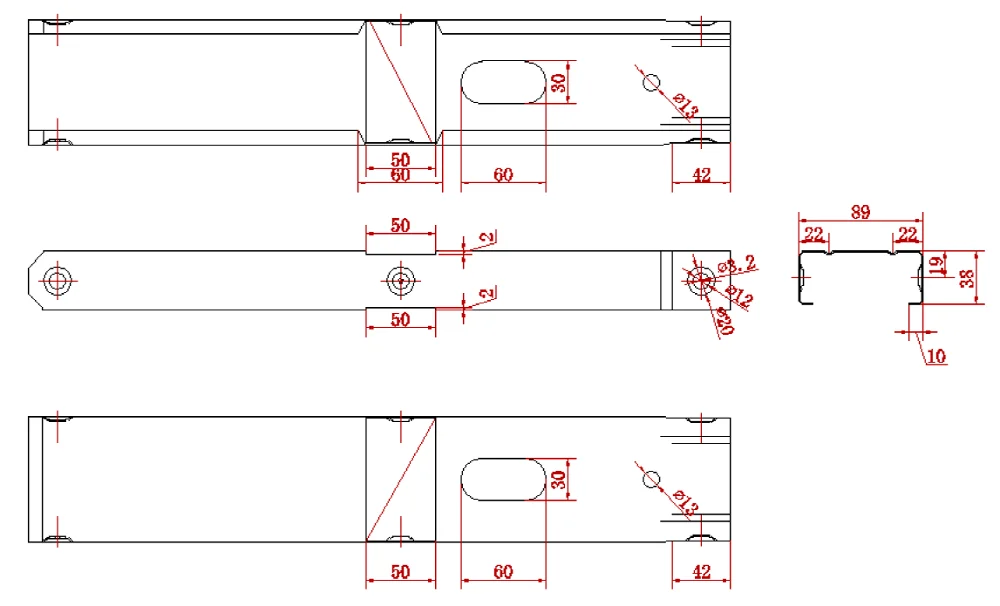

| Flange Height | 38mm |
Web Width | 89mm |
Lip Width | 9mm |
Tolerence Of Cutting & Punching | ±0.5mm |
Tolerence Of Forming | 0.75mm |
Forming Thickness | 0.7mm -1.2mm |
2)Main Accessories:
(1) Main Forming Machine;
(2) 3T Hydraulic Strip Uncoiler;
(3) Automatic Post Punching & Cutting Device;
(4) Hydraulic Motor System;
(5) IPC Computer Controlling System with Product Software;
(6) Hydraulic Post-cutter;
(7) Automatic Printing Device;
(8) Vertex BD Design Software;
(9) Run Out Table;
(10) Tools;
(11) Operation Manual.
-
