Oil Field Equipment Y343 packer open hole packer Acidizing packer in oil well

Y343 open -hole Packer

1. Basic Introduction

The open-hole packer is a hydraulic packer. Designed for open-hole fracturing systems, it is used for multi-stage separation and fracturing of open hole wells, and can also be used for the isolation of casings of various sizes. With its compact design, the packer can withstand a differential pressure of 70 MPa in the naked eye.

2. Technical Features

1) Expandable back ring to reduce the loss of rubber tube extrusion;

2) ratchet lock to maintain the load;

3) The integral rubber cylinder and the smooth metal back ring form a reliable sealing system;

4) The seat does not need to reciprocate and rotate;

5) The entire tool has a large diameter through hole;

6) Different metal parts and cartridges are designed to meet specific conditions in the well.

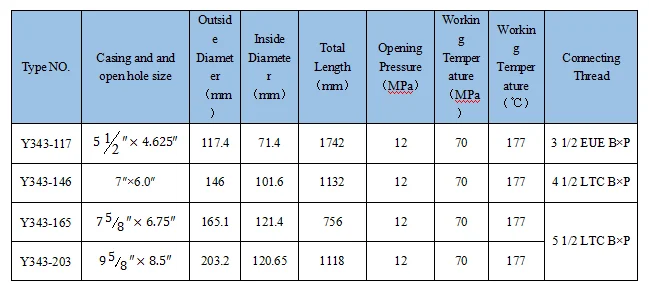

4.  Technical Parameters

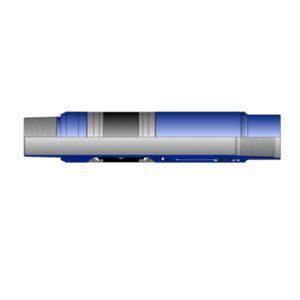

5.  Product rendering

Besides, we also provide other specification packer for your selection, please feel free to contact us directly or send a inquiry ;-)

Sichuan Weiwodun Chemical Industry CO,.Ltd was founded in 2006, which covers an area of 16000 square meters and located in Deyang, Sichuan. We have experienced technical stuff, professional factory and excellent sales team. And we passed ISO 9001, ISO 14001 and OHSAS 18001.  With years of constant pursuit for product research and development, we keep updating our product and now already have more than 20 patent certificates.

Q : Are you manufacturer or trading company?

A : We are an integrated company of manufacturing and trading. Expert R&D department and sophisticated supply chain is our key to success.

Q: What if I never import this product before, what should I do?

A: Don’t worry. We have professional fulfillment department will help you with every process.

Q: What’s the min order?

A: Different product has different min order. Please feel free to contact us with for your requirement.

Q: How long is your delivery time?

A: According to the quantity, we will ship soon if we have it in stock, otherwise 1-2 months to finish the production and package,

Q: What’s your terms of payment?

A: 30% in advance and the other 70% paid when we finish production and ship to the Chinese port.
