Payment Terms: | T/T,Western Union,MoneyGram; | Ejector Stroke(mm): | 30; |
Screw diameter (mm): | 16; | Machine size: | 800*240*450; |
Applicable Industries: | Manufacturing Plant,Food & Beverage Factory; | Screw Speed (rpm): | 1 - 220; |
Model Number: | BWS; | Showroom Location: | Canada,United Kingdom,United States,Philippines,Brazil,South Africa; |
Distance between Tie Bars(Width)(mm): | 120; | Screw L/D Ratio: | 20; |
Clamping Force (kN): | 150 kN; | Open Stroke(mm): | 80; |
Theoretical Shot Volume(cm³): | 40 cm³; | Brand Name: | BW; |
Plastic Processed: | PP,ABS,PVC,HDPE,PE; | Distance between Tie Bars: | 110*110; |
After Warranty Service: | Spare parts,Field maintenance and repair service; | Automatic: | Yes; |
Warranty: | 1 YEAR; | Injection Rate (g/s): | 200 g/s; |
Injection Weight (g): | 40; | Power (kW): | 4 kW; |
Ejector Force(kN): | 10 kN; | Opening Stroke: | 14cm; |
Plastic Type: | Thermoplastic; | Local Service Location: | Canada,United Kingdom,United States,Philippines,Brazil,Kenya; |
Place of Origin: | China; | Machine Type: | Electric; |
Type: | Tube Shoulder Injection; | After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Overseas service center available; |
Key Selling Points: | Energy saving; | Condition: | New; |
Style: | Horizontal; | Distance between Tie Bars(Height)(mm): | 120; |
Supply Ability: | 200 Set/Sets per Month; | Packaging Detail: | wooden; |
Weight (KG): | 100; | Product name: | mini injection molding machine; |
Advanced technology small products mini desktop plastic injection molding machine
Suitable for small products, mass varieties production

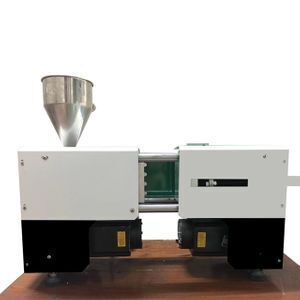

♥Machine Picture
♥Description
Desktop injection molding machine
Micro precision parts production
Small Electrical Appliances production
Small caps making machine
Wall anchor/ small cup injection molding
Small button making machine
Small toy accesories production
New product testing
♥Parameter
Mini injection molding machine parameter | |
Product material | PP/PE/ABS/PA/PEI/PC/PS... |
shot weight | 40gram |
Cooling type | water |
Power | AC220V/50HZ or as customer requirement |
Machine size | 800*240*450 |
Machine weight | 100KG |
Control | PLC |
Delivery | By air |

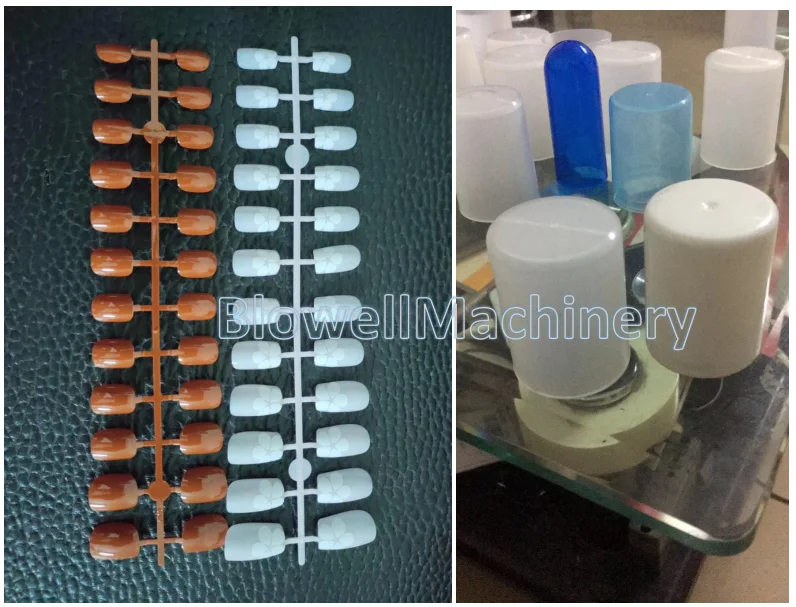

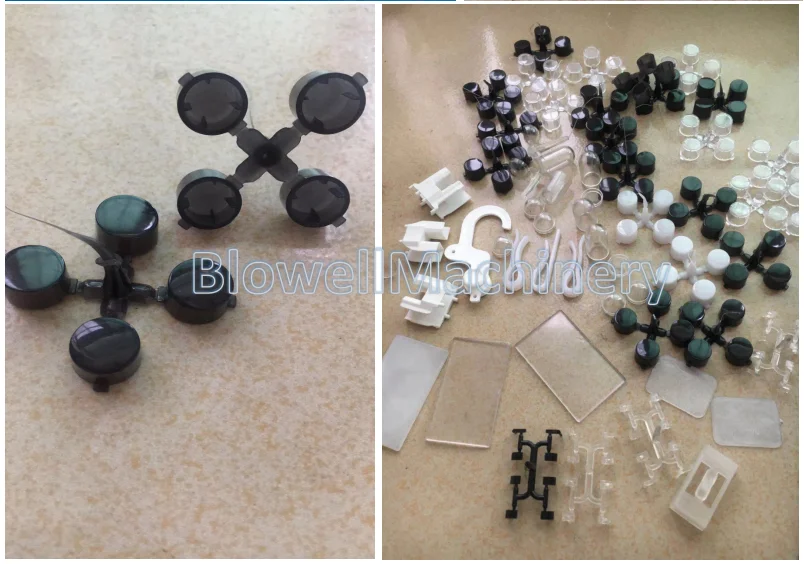

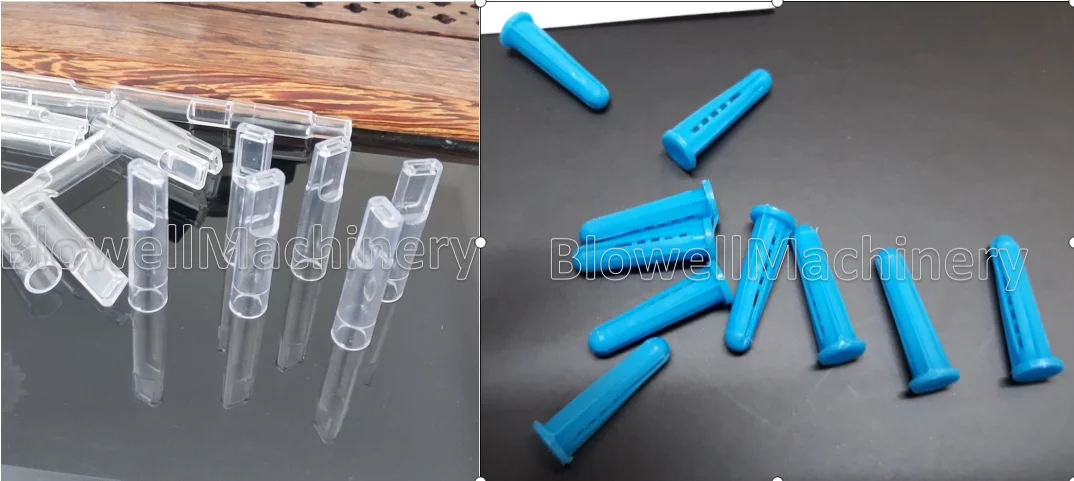

♥Product Picture
