Keyword: | Fire Fighting Truck; | Type: | Tanker; |
Condition: | New; | Brand Name: | I SU ZU GIGA; |
Port: | Shanghai; | Gross Weight: | 42000kg; |
Color: | Red; | Drive type: | 8x4; |
Extinguishant: | water, foam, dry powder; | Emission Standard: | EURO 5; |
Horsepower: | > 450hp; | Wheelbase: | 1850+4575+1370; |
Package Preview: | ; | Warranty: | 12 Months; |
Type of fire truck: | water foam and dry powder fire truck; | Packaging Detail: | Waxed in RO-RO, bulk ship, flat rack container; |
Drive Wheel: | 8x4; | Payment Terms: | L/C,T/T; |
Tank Capacity: | > 10000L; | Fuel Type: | Diesel; |
Place of Origin: | Hubei China; | Size: | 11995x2550x3800mm; |
Chassis brand: | I SU ZU GIGA; | Transmission Type: | Manual; |
Supply Ability: | 500 Unit/Units per Month; | Max. Work Height: | 45 - 60; |
tank volume: | water: 12000L, foam: 3000L, dry powder: 2000L; |

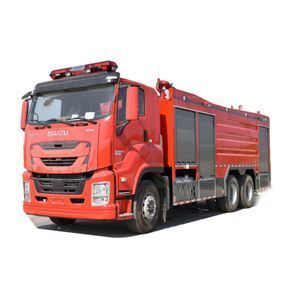

China factory directly sale I SU ZU GIGA water foam and dry powder fire truck
Fire apparatus, fire engine, fire truck, or fire appliance is a vehicle designed to assist in fighting fires by transporting firefighters to the scene and providing them with access to the fire, along with water or other equipment.
as the manufacturer of the fire truck/ fire fighting truck/ fire engine, with different brands of chassis, like Dongfeng, 1SUZU, Jiangling, Sinotruk, or other imported brands of new truck, also could be made various function of fire truck/ fire fighting truck/ fire engine with various tank capacities, from 2000l to 15000l(2t-15t) tank of the fire truck/ fire fighting truck/ fire engine.
Fire truck main technical specifications:
Water Foam Powder Combined Fire Fighting Truck
Water Foam Powder Combined Fire Fighting Truck | |||
General | Vehicle Brand | XDR | |
Chassis Brand | Japan Brand | ||
Overall Dimension | 11995x2550x3800mm | ||
GVW Weight | 42000kg | ||
Approach/departure angle | 17/13 (°) | ||
Cab | Cab Seat | 5,6 | |
Air Conditioner | optional | ||
Chassis | Drive Type | 8*4 | |
Transmission | Manual | ||
Wheelbase | 1850+4575+1370 | ||
Tyre Specification | 315/80R22.5 | ||
Tyre No. | 12+1 | ||
Max Speed | 98km/h | ||
Paint | Red or as request | ||
Engine | Fuel Type | diesel | |
Engie Model | 6WG1-TCG51 | ||
Engine Brand | Wushiling | ||
Power | 339kw/460hp | ||
Displacement | 15681cc | ||
Emmission Standard | Euro 5 | ||
Superstructure | Water Tank | 12000L with carbon steel | |
Foam Tank | 3400L with stainless steel | ||
Powder Tank | 2000L with stainless steel | ||
Others | Water Pump | CB10/100,100L/S | |
Fire Monitor(water & foam) | PL80W,80L/S | ||
Fire Monitor(Powder) | PF30 | ||
Optional | Color for optional, LHD and RHD for optional,Air conditioner for optional |
Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7, IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,KARRY,CNJ,T-KING,UD,HINO,etc.
Product Series
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck
Special service from factory:
1. We have trucks produced on national standard demands;
2. We have engineers to help the client customise product;
3. We have 1 year guarantee for our products after-sale;
4. Welcome clients here for a visit!
