Weight: | 270.0g±5g(With cable); | Port: | Guangzhou/Shenzhen; |
Professor: | 32-bit ARM MCU + DSP; | Size: | L*W*H:150 * 107 * 103(unit:mm); |
Scan Element Type: | CMOS; | Type: | Barcode Scanner; |
Material: | ABS; | Trigger Mode: | Auto-Sensing; |
Sensor: | Planar CMOS sensor;300000 pixels; | Colour Depth: | 32 Bit; |
Power Supply: | DC 5V ±5%; | Interface Type: | USB; |
Print Contrast: | 25%; | Optical Resolution: | 10mil; |
Scan Speed: | 200times/sec; | Supply Ability: | 50000 Piece/Pieces per Month; |
Prompt Mode: | Buzzer, Indicator Light(LED); | Payment Terms: | L/C,T/T,Western Union; |
Products Status: | Stock; | Place of Origin: | Guangdong China; |
System Supported: | Linux,Android,Windows XP,7,8,10; | Brand Name: | GTCODESTAR; |
Packaging Detail: | Bubble Bags and Kraft Paper Box; |
2D Payment Scanning Platform qr code scanner

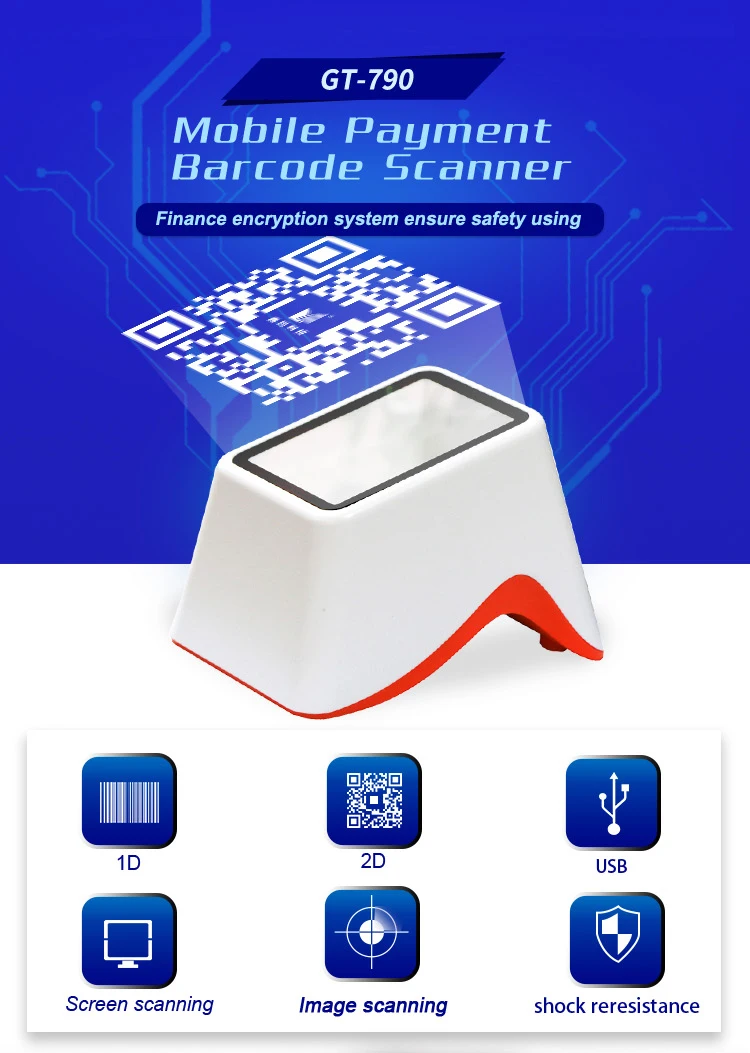

Model | GT-790 |
Item | 2D Payment Scanning Platform |
Material | ABS |
Power Supply | DC 5V ±5% |
Power Consumption | 520mW(working);540mW(standby);580mW(maximum) |
Weight | 270.0g±5g(With cable) |
Size | L*W*H:150 * 107 * 103(unit:mm) |
Color | Orange+white |
Professor | 32-bit ARM MCU + DSP |
Interface | USB cable;(RS232 can be customized) |

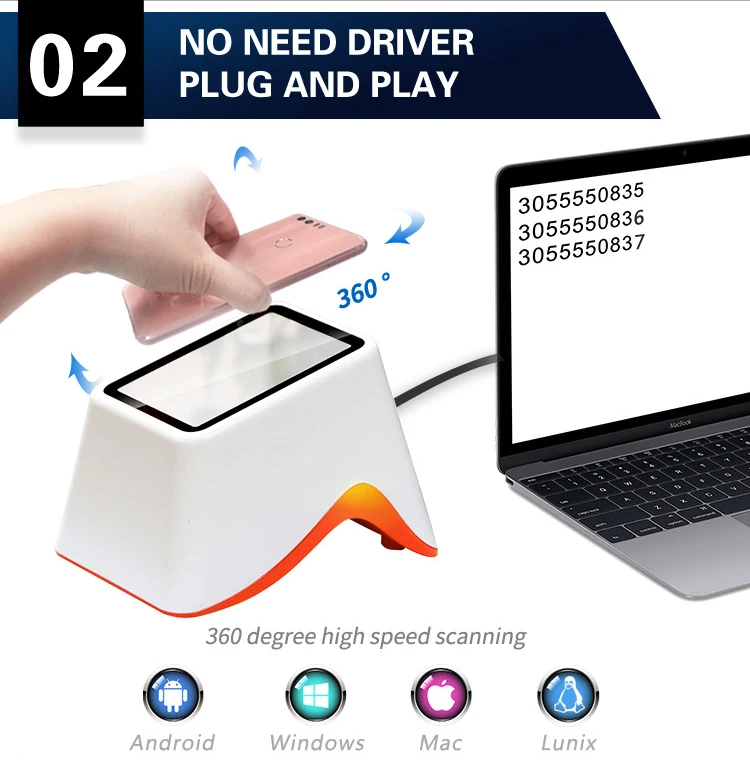

System Supported | Linux,Android,Windows XP,7,8,10,MAC |
Language Supported | English; French; German (Language can be customized) |
Light Source | White LED |
Resolution | 10mil |
Bit Error Rate | 1/5000000 |
Motion Tolerance | code 128:15cm/sec QR:25cm/sec |
Reading Mode | Image |

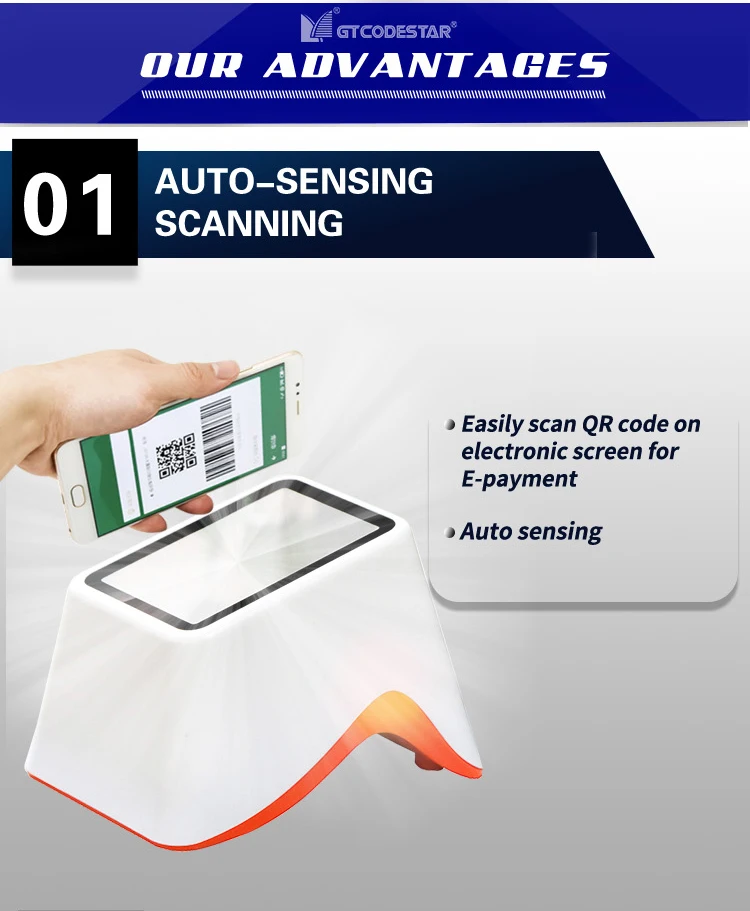

Trigger Mode | Auto-Sensing |
Professor | 32-bit ARM MCU + DSP |
Prompt Mode | Buzzer |
Print Contrast | ≥25% |
Decoding Capability | Read all standard 1D and QR code |

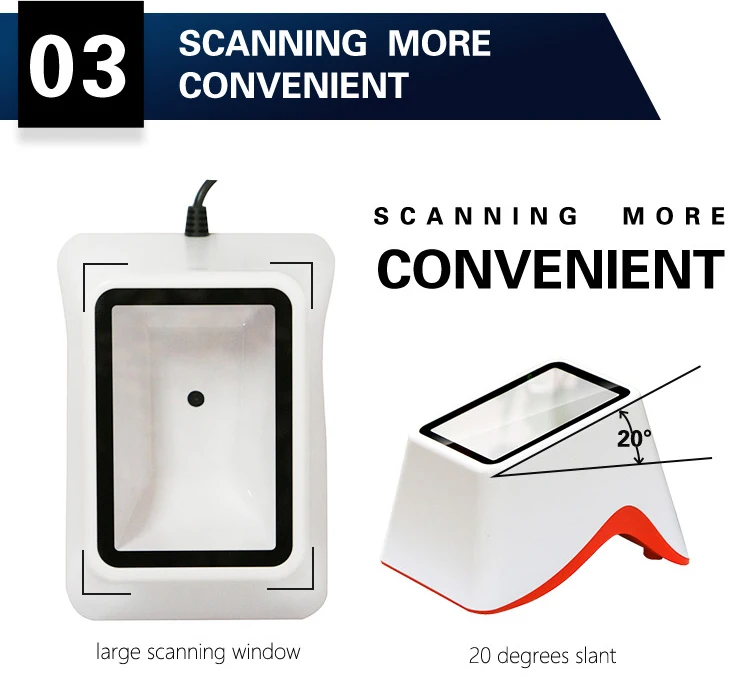

Scanning Angle | Roll360°, Pitch45°,Yew45° |
Scanning Depth | code:0cm - 12cm |
IP Grade | IP52 |
Operating Temp. | 0 to 50℃ / 32 to 122℉ |
Storage Temp. | 0 to 50℃ / 32 to 122℉ |
Operating Humidity | 20% to 85%(No Condensation) |
Storage Humidity | 20% to 85%(No Condensation) |
ESD Protection | 15KV air discharge |
Shock Resistance | Buzzer, Indicator Light(LED) |
Shock Resistance | 1.2m free fall on concrete surface |
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,FDA etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
