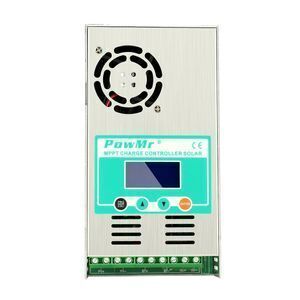

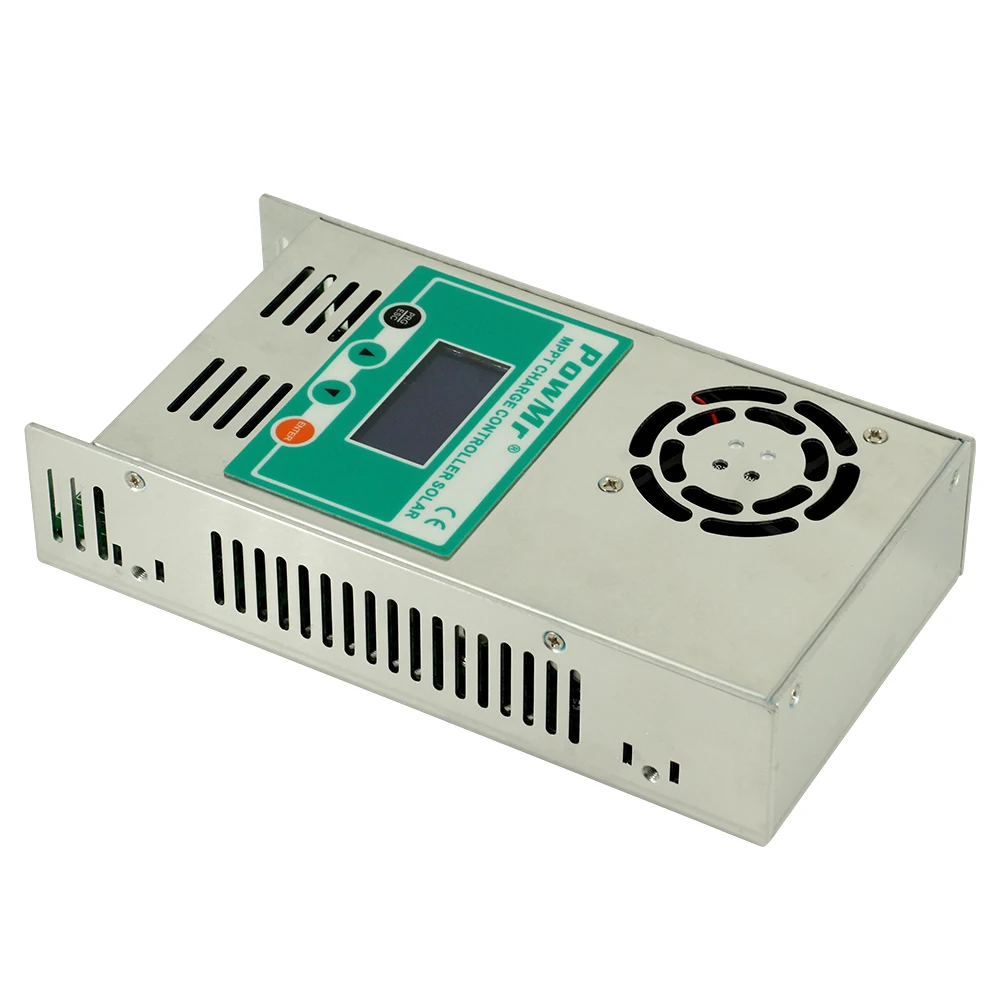

PowMr Factory Directly MPPT 30A 40A 50A 60A Solar Controller 12V/24V/36V/48V Auto With Max PV Input 160V for Solar System

Supplier: Shenzhen Hehejin Industrial Co., Ltd.
Region: Guangdong, China
Contact: Mr Tony Zou
Price: $52.89 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	CE;	Max PV Voltage:	160V;
Brand Name:	PowMr;	Single package size:	15X10X8 cm;
Charge efficiency:	MPPT Maximum Power Point Tracking 98%;	Type:	MPPT;
Model Number:	HHJ-30A 40A 50A 60A;	Selling Units:	Single item;
Charrge batter:	Lead acid,li battery;	Package Preview:	;
Place of Origin:	Guangdong China;	Packaging Detail:	Solar Energy Products Stander Carton Box 1MPPT 30A/40A/50A/60A Solar Charge Controller 1English User Manual;
Single gross weight:	1.5 KG;	Product name:	MPPT 30A 40A 50A 60A Solar Charge Controller;
Rated Current:	30A 40A 50A 60A;	Application:	Charger Controller,Water Heater Controller,Wind Controller,Collector Controller,Solar Working Station,Lighting Controller,Thermal Controller,Voltage Controller,Solar System Controller;
System voltage:	12V/24V/36V/48V Auto;	Max PV Power:	360W~2800W;
Charge mode:	3 Stages: Constant Current (MPPT);	Color:	Silver;
Certification:	CE RoHS ISO9001;	Warranty:	2 years,2 Years;
Work Time (h):	Accept Setting;	Weight:	1.3kg;

Hot Deals

30A 40A 50A 60A Solar Charge Regulator MPPT Solar Controller for 12V/24V/36V/48V DC System with cool fan and back-light LCD Display MPPT-30A 40A 50A 60A

Product Description

1- 100% MPPT controller

2- Intelligent Maximum Power Point Tracking technology

3- Built-in DSP controller with high performance

4- Automatic battery voltage detection 12V/24V/36V/48V

5-Three-stage charging optimizes battery performance

6- Multi-function LCD displays

7- Reverse polarity protection of solar panel

8- Overcharge protection

9- Can be mounted easily

10- Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

Notes: The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

Function

Overcharge protection

Input reverse protection

Output limited current protection

Over-temperature protection

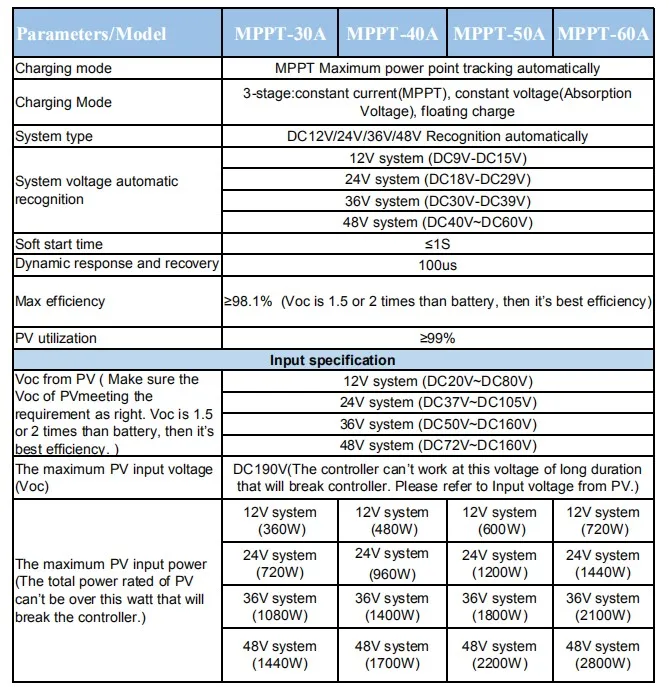

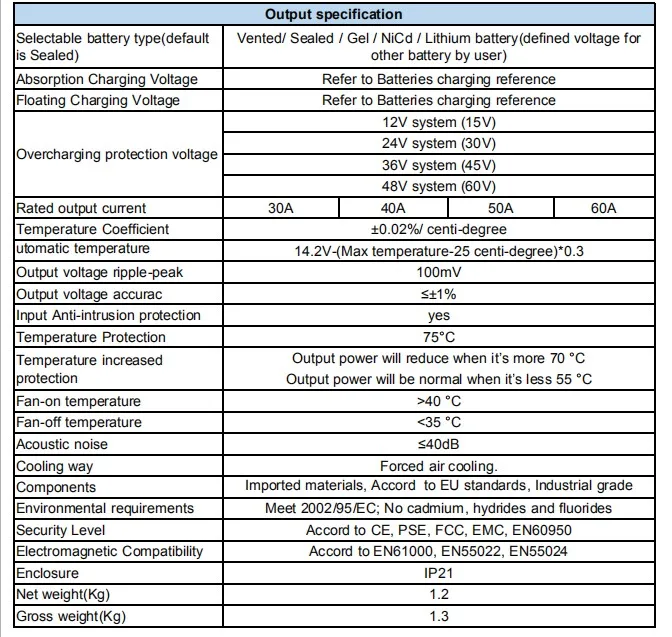

Specification
