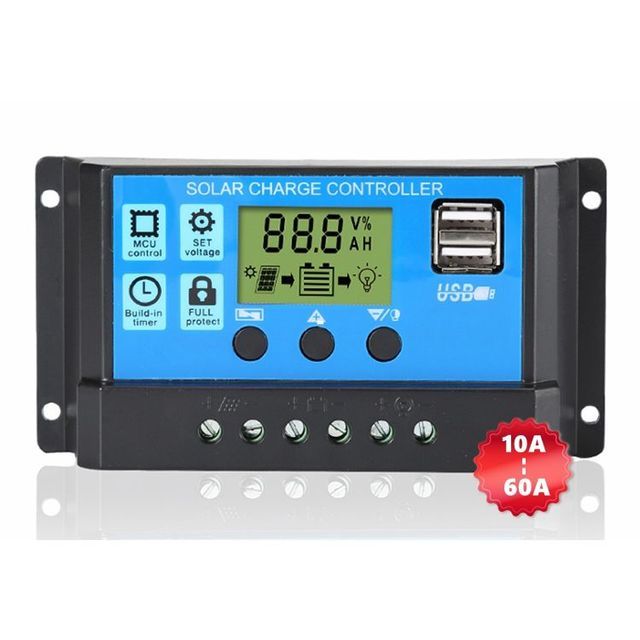

Sun Power Auto 12V 24V Battery Voltage Regulator 10a 20a 30a 40a 50a 60a PWM Solar System Power Charge Controller

Supplier: Guangzhou Demuda Optoelectronics Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Jack Ye
Price: $8.80 / 1 - 100 pieces
$7.98 / 101 - 1000 pieces
$4.80 / 1001 - 9999 pieces
$0.50 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	1 year	model:	YJSS-25
size:	18.294.5cm	Operating temperature:	-35~+60℃
port:	Guangzhou/Shenzhen/Hong Kong	USB output:	Max 5V/2A
Packaging Details:	Put it in a color box together with the manual, and the outer packaging is a large carton.	Origin:	Guangdong, China
payment terms:	L/C, Western Union, T/T, MoneyGram	Maximum photovoltaic voltage:	50V
type:	pulse width modulation	brand:	Demda
Supply capacity:	100000 pieces per month	Battery Type:	Lead Acid Battery Charger
Certificate:	ROHS, CE, ISO9001, ISO14001	Maximum photovoltaic power generation:	3000W
Package preview:		application:	Charge Controllers, Solar Workstations, Lighting Controllers, Voltage Controllers, Solar System Controllers
USB:	2 USB	Protective function:	Overcharge, overdischarge, overload, short circuit protection
Float voltage:	b1/14.4V, ~14.2V, b2 b3~14.6V, l adjustable: 13V-15V	Disconnect and reconnect:	12.6V, adjustable: 11.5V~13V
Working hours (hours):	24 hours	charging method:	Solar panel charging in sunlight
Unloading stop:	10.7V, adjustable: 9.5V-11.5V

Recommended Products

Product Description

PWM Solar Charge Controller 12V/24V10A 20A 30A 40A 50A 60Ausable
1【wide compatibility】The solar charge controller is automatically compatible with 12V or 24V systems, suitable for lead-acid batteries. Dual USB 5V output ports support mobile phones, tablets or other devices that require 5V voltage.
2【reliable protection】The solar charging voltage regulator provides overcurrent protection, short circuit protection, reverse connection protection, low voltage and overcharge protection, it is a reliable protector for your equipment.

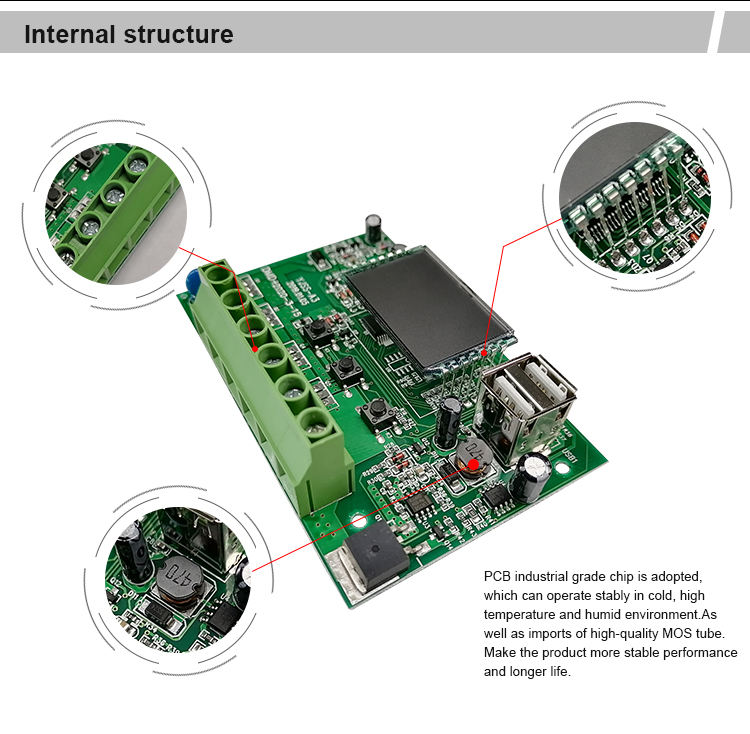

3【smart controller】Built-in industrial microcontroller, automatic management, memory of various parameters set by the user, the data will not be lost when the battery is exhausted.

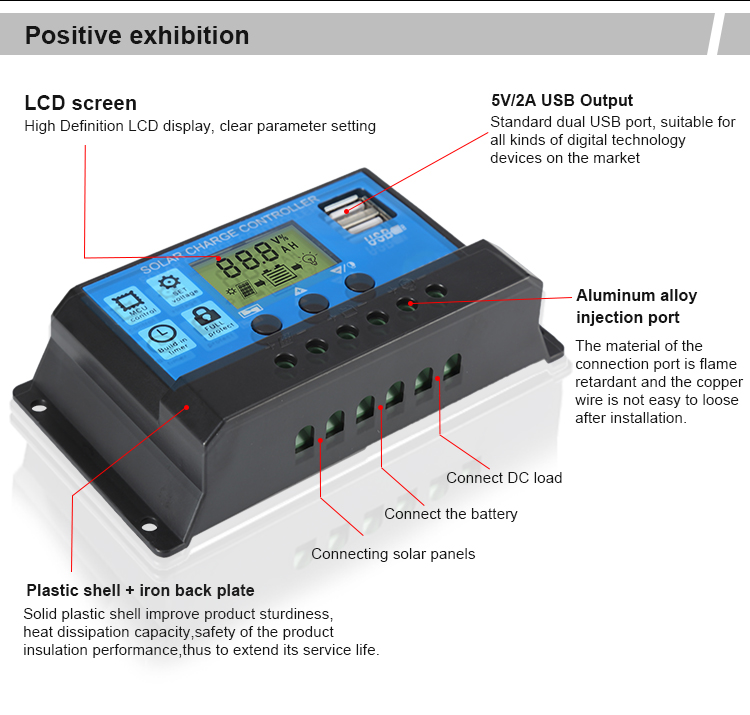

4【digital LCD display】Intuitive LCD display, can clearly indicate status and data, can switch modes and parameter configuration, suitable for home, industry, business, etc.
5【easy to use】The charge controller should be connected to the battery first, then to the solar panel, and finally to the load! You can change settings with a simple one-button operation.

Please feel free to contact us for test samples

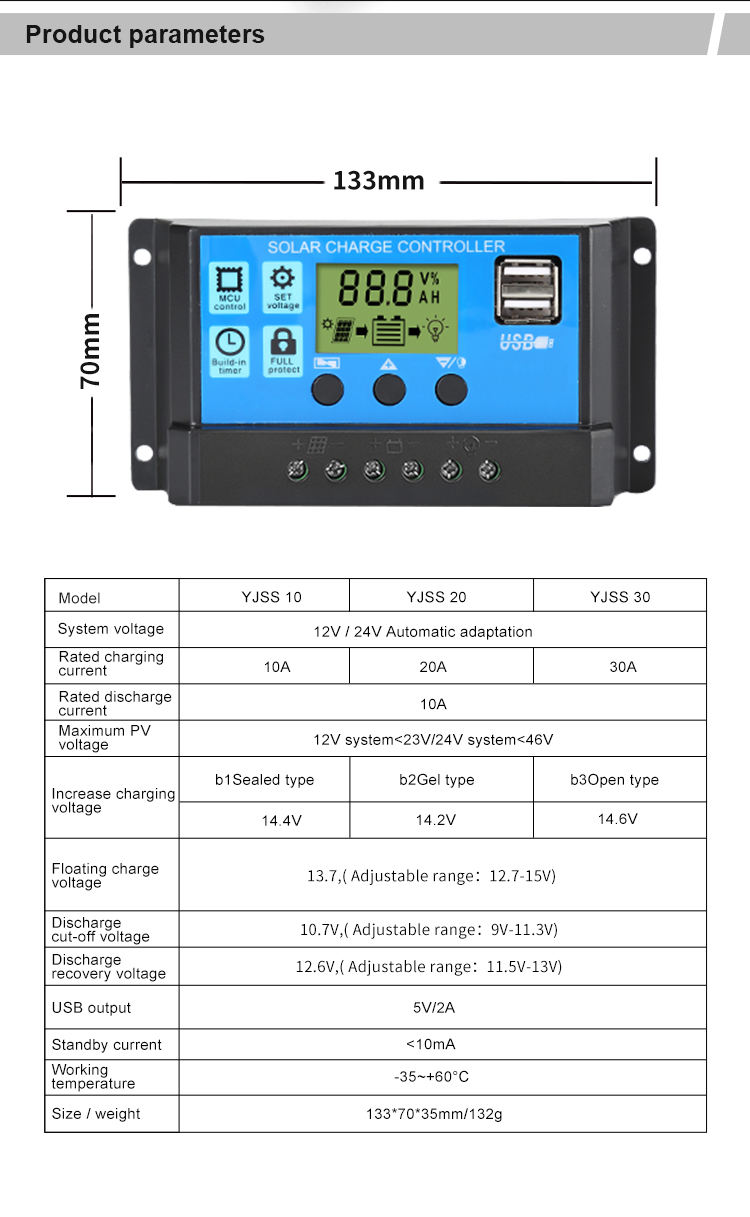

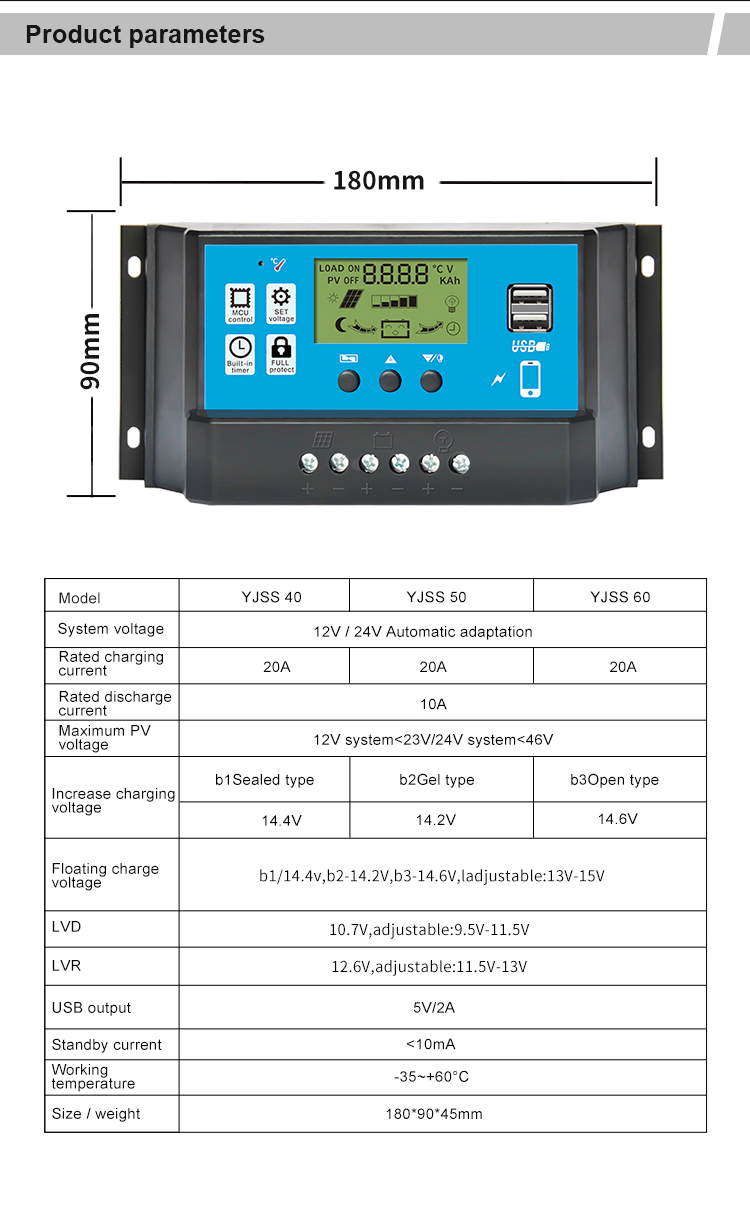

Specification

thing	size	weight
YJSS-10A 12A/24V	1337035 mm	0.15 kg
YJSS-20A 12A/24V	1337035mm	0.16 kg
YJSS-30A 12A/24V	1337035mm	0.16 kg
YJSS-40A 12A/24V	1824590mm	0.38 kg
YJSS-50A 12A/24V	1824590mm	0.38 kg
YJSS-60A 12A/24V	1824590mm	0.38 kg
