Low Frequency 8kw 10kw 12kw ac to dc Pure Sine Wave Charger Power Inverter Off Grid Power 48V 72v

Product details
LCD Monitor:Setting and displaying inverter parametersMaximum photovoltaic voltage:145V
model:GS1K-12KMaximum photovoltaic power:7000W
Packaging Details:Standard export package pure sine wave off-grid 8KW 10KW 12KW inverterapplication:TV, computer, fan, air conditioner, charger controller, wind controller, collector controller, water heater controller, solar workstation, lighting controller, thermal controller, voltage controller, solar system controller
Origin:Guangdong, ChinaDC input voltage:48v/72v optional
brand:Zoomlion Powerport:Shenzhen
Protect:Overload, low battery, short circuitSupply capacity:10000 pieces per month
Working hours (hours):24 hoursOutput waveform:pure sine wave
Operating mode:AC/DC priority mode can be setpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Wechat
Certificate:CE, IEC, ISO9001, CE, ETLproduct name:Pure sine wave off-grid 8KW 10KW 12KW inverter power supply
Package preview:Peak power:3 times the rated power
Warranty:24 months, 24 monthstype:MPPT
Product Description

Pure sine wave off-grid 8KW 10KW 12KW inverter power supply

Various household appliances, office equipment, solar power generation systems and other equipment using single-phase power supply.

main features

◆PW pure sine wave charger inverter 8-12kw.

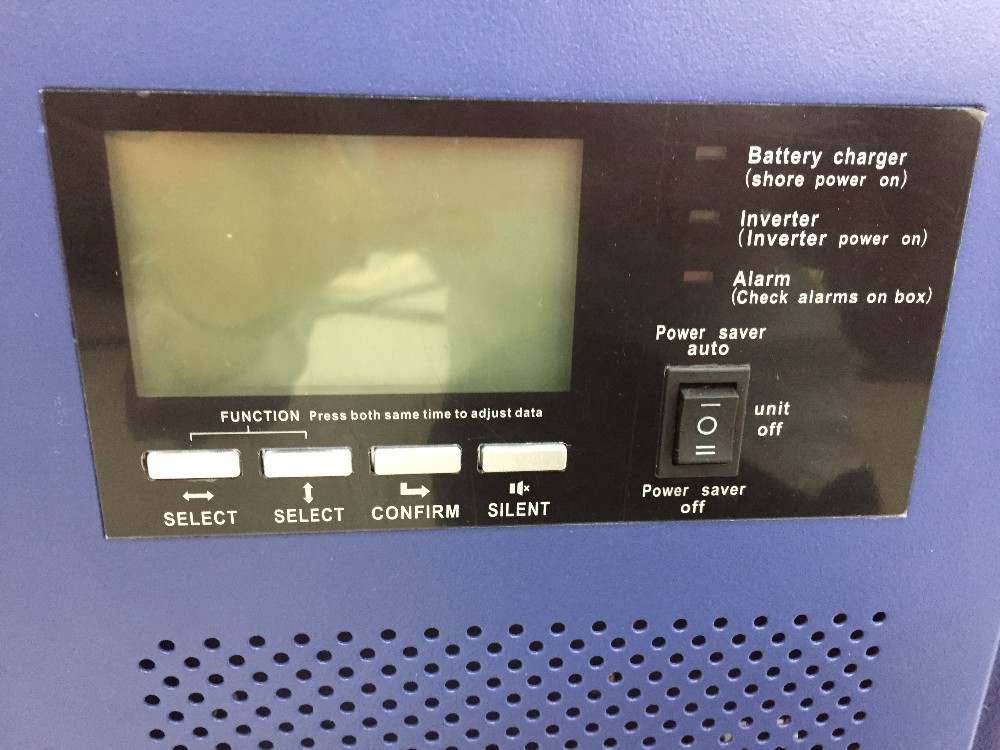

◆LED/LCD display, LCD enhanced function settings, man-machine intelligent design.

◆5 adjustable AC charging current. AC charging can also be turned off.

◆AC and DC priority mode can be set.

◆RS-232, generator restart signal. (dry contact)

◆3 times the peak power. Strong load capacity.

◆Overload, output short circuit protection.

technical specifications

Battery rated voltage
12VDC
24V DC
48VDC
Rated charging current
60A
60A
60A
PV array voltage
40VDC
55VDC
110VDC
Maximum photovoltaic power
900W
1750W
3500W
detailed image
