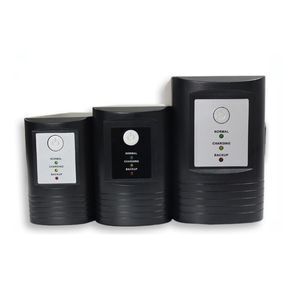

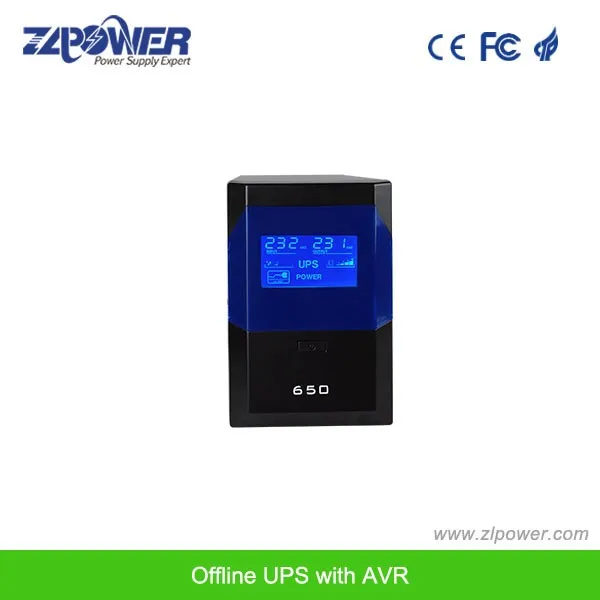

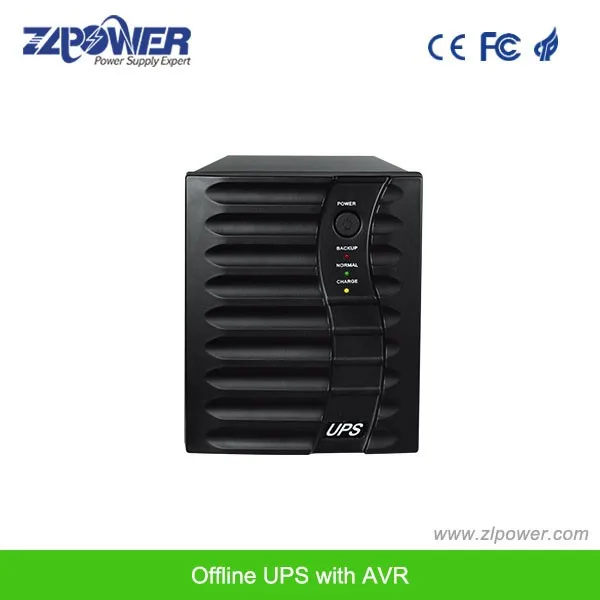

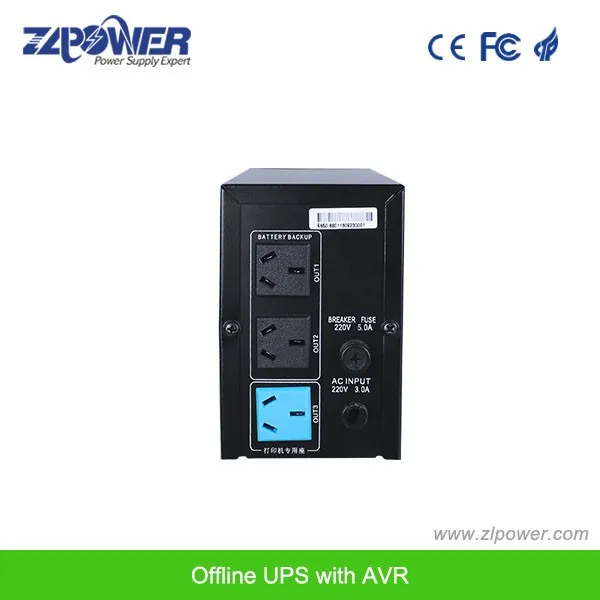

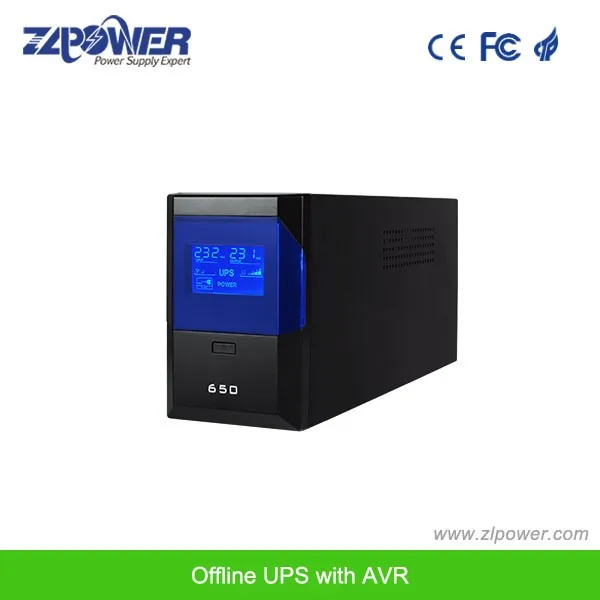

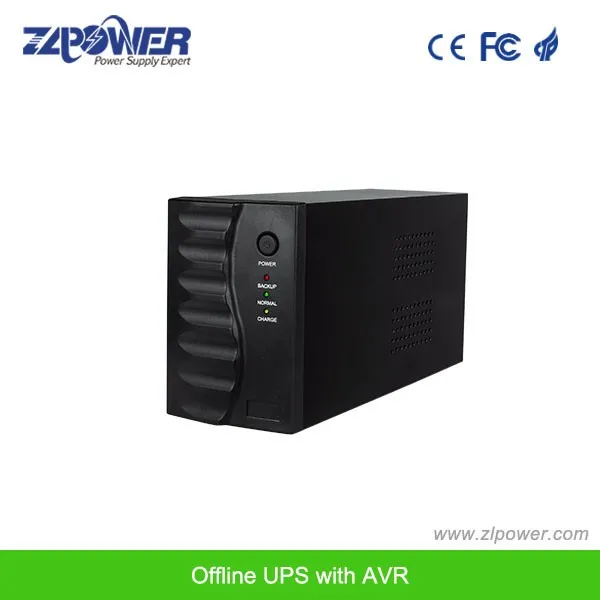

500VA 600VA 650VA 800VA 850VA Offline UPS for computer with AVR function Offline UPS

Click here to contact
Product details
Weight:as per model;Brand Name:Offline UPS with AVR;
Supply Ability:50000 Unit/Units per Month;Power factor:0.6;
Model:500-800va offline ups for computer with AVR function;DB-9 port,communication software:Optional RS232, RJ11, RJ45, USB;
Wave Form:Square wave;Modern/Line Surge Protection:RJ11/RJ12/RJ45;
Phase:Single Phase;Off mode charging:Yes;
Type:Offline UPS;Packaging Detail:small ups for computer;
Model Number:500-800va;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Output Voltage:220VAC/120VAC ±10%;Protection:Short Circuit;
Application:Computer;LCD/LED display:optional;
Good for computer as backup:yes;Transfer Time:6-8 ms;
Output frequency:50Hz/60Hz ±5%;Place of Origin:Guangdong China;
Port:Shenzhen Port;
500VA 600VA 650VA 800VA  850VA Offline UPS for computer with AVR function Offline UPS


Product Description


Main Features
*500-800va Equipped with Boost and Buck AVR to stabilize input voltage.
*Wide input voltage range, AVR function.
*Built in DC start function enables UPS to start up without AC power supply.
*Intelligent battery management, support RS232 and USB communication monitoring;
*Modem/Line Surge Protection: RJ11/RJ12/RJ45.
*Overload/ Over charge/ Short-circuit/Low battery automatic alarm protection.
*Auto restart while AC recovery.


Application

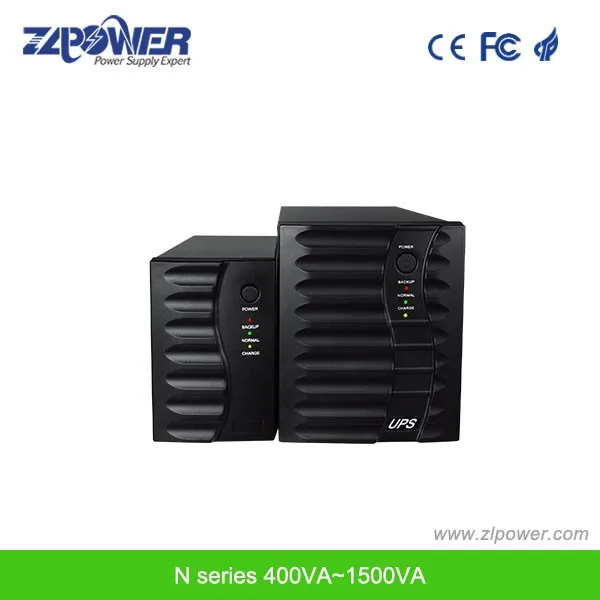

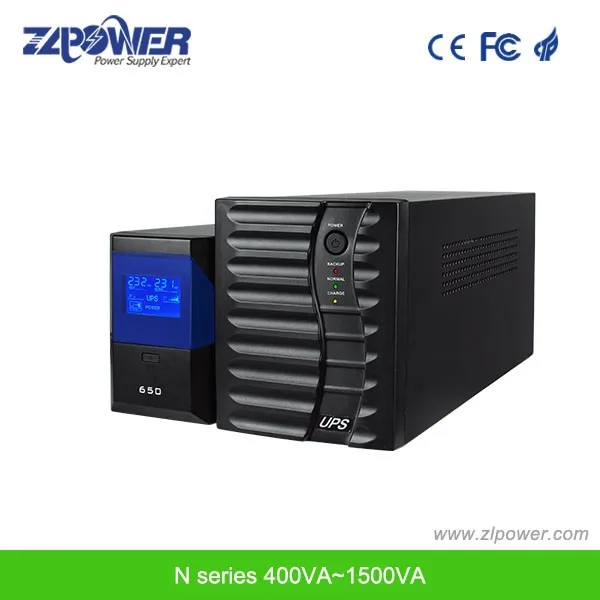

N series 500va 650va 800va offline ups for computer with AVR function uninterrupted power supply Widely used in protection of PC in govemment offices,education institues and SMEs.


Specification
Offline UPS with AVR MODELN400N500N650N800N1000N1200N1500
Nominal Capacity400VA/240W500VA/300W650VA/390W800VA/480W1000VA/600W1200VA/720W1500VA/900W
InputVoltage Range145~280VAC/ 80VAC-150VAC
Frequency50/60Hz
OutputVoltage Range220VAC/120VAC ±10%
Frequency50Hz/60Hz ±5%
Output WaveformSine Wave (AC Mode), Square Wave (Battery mode)
Transfer time< 8ms
BatteryTypeSealed free maintenance lead acid battery
Capacity12V,4AH *1PCS12V,7AH *1PCS12V,7AH *1PCS12V,9AH *1PCS12V,7AH *2PCS12V,9AH *2PCS12V,9AH *2PCS
Recharge Time8 hrs to 90% of capacity full load discharge
ProtectionAuto protect
Back-up time(at a PC load with 15"monitor)10 minutes18 minutes18 minutes22 minutes30 minutes35 minutes35 minutes
FunctionAuto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port,communication softwareOptional RS232, RJ11, RJ45, USB
ProtectionAC modeFuse
Short circuitACFuse
Invert modeAuto protect
AlarmAlarmBattery dischargeAlarm beeps every four seconds
Low battery voltageAlarm beeps every second
OverloadAlarm beeps continuously
Indicator lightAuto adjustGreen lighting: AC mode
Battery DischargeRed lighting: Battery mode
EnvironmentOperating temperature0°C~40°C
Operating Humidity0-90% non-condensing
Noise<35dB (1 meter distance)
UPS Dimension(L×W×H)mm250*90*145 291*90*145330*90*145340x122x190
Net weight (N.W)4KG4.5KG5KG8.4KG9.4KG9.4KG
Gross weight (G.W)4.3KG4.8KG5.3KG8.7KG9.7KG

9.7KG
