Topology: | Offline | Supply capacity: | 10,000 pieces per month |
application: | computer network | Packaging details: | carton |
Rated voltage: | 220/230/240Vac | Catalog number: | EL1200USBIEC |
Protect: | short circuit | Communication port: | USB port |
type: | support | Surge protection: | IEC 61643-1 |
Warranty: | 3 years | Input voltage range: | 184-264V |
Input | Output phase: | single | rated power: | 1200VA | 750W |
weight: | 6.7kg | Safety/Electromagnetic Compatibility: | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB report, CE mark |
model: | EL1200USBIEC | stage: | Simplex |
battery capacity: | 2pcs*12V7Ah | brand: | Eaton |
payment terms: | Western Union, D/P, D/A, T/T | Place of origin: | Guangdong, China |

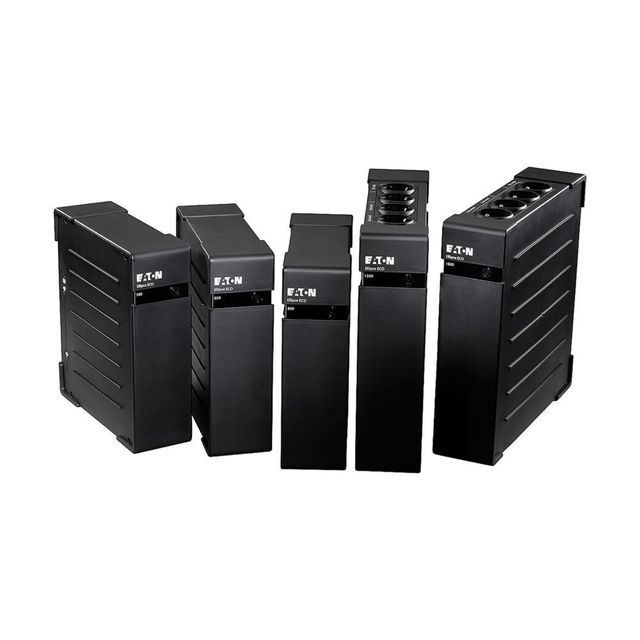

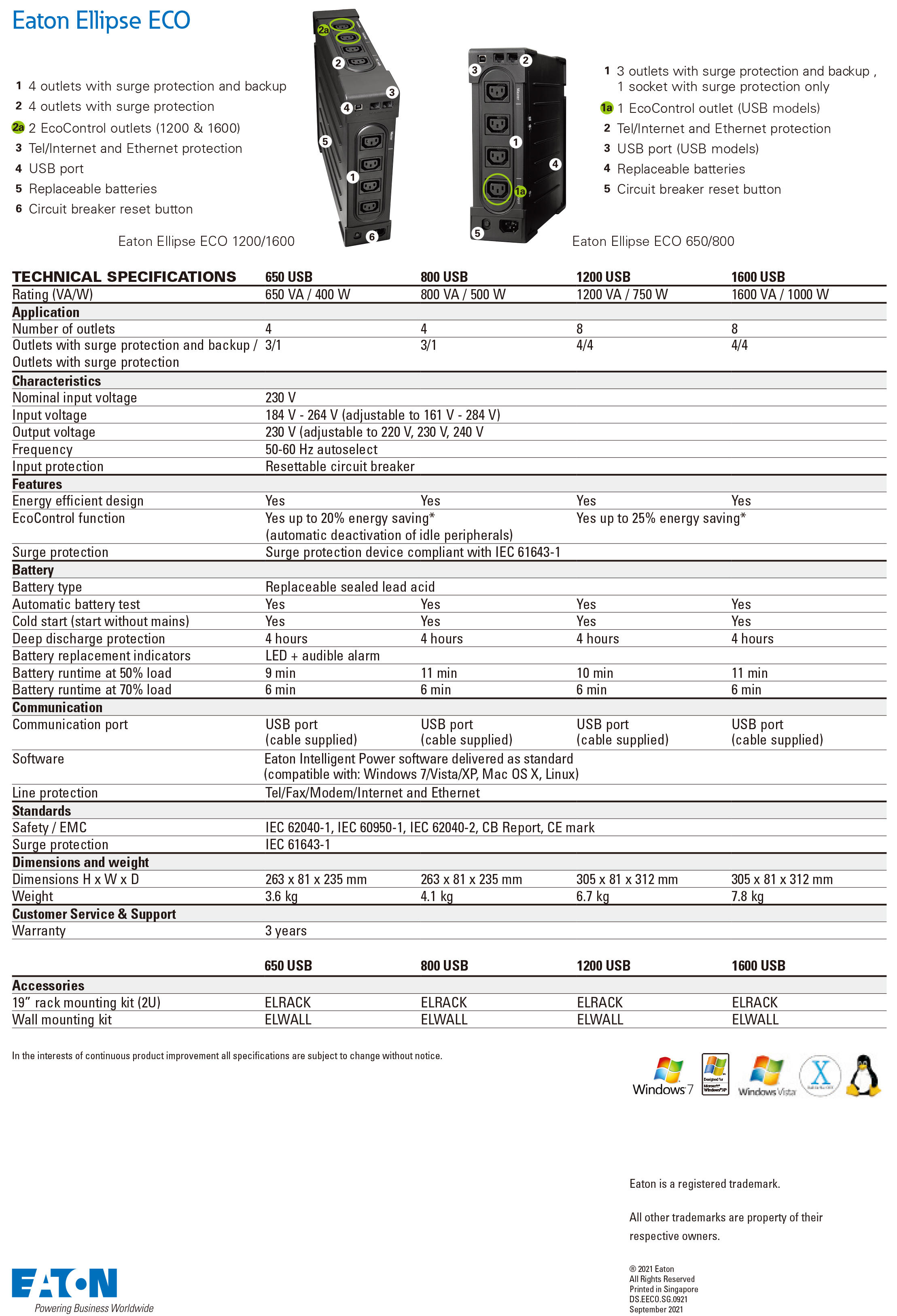

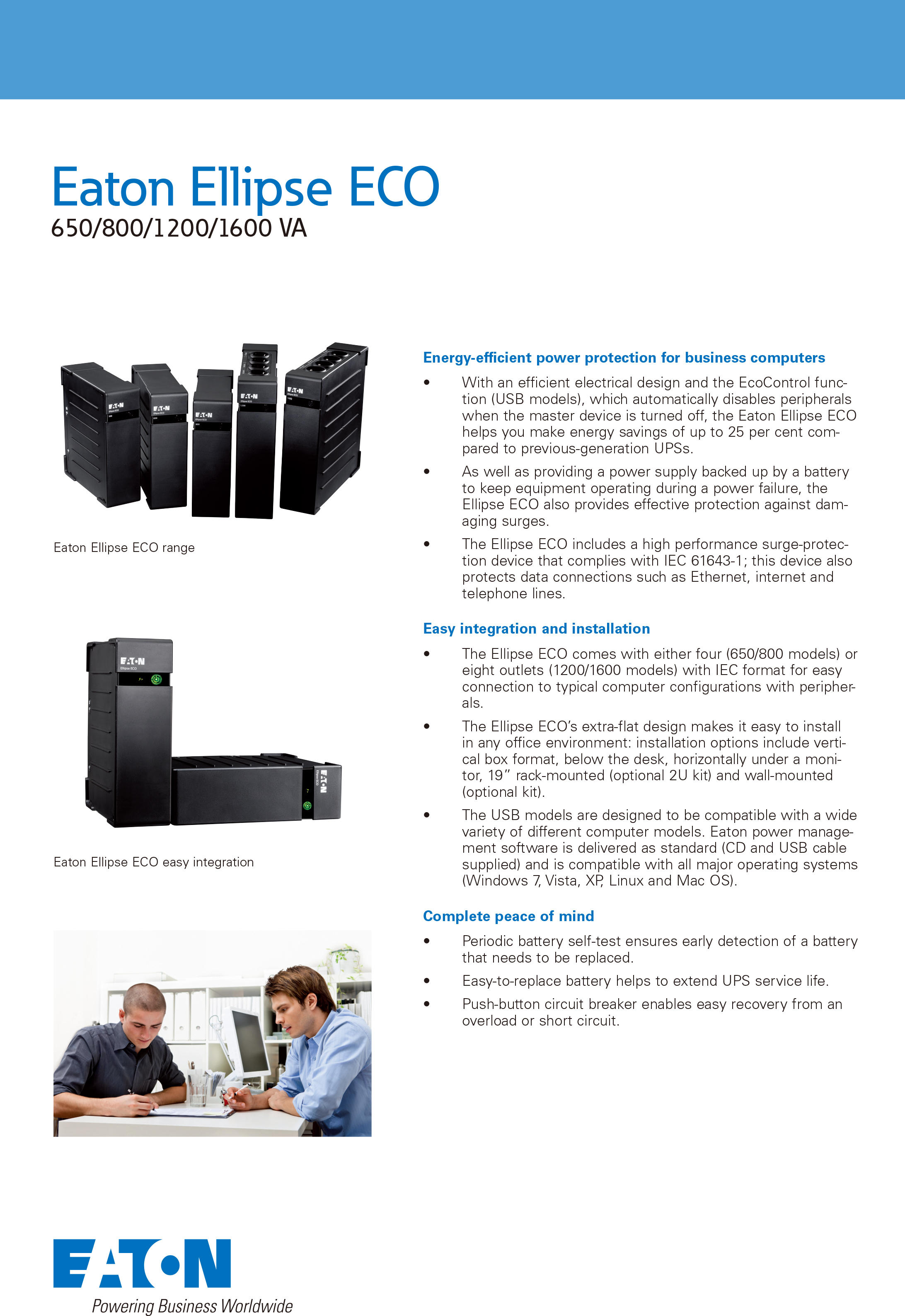

product name | Eaton Elliptical ECO UPS |
catalog number | EL1200USBIEC |
energy level | 1200 VA | 750 Watts |
Rated voltage | 220/230/240 AC voltage |
Installation type | tower |
Topology | Offline |
Input | Output phase | single |
aspect | 305*81*312mm |
Extended battery capacity | No |
Battery Type | Lead-acid maintenance-free (replaceable) |
Communication port | USB port (cable included) |
19” rack mount kit | Elak(2U) |
battery management | Replaceable battery, automatic battery test, deep discharge protection, cold start capability |
software | Comes standard with Eaton smart power supply software (compatible with: Windows 7/Vista/XP, Mac OS X, Linux) |
container | 8 IECs |
Input protection | resettable circuit breaker |
