Charger current: | 15A | Sales unit: | single product |
brand: | OEM production | Warranty: | 1 year and 18 months |
Peak power: | 2000w | start: | slow start |
model: | YB1000UPS | stage: | Simplex |
Input voltage: | 12V/24V | Single package size: | 35X17X13 cm |
type: | support | weight: | 2.6 kg |
rated power: | 1000w | Gross weight per piece: | 3.000 kg |
AC output: | 110V/220V/230V/240V | application: | Air conditioner appliances |
Packaging Details: | Li-ion battery packaging: 1. Color box 2. Design according to customer requirements 3. Eight years of manufacturing and exporting expertise. | Discharge temperature: | -10°C to 60°C |
Output frequency: | 50Hz/60Hz | product name: | inverter charger |
place of origin; place of origin: | Guangdong, China | Protect: | short circuit |

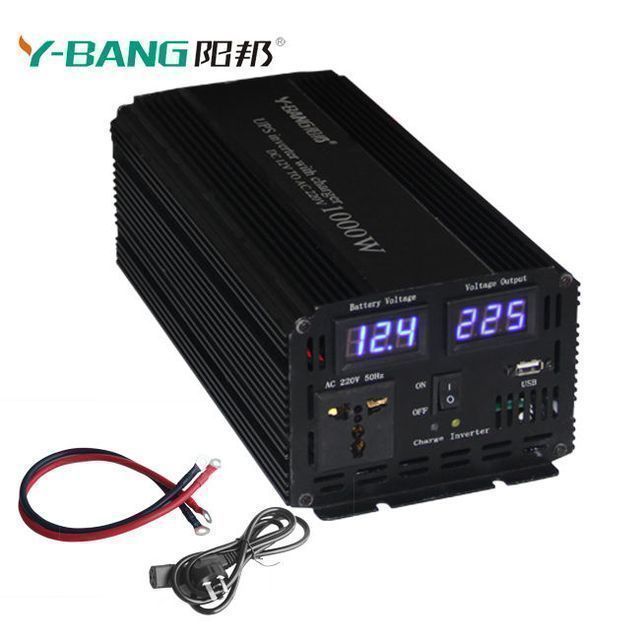

1000w inverter UPS automatic inverter charger ups battery charger modified sine wave inverter charger
Model | 1000W 1500W 2000W 3000W | |
output |
output waveform |
Modified sine wave |
Output frequency |
50Hz±0.1% |
|
The output voltage |
220~240V AC |
|
enter |
Input voltage |
12V DC |
low voltage range |
10.0~15.0VDC |
|
low voltage alarm |
10VDC±0.2VDC |
|
low voltage shutdown |
9.5VDC±0.2VDC |
|
Over voltage alarm |
15.5VDC |
|
Protective function |

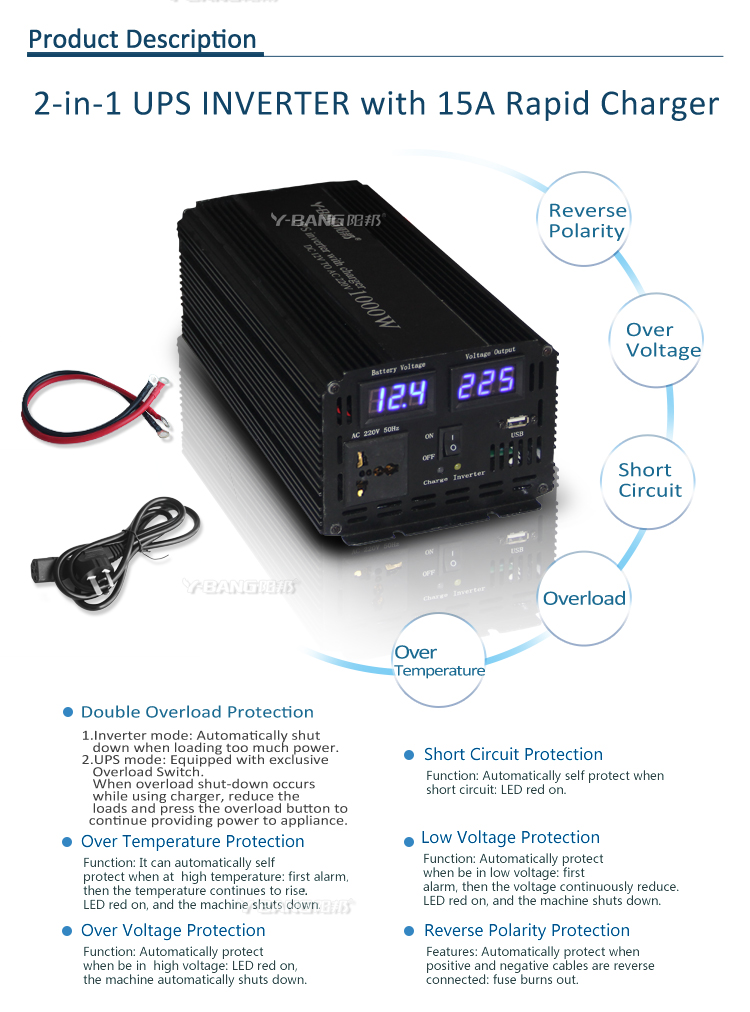

Low voltage alarm/shutdown; overload; overvoltage/temperature shutdown; automatic short circuit shutdown |
|
efficiency |
90% | |
range of working temperature |
-10°C to +50°C |
|
Working Humidity Range |
20%~90%RH non-condensing |
|
storage temperature range |
-10°C to +70°C |
|
Cooling method |
Automatic air cooling |
