port: | Shenzhen/Guangzhou | place of origin; place of origin: | Guangdong, China |
model: | Q650 | payment terms: | L/C, Western Union, D/P, D/A, T/T |
Warranty: | 1 year | Transit time: | <6 milliseconds |

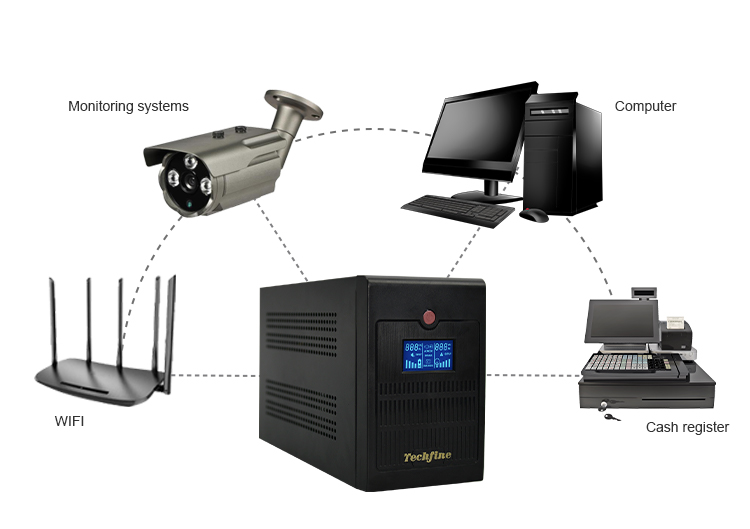

Input voltage range: | 145-280 VAC | application: | computer |
Packaging Details: | Packed in a sturdy kraft paper box. | capacity: | 650VA/360W |
weight: | 4.6 kg | Dimensions (mm): | 335*87*143mm |

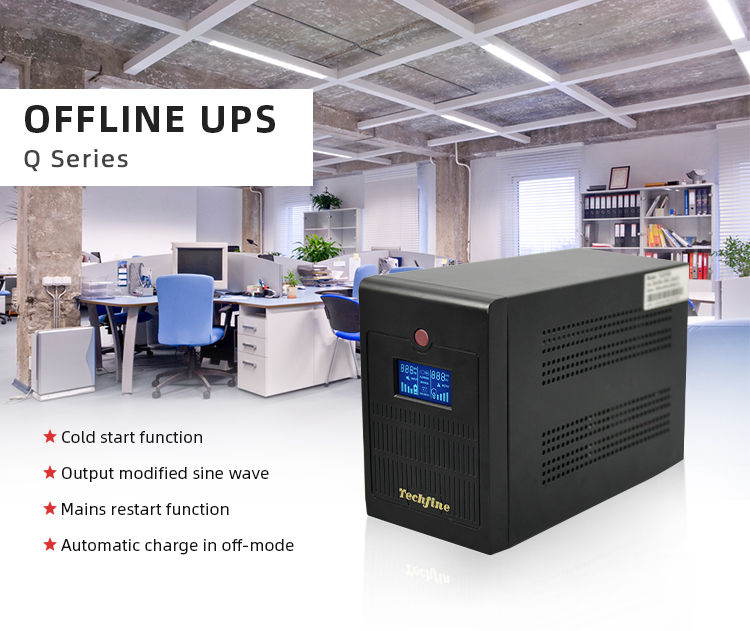

product name: | Offline UPS 650va 800va 1000va 1200va 1500va 2000va | brand: | Technical fine |
Types of: | offline UPS | Protect: | short circuit |
Certification: | International Electrotechnical Commission | type of battery: | Lead-acid maintenance-free battery |
Waveform: | Modified sine wave | Supply capacity: | 6000 pieces per month |
stage: | Simplex |
Model | 650VA | 800VA | 1200VA | 1500VA | 2000VA | ||||
capacity | 650VA/360W | 800VA/480W | 1200VA/720W | 1500VA/900W | 2000VA /1200W | ||||
enter | |||||||||
Voltage | 220VAC | ||||||||
AC power input voltage range | 145-280 VAC (same as AC power supply) | ||||||||
frequency | 50 Hz | ||||||||
output | |||||||||
Voltage Range (Battery Mode) | ±10% | ||||||||
Frequency Range (Battery Mode) | 50 Hz±1 Hz | ||||||||
connecting time | <6ms | ||||||||
Waveform (Battery) | Modified sine wave | ||||||||
Battery | |||||||||
battery type and quantity | 12V7.2Ah×1 | 12V 9Ah x 1 | 12V 7.2Ah x 2 | 12V 9Ah x 2 | 12V 9Ah x 2 | ||||
battery charging time | 6 hours charge to 90% | ||||||||

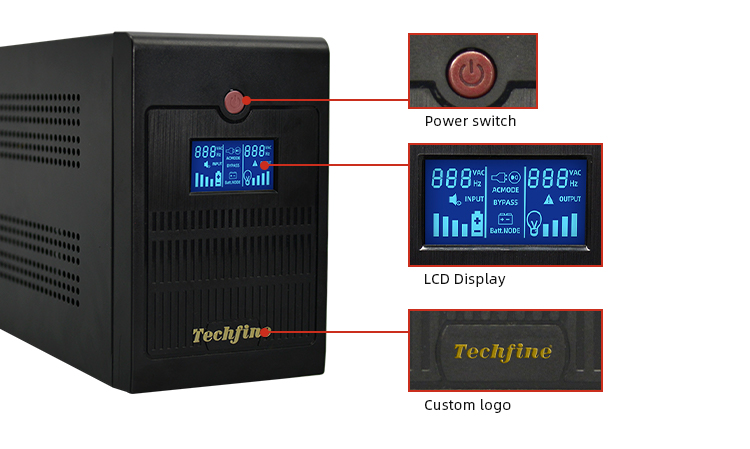

LED indicator | |||||||||
communication mode | green light | ||||||||
battery mode | red light flashing | ||||||||
sound alarm | |||||||||
battery mode | The alarm goes off every six seconds | ||||||||
low power | Alarm beeps every second | ||||||||
overload | Alarm clock beeps twice every second | ||||||||
fault | Sirens keep going | ||||||||
Protective function | |||||||||
full protection | Overload, deep discharge and overcharge protection | ||||||||
environment | |||||||||
temperature and humidity | Relative humidity 0-90%, temperature 0-40°C (non-condensing) | ||||||||
noise | Less than 40dB at a distance of one meter | ||||||||
Body Function | |||||||||
Dimensions (mm) | 335*87*143 | 335*87*143 | 312*122*195 | 360*122*195 | 360*122*195 | ||||
Net weight (kg) | 4.6 | 5 | 8.8 | 11.7 | 13.1 |
