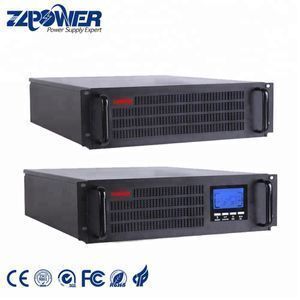

220Vac 2U 3U 19Inch 1Kva2Kva 3Kva 6Kva 10Kva Rack Mount UPS

Product details
Network Surge Protection:RJ45 I/O port available for network or Fax/Modem;Brand Name:ZLPOWER/OEM;
Place of Origin:Guangdong China (Mainland);Input frequency:46~54HZ;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Input Phase:Single Phase with Ground;
Model Number:RM1K--RM10KL;Output Waveform:Pure Sine Wave;
Application:SERVERS,TELECOM,BANK,HOSPITAL,ATM;Packaging Detail:Standard Export Package;
Rated Power:0.7KW~8KW;Operating temperature:0-40 degree;
Type:Rack mount high frequency online UPS;Port:Shenzhen;
Output Voltage:220/230/240VAC;Weight:10-65kgs;
Protection:over voltage, over load, over current, over charge and so on;Communications:RS232 serial interface;Intelligent slot;
Operating humidity:20~90% non-condensing;Nominal Voltage:220/230/240VAC;
Supply Ability:5000 Unit/Units per Month CE, ISO, SGS;Phase:Single Phase;

220Vac 2U 3U 19Inch 1Kva2Kva 3Kva 6Kva 10Kva Rack Mount UPS For Server Room



Applications:

RM Series 1KVA~10KVA Rack mount High frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.



Key Features:

2U/3U Height 19 inch Rack Mount UPS

True online double conversion technology with advanced Microprocessor Control

PWM Technology with IGBTS

LED Indicators display Detailed Real-Time UPS Status and parameters.

Set Output Voltage, Frequency parameter and bypass function on the display.

Advanced MCU microprocessor control technology, ensure long life reliability.

Wide input voltage range, Zero transfer time

Rack mount 19”design to save space

Excellent Protection against over voltage, over load, over current, over charge and so on.

Input L and N lines reverse wiring detection, Auto start when AC back.

DC start function, Input PFC revise function.

Humanization bypass output, can be adjustable.

Smart RS232 communication with monitoring software

Intelligent slot available for AS-400 Dry contact and SNMP card Remote control

Strong antijamming capability

Available to work with generators.

Lightning, surge, short circuit, Network/fax/modem surge protection



Specification:

Rack Mount  UPS ModelRM1KRM1KLRM2KRM2KLRM3KRM3KLRM6KL
Capacity1000VA/700W2000VA/1400W3000VA/2100W6KVA/4200W
InputVoltage(115~300)VAC(176~276)VAC
Frequency46~54Hz/56~64Hz
OutputVoltage220/230/240(1± 1%)VAC
Frequency50/60Hz(Adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz), Battery Mode: 50Hz (1± 0.2%)
60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz), Battery Mode: 60Hz (1± 0.2%)
Output Wave FormPure Sine Wave
Back-up Time (Minute)Full Load≥ 5Depends on the capacity of the external batteries bank≥ 9Depends on the capacity of the external batteries bank≥ 5Depends on the capacity of the external batteries bankDepends on the capacity of the external batteries bank
Half Load≥ 14≥ 21≥ 15
Battery Nominal Voltage36VDC96VDC240VDC
Transfer Time0ms
Overload Capacity110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms105%~130% 10min, over 150%1min
CommunicationsRS-232+Intelligent Slot
Operating EnvironmentTemperature0~40Degree
Humidity15%~90%
Dimensions(W*D*H)mm482.6*450*88482.6*600*130
Net Weight(Kg)16.309.1010.511.511.5012.3019.5

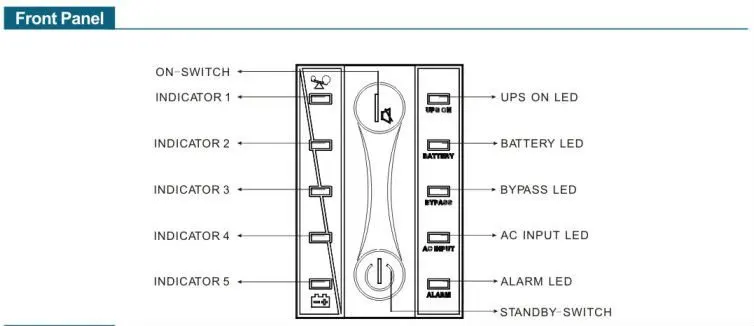

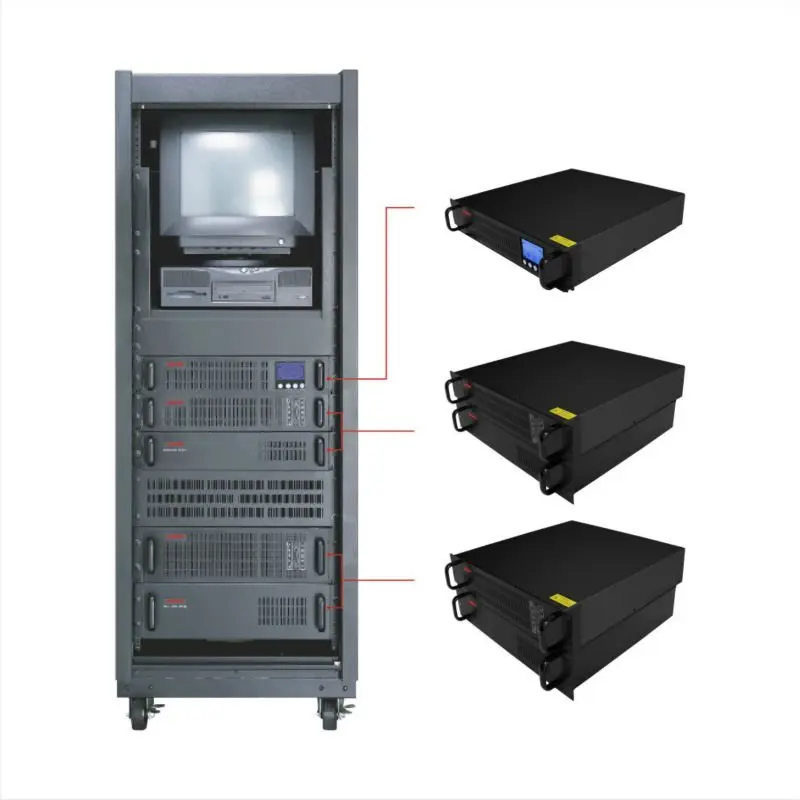

front panel.jpgRack UPS Back Panel.jpg09.jpgRACK002.jpg

HOT Choose
+
3KVA 5KVA hybrid solar power inverter with MPPT solar controller
N+X Parallelable offgrid solar inverter with MPPT 80A 4KVA/5KVA1000VA-2000VA for Pakistan, Home Inverter/Inverex Inverter/UPS with LCD display, Home UPSHigh frequency 3KVA 5KVA hybrid solar power inverter with 80A MPPT solar charge controller
0081KVA~3KVA online UPS1kw~12kw hybrid solar power inverter
IP65 1-10KVA Outdoor UPS1KVA~3KVA high frequency onlinne UPS1KW~12KW hybrid solar power inverter with MPPT solar charge controller,3times peak power

FAQ



Enjoying a presence in worldwide export business for ten years, ZLPOWER has established a comprehensive, excellent and standard customer service system with the concept of "Customer First, Service Forever".

To guarantee the service quality, we have a large group of top-notch professional technicians, 95% of whom are college graduates; in terms of Whole Life technical support for all customers, we have the largest technical training center in Shenzhen for regular training and strict assessment of technicians around the nation; in terms of hardware configuration, we have premium maintenance and testing equipment as well as sufficient spare parts in every branch.

As a user of ZLPOWER, you have the following service:
1. Two years warranty (covering batteries purchased from ZLPOWER)
2. 24-hour helpline; Service helpline: 0086-755-29105850
3. Nationwide warranty
4. Technical support on our website: www.zlpower.com



FAQ:

Q1. How to choose the right Inverter?
1. Understand specifications of all inverter.
2. Consider the requirements of power quality.
3. Understand the current capacity of inverter and consider the future expanding.
4. Choose inverter based on your concrete requirements.

Q2. What are important factors you should consider when buying inverter?
1. inverter’s reliability and stability.
2. The excellent engineers and the ability of products creation.
3. High efficiency and low noise.
4. Supplier’s reputation and financial situation.
5. International safety certificate such as UL, CCC, etc.
6. Plant certifications such as ISO9001, ISO14001, etc.

3. What are the impact of different output waveforms?
A: There are three major types of loads: resistive load (lamps); SPS load (PC power supply) and conductive load (motors).
All the types of load can be used with pure sine wave. However, only resistive and SPS loads can be used with Modified sine wave.
