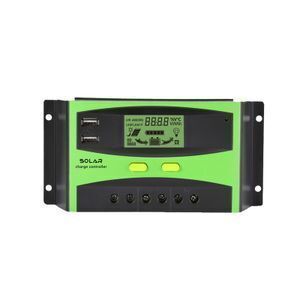

Intelligent Solar Regulator 24V/12V PV system 10A solar charge controller

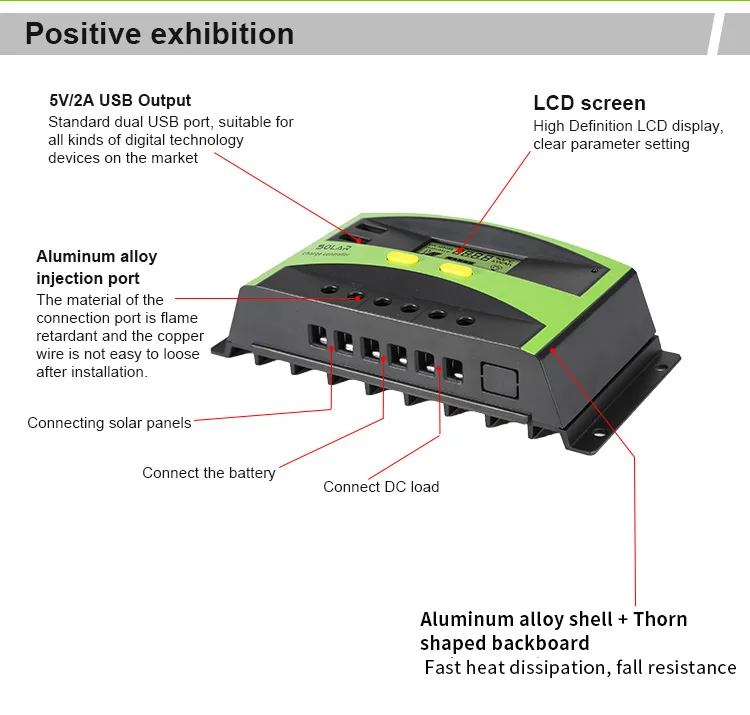

1.Double USB Socket.

2.Aluminum alloy injection port and iron back plate.

3.12V/24V Auto adapt and 48V, small size, easy to operate.

4.LCD, programing parameter.Data memory function.

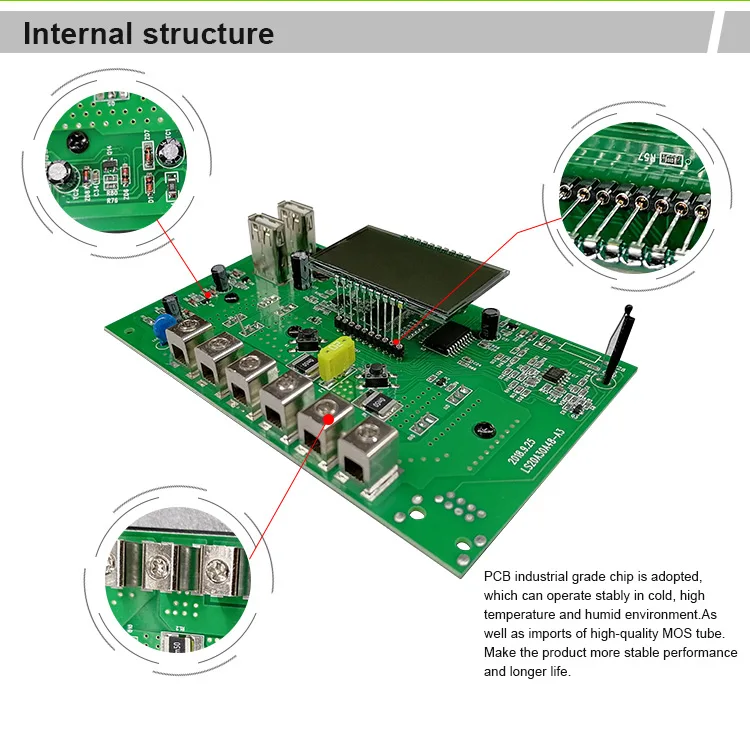

5.Using PCB industrial grade chip, harsh environment adapt.

If you want to know more details,please contact us.

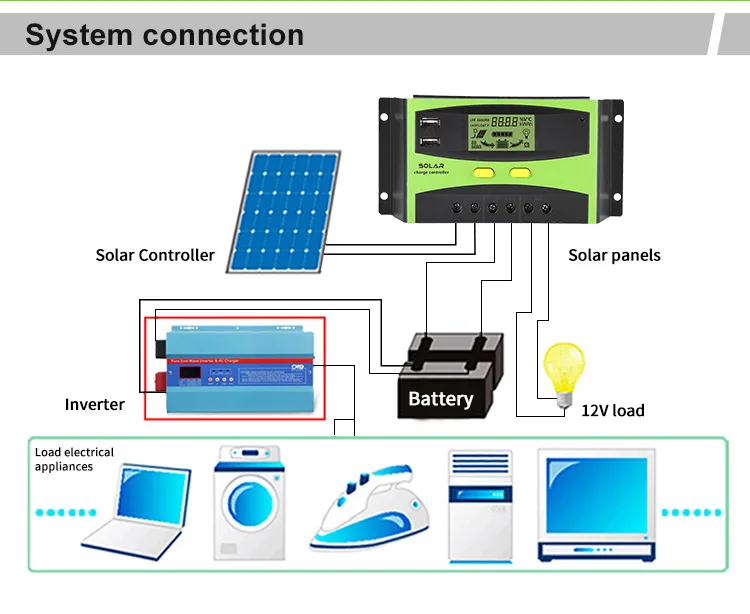

1. Connect the positive and negative poles of the battery into the controller as shown in the figure, and the controller will automatically detect the battery voltage.

2. After the load is closed, connect the positive and negative poles of the load to the controller as shown in the figure, pay attention not to reverse connection, and open the load after connecting.

3. Connect the solar panel to the controller as shown in the figure.

4. Wire removal standard: first remove the solar panel, then the battery, and finally the load.

• The regulator is on suitable for lead acid batteries:OPEN ,AGM ,GEL.It is not suitable for nickel metal hydride,lithium ions or other batteries.
• The charge regulator is only suitable for regulating solar modules.Do not use DC or other power supply as charging source.

  Abnormal phenomena	Reason	Solution
  Sunny but not charged	Open circuit or reverse connection of photovoltaic panels	Reconnect
  Load icon is not on	Mode setting wrong/Battery low	Set again/Recharge
  Load icon slow flashing	over load	Reduce load watt
  Load icon fast flashing	Short circuit protection	Auto reconnect
  Power off	Battery too low reverse	Check battery/connection

If you have any question, please contact us.
