Automatic double-side precision hydraulic cutting machine with mechanical arm

Product details
Stroke:50-240mm;Local Service Location:Malaysia;
After Warranty Service:Video technical support;Rated Power:5.5kw;
Port:guangzhou,shenzhen;Saw Blade Diameter:0.8-1.2MMmmmm -MMmmmm;
After-sales Service Provided:Engineers available to service machinery overseas,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;Applicable Industries:plastic;
Dimensions:3000*2300*1570mm;name:automatic hydraulic cutting machine with mechanical arm;
Certification:CE Certificate;Cutting area:810*1400mm;
Type:Hydraulic Cutting Machine;Power(W):5.5kw;
Brand Name:HONGGANG;Application:Plastic Sheet;
Packaging Detail:plastic cutting machine wooden package or accoridng to customers' erquirement;No-Load Rotational Speed:100%;
Warranty:1 YEAR;Showroom Location:None;
Place of Origin:Guangdong China;Key Selling Points:High Productivity;
Voltage:220V/380V/415V;Supply Ability:50.0 Set/Sets per Month plastic cutting machine;
Max. Cutting Depth:240 mm;status:in stock;
Payment Terms:L/C,T/T,Western Union;suitable for material:plastic blister packaging sheet;
Cutting force:50-300Tons;Condition:New;

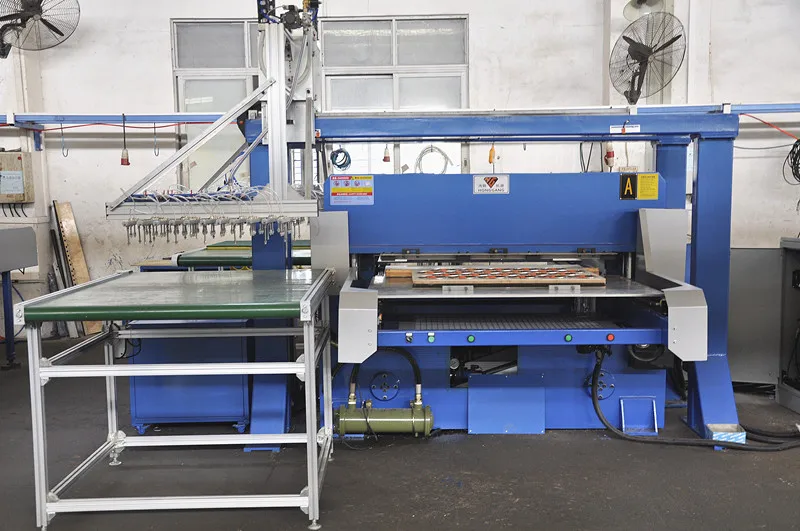

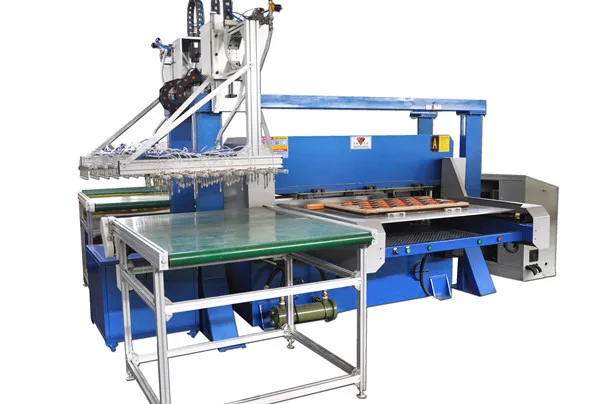

Automatic double-sided precision hydraulic cutting machine with a mechanical arm



Products categories

Why choose us?

1. We are a factory, and the price is favorable.

2. We have strict QC system.

3. We offer a free after-sales service for 1 year.

4. Our engineers are available to service machinery overseas.

5. Our machines have been sold to over 40 countries.



This cutting machine is very popular in our country, it widely used in the plastics industry.

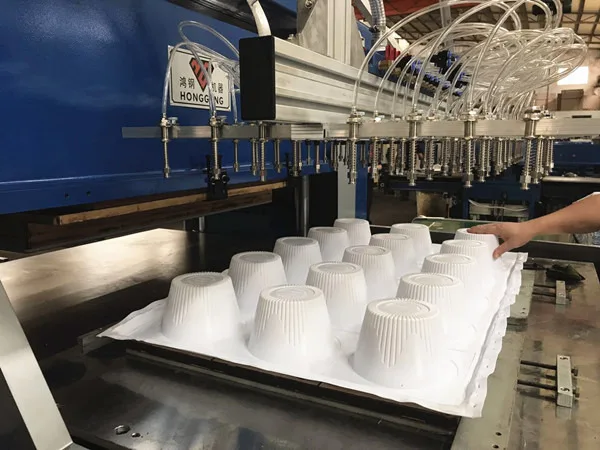

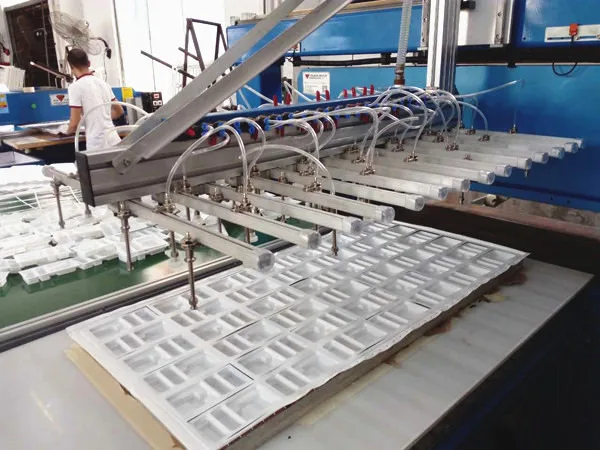

Use for die cutting plastic disposable blister or foam packaging,such as food containers,cup cover,fresh/seafood tray,fruit box, etc.



Customers from all over the world are welcome to make inquiries!

Product Description



special for plastic blister packaging and PS foam products such as disposable food containers, cup cover, fresh/seafood tray, fruit box, etc.





Machine Features


1. Controlled by PLC(Programmable Logic Controller), with touching the screen, to set and micro-adjust working pressure, cutting depth, feeding speed easier, faster, and more precise.


2. Double automatic working tables, increases the output twice or triple.


3. The Auto-balance structure of double-cylinder, four-column, and self-balance connecting rod make sure equal pressure in any working area.


4. Powered by hydraulic system, slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.


5. Central automatic lubrication system, increases machine durability, prolong the working time.

Parameter

Model. No HG-B60T HG-B80T HG-B100T HG-B150T HG-B200T
Cutting force 60tons 80tons 100tons 150tons 200tons

Dimension (L*W*H)

3000*2300*1570

mm

3000*2300*1570

mm

3000*2300*1570

mm

3000*2300*1570

mm

3000*2300*1570

mm

Stroke 50-240mm 50-240mm 50-240mm 50-240mm 50-240mm
Area of Work Table 810*1400mm 810*1400mm 810*1400mm  810*1400mm 810*1400mm
Main Motor Power 5.5KW 7.5KW 7.5KW 11KW 11.5KW

Net

Weight

4500KG 5000KG 5500KG 7000KG 7500KG

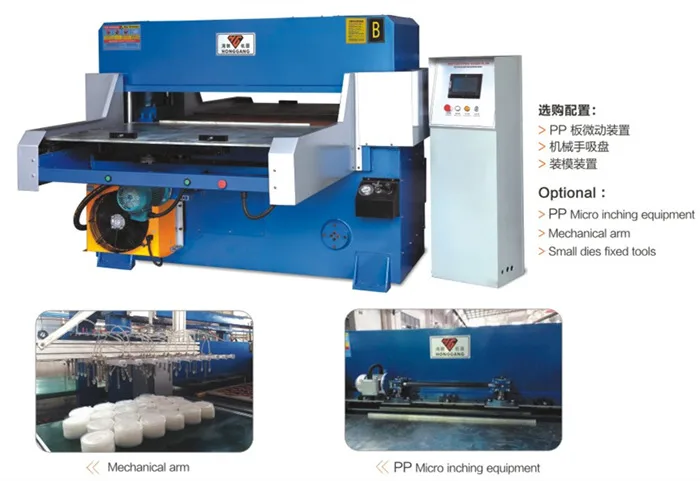

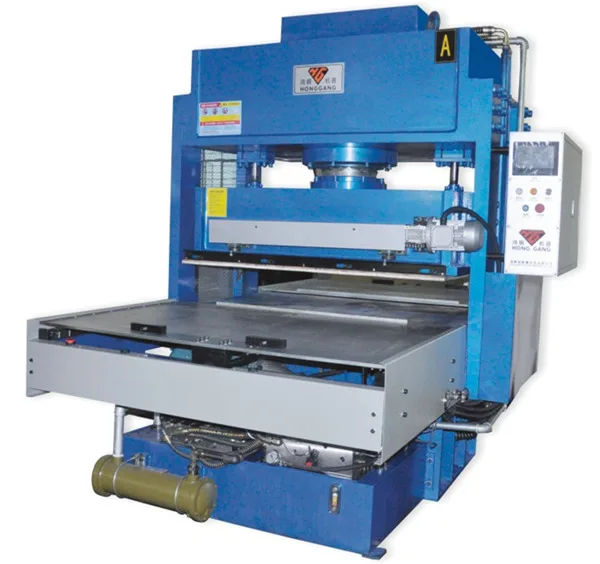

Another style machine:

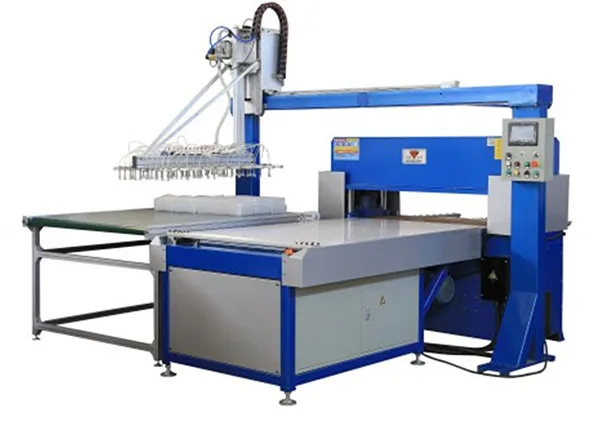

1. Auto continuously feeding hydraulic cutting machine with a mechanical arm





2.Auto double-side hydraulic cutting machine with two mechanical arms





3. Auto multi-layer continuously feeding hydraulic cutting machine



4.Vertical double-side automatic hydraulic cutting machine

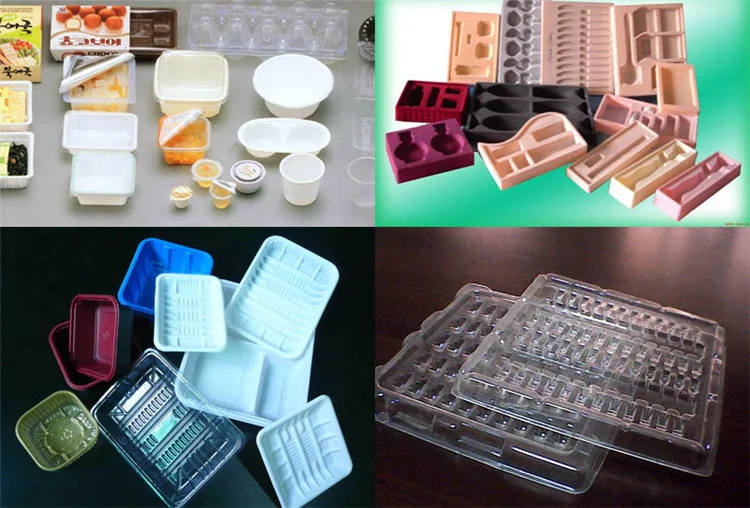

Plate and Sample
