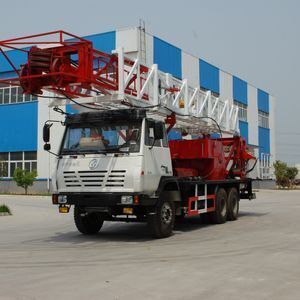

Top quality API oil rig drilling rig equipment Truck Mounted Drilling&Workover Rig

Click here to contact

Product details

Supply Ability:	100.0 Set/Sets per Year;	Showroom Location:	None;
After-sales Service Provided:	Field installation, commissioning and training;	Warranty:	1 YEAR;
Usage:	Oil Well,Oil Well;	Port:	Tianjin;
Packaging Detail:	customized;	Applicable Industries:	Energy & Mining;
Local Service Location:	None;

API XJ 750 Workover Rig

NO	Item	Specification	Description
A:Main Description
A1		Workover depth	3200m(2-7/8″)
		Nominal workover depth	2000m(2-7/8″)
		Hook load rating	400kN
		Max. hook load	675kN
		Rated power	175KW
		Working Height	21m
		Hoisting System	3×4
		Wire Line Dia	Dia 22mm
B:Main Truck
B1	Chasis Description	Frame girder is made of 16 mn steel plate compound special reinforced beam, the front has drag traction ring, respectively. Axle choose wide-track, heavy axle load.
		Drive Type	6 × 4
		Min. clearance(full load)	285mm
		Max. climbing degree	32%
		Max. road speed	78km/h
B4	Subframe
B2	Power Unit	Engine model	WP10.290
		Rated power	213KW
		Max.Torque	1194.0/1400 (N-m)/(rpm)
B3	Hydraulic Transfer Case	Model	9JS119


B4	Mast	Hoisting system	3×4
		Design per API SPEC 4F
		Max.static load	700kN
		Working height	21m
		Angle	5.5°/4.5°
		Wind resistance capacity	110km/h
