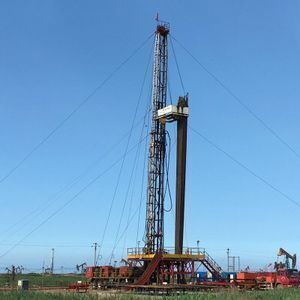

Oilfield API Standard Truck Mounted Drilling&Workover Rig

Product details
Applicable Industries:Farms,Energy & Mining;After-sales Service Provided:Field installation, commissioning and training;
Power Type:Diesel;Supply Ability:100 Set/Sets per Year;
Usage:Oil Well;Warranty:1 Year;
Port:Tianjin;Condition:Used;
Packaging Detail:customized;

 API XJ 750 Workover Rig


NO

Item

Specification

Description



A:Main Description



A1



Workover depth

3200m(2-7/8″)



Nominal workover depth

2000m(2-7/8″)



Hook load rating

400kN



Max. hook load

675kN



Rated power

175KW



Working Height

21m



Hoisting System

3×4



Wire Line Dia

Dia  22mm



 B:Main Truck



B1


Chasis Description

Frame girder is made of 16 mn steel plate compound special reinforced beam, the front has drag traction ring, respectively. Axle choose wide-track, heavy axle load.



 Drive Type

6 × 4




Min. clearance(full load)

285mm




Max. climbing degree

32%



 Max. road speed

78km/h



B4

 Subframe







B2


 Power Unit

Engine model

WP10.290



Rated power

213KW



Max.Torque

1194.0/1400  (N-m)/(rpm)



B3

Hydraulic Transfer Case

  Model

9JS119





B4

Mast

  Hoisting system

3×4



Design per API SPEC 4F



 Max.static load

700kN



Working height

21m



Angle

5.5°/4.5°



Wind resistance capacity

110km/h



Now we have some workover rigs in store,

if you need,welcome to contact me
