Customized KG316T High Current Maximum 60A 50/60Hz 220V DC Customizable Timer Switch

This model is a custom model with a maximum current of 60A

Product Application

Timer Switch can automatically turn on and off the power of various powered devices according to the users setting time.
It can be widely used in automatic chicken coop door, fish feeder, automatic preheating, light box, neon lights, water heater, water dispenser, fans, cell phone chargers, kitchen appliances, radio, television, street lamp, etc.

Product introduction

1.  28 times on and off (day/week)

2.  Timing range :1second~168 hours

3.  Single and Double Countdown Function

4.  Screen can be locked and closed

5.  Work indicator

6.  Reset button

7.  Product built-in welding battery

8.  Screw M3 or 35mm Din rail mounting ( The picture as below )

Specifications:

1. Timing Range: 1 Second ~ 168 Hours
2. Standard Voltage: 220V
3. Contact Capacity: 60A
4. Power Consumption: no more than 2w
5. Internal Battery: 3V CR2450

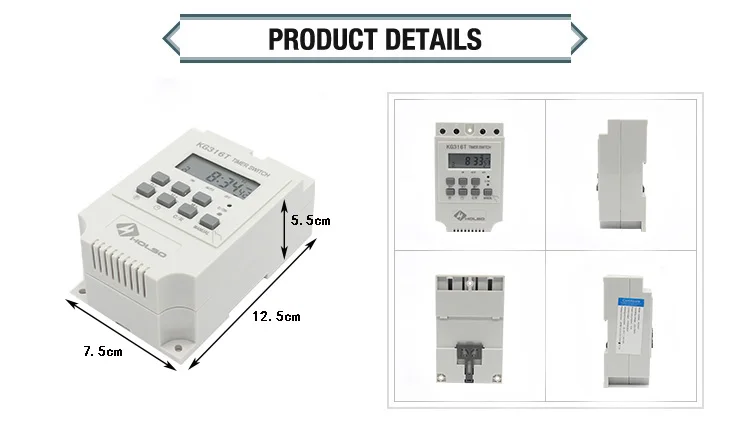

6. Product Dimensions: 12.5cm*7.5cm*5.5cm

7. Operate Temperature: -30℃~ +80 ℃
8. Programmable: 28 times On / Off (week / day)
9. Minimum set time: 1 second

10.  Battery life: 2 years(Lithium battery)

Payment method

BOLETO, mastercard, visa, e-Checking, PAYLATER, T/T,  Paypal etc.

Shipping method

Sample,Express delivery is recommended ,about 7~15days

≥1050pcs, Sea transport is recommended , about 30~45days

Single Product Packaging

1 x Carton
1 x Programmable Timer
1 x User Manual

Packaging Information

 50pcs/carton , Carton size : 42cm*27cm*35cm

Product customization

Standard products :220v ,25A ,50~60Hz

1. We can customize the Current: 60A

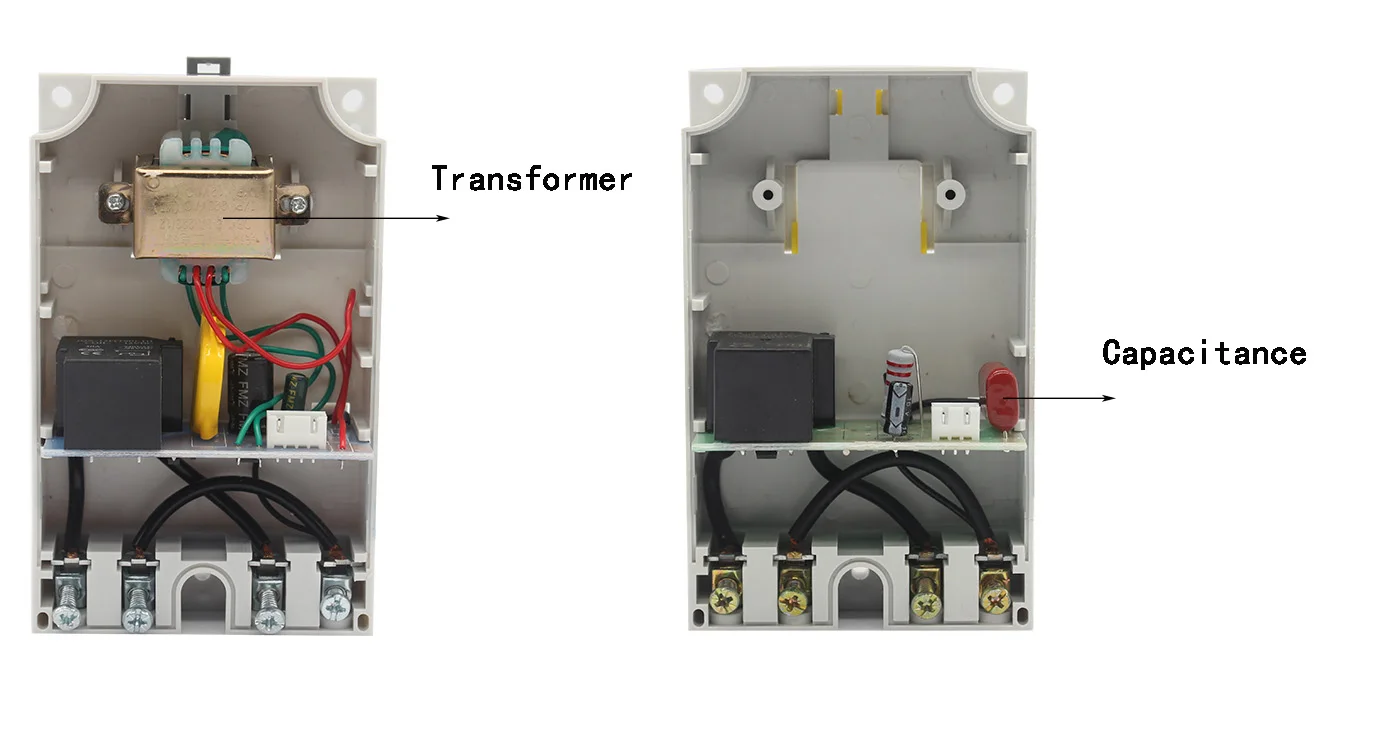

2. Standard products do not include transformers. If you use unstable voltages, we can customize transformers for you.( The picture as below,The left model is transformer.  The right model is normal.)

3.  We can customize LOGO and packaging. Please contact the us.

How to Use Low Current Timer Switch to Control High Current Load

1. MCB Control AC Contactor and Timer Switch Power Supply
2. Timer Switch Controls AC Contactor On and Off
3. AC Contactor Control Load

Note:

1. Select AC contactor according to load.

2. Select MCB according to AC contactor

After-sale service

We offer one-year product quality assurance. If there is any problem with the product, please do not disassemble it. Please contact the us. We have professional technicians to solve the problem for you.

ATTENTION:

1.For those devices (medical equipment and large equipment) due to time error may occur human life or will have a significant impact on the community, please do not use this time switch.

2.The product is in a dormant state when you get, before use please press the reset button.

3.After the power is turned on, do not touch the terminal part .

4.The timer can't be used in moisture, corrosion and high metal content gas environment.

5.For those devices because of timer error may lead to significant property damage (large heater and refrigerator, etc.), when using the timer switch, be sure that the value A and performance characteristics have sufficient margin, and take double circuit security countermeasure.

6.Do not repair by yourself. Repair, inspection, please entrust to the dealer or responsible for the construction of the unit Before installing,please press the yellow spring. When you confirmed the product be put in a suitable place, press back the yellow spring,products can be fixed.

1. What is the MOQ for OEM?

Our MOQ for OEM is 500 pcs.

2. supply ability ?

Normal monthly 50,000pcs, maximum 100,000pcs

3. What is the payment term?

BOLETO, Mastercard, Visa, e-Checking, PAYLATER, T/T

4. How long is the warranty?

We provide one year factory quality warranty.

5. Can I have a sample order?

Of course, we welcome sample order to test and check quality. Mixed samples are acceptable.

6. How to proceed an order?

Firstly ,please let us know your requirements or application.

Secondly ,We quote according to your requirements or our suggestions.

Thirdly , customer confirms the samples and places deposit for formal order.

Fourthly ,We arrange the production.

7. What’s the delivery time and sample time?

Usually the delivery time is 7~30 working days after the order confirmed, if you need the goods urgently, please contact us in advance.

-Sample time is 2-7 working days after received your payment.

8. How about the delivery?

By express: 7~15 days to arrive in your office by express ( FedEx, DHL, TNT, UPS, etc. )

By air: 7~10 days to arrive to your nearest air port

By sea: Around 30~60 days to arrive at specified port by sea
